StarTech.com Thunderbolt 3 to FireWire Adapter - Card & Chassis (bndtb1394b3)
(No reviews yet)
Write a Review
- SKU:
- 18159909
- MPN:
- bndtb1394b3
- Availability:
- Out of stock
- Stock Update:
- 05/10/2023 09:36:38 PM PST
- Stock Update:
- 05/10/2023 09:36:38 PM PST
Description
This item is brand-new, factory sealed.

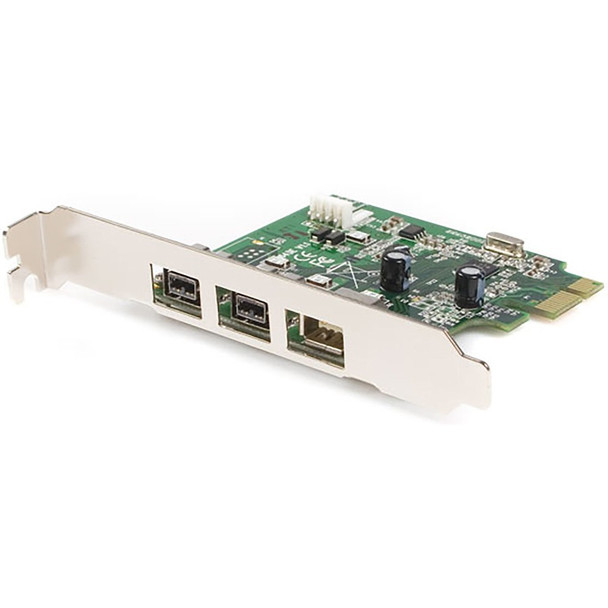

The Thunderbolt 3 to 1394 FireWire adapter connects your FireWire peripherals to your Thunderbolt 3 computer. This adapter combines StarTech.com's Thunderbolt 3 PCIe Expansion Chassis (TB31PCIEX16) and 1394 FireWire adapter card (PEX1394B3). The chassis uses Thunderbolt 3 technology, the fastest connection available, supporting your FireWire® devices, plus one DisplayPort output and one additional Thunderbolt 3 port.Save on upgrade costs
Use your legacy FireWire devices with your next-generation Thunderbolt 3 computer, without having to pay for upgraded peripherals.
Increase productivity with Thunderbolt 3Thunderbolt 3 is the fastest connection available. By avoiding performance bottlenecks, you can accomplish more in the same amount of time. With 40Gbps of throughput and support for other high-performance PCIe cards, you can swap the card in and out, to add the peripherals you need connected to a Thunderbolt 3 desktop or laptop computer.
Install with easeBoth hot-swap and backward compatible, you can assemble and connect this adapter in minutes. Install the PCIe card using only a Phillips type screwdriver, then plug and play with automatic driver installation.
The TB31PCIEX16 is backed by StarTech.com's 2-year warranty.
The PEX1394B3 is backed by StarTech.com's lifetime warranty.
Package Contents:
- Thunderbolt 3 to FireWire Adapter - Card & Chassis
- AC Adapter
Features
Package Contents:
Yes
- Thunderbolt 3 to FireWire Adapter - Card & Chassis
- AC Adapter
Environmental Certification:
RoHS
WEEE
Additional Information:
- Connector Type(s): 1 - PCI Express x1
- Internal Ports: 1 - PCI Express x16; 1 - LP4 (4 pin; Large Drive Power)
- External Ports: 1 - FireWire 400 (6 pin, IEEE 1394a); 2 - FireWire 800 (9 pin, IEEE 1394b); 2 - Thunderbolt™ 3 USB-C (24-pin) (40Gbps); 1 - DisplayPort (20 pin)
- Fan(s): Yes
- Fans: 1 - 92 mm
- Ports: 6
- Air Flow Rate: 14.06 CFM
- Noise Level: 24.55 dB
- Interface: Thunderbolt; FireWire 800 (1394b); FireWire 400 (1394a)
- Bus Type: Thunderbolt 3; PCI Express
- Card Type: Standard Profile
- Industry Standards: Thunderbolt 3; IEEE-1394/1394A/1394B; OHCI;PCI Express 1.1
- Fan Bearing Type: Sleeve Bearing
- Chipset ID: Intel - Alpine Ridge DSL6540 (Thunderbolt Chassis) Texas Instruments - XIO2213B (Firewire card)
Environmentally Friendly:
Yes
Application/Usage:
Desktop
Laptop
Certification:
- CE
- FCC
Specs
| Power Description | |
| Power Plug Type | Type N |
| Power Source Type | Power Adapter |
| Physical Characteristics | |
| Product Material |
|
| Weight (Approximate) | 3.75 lb |
| Length | 11" |
| Product Color | Black |
| Height | 3.2" |
| Width | 5.6" |
| Warranty | |
| Limited Warranty | 2 Year |
| Interfaces/Ports | |
| Host Interface | Thunderbolt 3 |
| DisplayPorts Quantity | 1 |
| General Information | |
| Brand Name | StarTech.com |
| Manufacturer Website Address | http://www.startech.com |
| Marketing Information | The Thunderbolt 3 to 1394 FireWire adapter connects your FireWire peripherals to your Thunderbolt 3 computer. This adapter combines StarTech.com's Thunderbolt 3 PCIe Expansion Chassis (TB31PCIEX16) and 1394 FireWire adapter card (PEX1394B3). The chassis uses Thunderbolt 3 technology, the fastest connection available, supporting your FireWire® devices, plus one DisplayPort output and one additional Thunderbolt 3 port. Save on upgrade costs Use your legacy FireWire devices with your next-generation Thunderbolt 3 computer, without having to pay for upgraded peripherals. Increase productivity with Thunderbolt 3 Thunderbolt 3 is the fastest connection available. By avoiding performance bottlenecks, you can accomplish more in the same amount of time. With 40Gbps of throughput and support for other high-performance PCIe cards, you can swap the card in and out, to add the peripherals you need connected to a Thunderbolt 3 desktop or laptop computer. Install with ease Both hot-swap and backward compatible, you can assemble and connect this adapter in minutes. Install the PCIe card using only a Phillips type screwdriver, then plug and play with automatic driver installation. The TB31PCIEX16 is backed by StarTech.com's 2-year warranty. The PEX1394B3 is backed by StarTech.com's lifetime warranty. |
| Product Type | Expansion Chassis |
| Product Name | Thunderbolt 3 to FireWire Adapter - Card & Chassis |
| Manufacturer | StarTech.com |
| Manufacturer Part Number | BNDTB1394B3 |
| Technical Information | |
| Connectivity Technology | Wired |
Warranty Information
All Items are Brand New, Factory Sealed and come with a standard warranty. [Read our policies]
