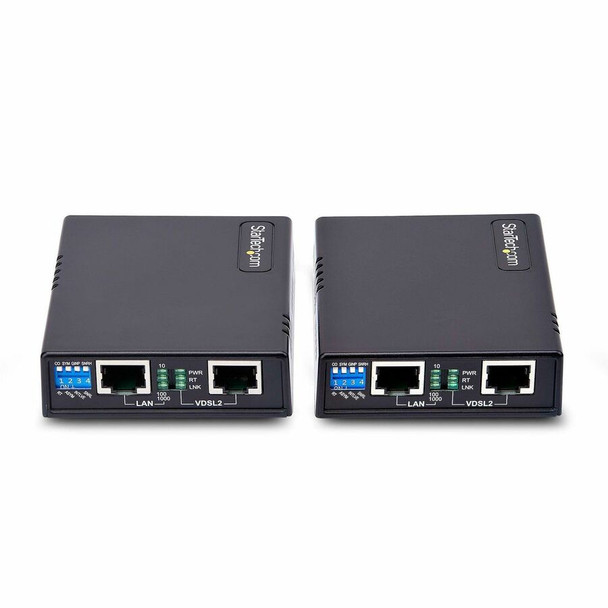

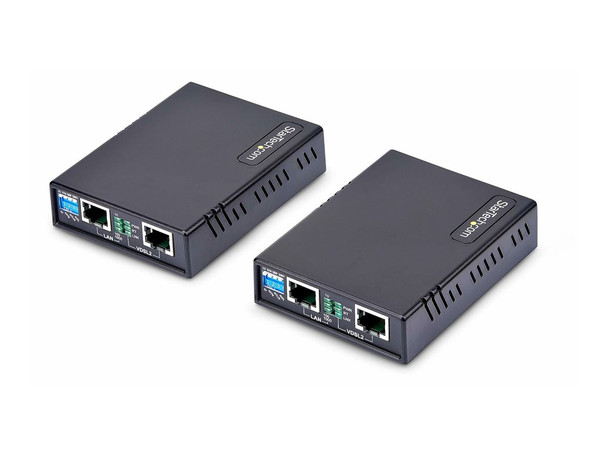

StarTech.com VDSL2 Ethernet Extender Kit, Network Extension Up to 0.6mi [1km], Long Range LAN Repeater over RJ11/CAT5e/CAT6, Up to 300Mbps (vdsl-lan-extender-1g)
- SKU:
- 20686394
- MPN:
- vdsl-lan-extender-1g
- Availability:
- Usually ships in 1-2 business days. In stock at our CA, PA warehouses.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 12/30/2025 07:09:05 AM PST
Bulk discount rates
Below are the available bulk discount rates for each individual item when you purchase a certain amount
| Buy 3 or above | and pay only $490.78 each 490.78 |
- Stock Update:
- 12/30/2025 07:09:05 AM PST
Description
This item is brand-new, factory sealed.
Extend a network over VDSL2, using Cat5e (or better) UTP Cabling or Single-Pair (or better) Telephone Wire at distances up to 0.6mi (1km).
Extend Network Connectivity
Extend a network over VDSL2 using UTP, CAT5e/6 or RJ11 cabling over distances up to 0.6mi (1km). Speeds of up to 300 Mbps (aggregated) are available at shorter distances. Supports VDSL2 35b/30a/17a and features ITU-T G.993.5 G.Vectoring and G.INP technologies.
Thoughtful Design
The installation can be customized by using DIP switches. Choose between Master or Remote mode, Symmetric or Asymmetric mode, G.INP or Interleave mode, and fine-tune SNR with High and Low options for optimal performance. The Gigabit Ethernet Extender has LEDs that provide a visual indication of network status, including LAN speed, link status, power, and remote/master mode, allowing IT administrators to monitor and assess network connectivity.
Versatile Applications
The Long-Range LAN Extender can be mounted on a wall, using the included hardware, or installed on a shelf or other surface. The kit includes two power adapters, one for each VDSL Extender. The extender works with third-party VDSL2 IP DSLAMs in CPE (RT) mode and extends the network for applications such as remote office or branch locations or IP-based video solutions. The 802.1Q VLAN tag transparency preserves VLAN-tagged traffic across the extension.
Package Contents:
- 2 x VDSL Extender
- 2 x Mounting Bracket Kits
- 2 x Power Supply
- 1 x Quick-Start Guide
Features
- 2 x VDSL Extender
- 2 x Mounting Bracket Kits
- 2 x Power Supply
- 1 x Quick-Start Guide
TAA Compliant:
Yes
Specs
| Power Description | |
| Input Voltage | 230 V AC |
| Physical Characteristics | |
| Product Material | Plastic |
| Length | 3.8" |
| Product Color | Black |
| Height | 0.9" |
| Color Family | Black |
| Width | 2.9" |
| Warranty | |
| Limited Warranty | 2 Year |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 4 |
| General Information | |
| Brand Name | StarTech.com |
| Manufacturer Website Address | http://www.startech.com |
| Marketing Information | Extend a network over VDSL2, using Cat5e (or better) UTP Cabling or Single-Pair (or better) Telephone Wire at distances up to 0.6mi (1km). Extend Network Connectivity Extend a network over VDSL2 using UTP, CAT5e/6 or RJ11 cabling over distances up to 0.6mi (1km). Speeds of up to 300 Mbps (aggregated) are available at shorter distances. Supports VDSL2 35b/30a/17a and features ITU-T G.993.5 G.Vectoring and G.INP technologies. Thoughtful Design The installation can be customized by using DIP switches. Choose between Master or Remote mode, Symmetric or Asymmetric mode, G.INP or Interleave mode, and fine-tune SNR with High and Low options for optimal performance. The Gigabit Ethernet Extender has LEDs that provide a visual indication of network status, including LAN speed, link status, power, and remote/master mode, allowing IT administrators to monitor and assess network connectivity. Versatile Applications The Long-Range LAN Extender can be mounted on a wall, using the included hardware, or installed on a shelf or other surface. The kit includes two power adapters, one for each VDSL Extender. The extender works with third-party VDSL2 IP DSLAMs in CPE (RT) mode and extends the network for applications such as remote office or branch locations or IP-based video solutions. The 802.1Q VLAN tag transparency preserves VLAN-tagged traffic across the extension. |
| Product Type | Network Extender |
| Product Name | Network Extender |
| Manufacturer | StarTech.com |
| Manufacturer Part Number | VDSLLANEXTENDER1G |
| Packaged Quantity | 1 |
| Technical Information | |
| Maximum Data Transfer Rate | 37.50 MB/s |
| Maximum Extended Range | 3280.84 ft |
