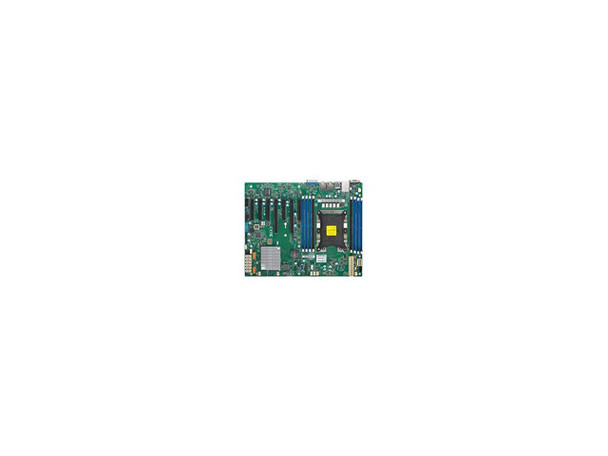

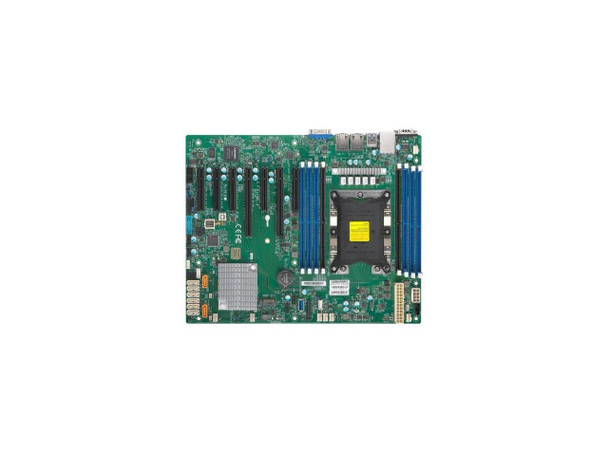

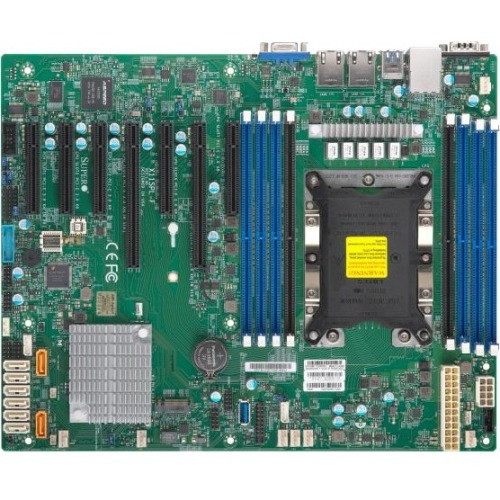

Supermicro X11SPL-F Server Motherboard - Intel C621 Chipset - Socket P LGA-3647 (MBDX11SPLFB)

This item is brand-new, factory sealed.

1. Intel Xeon Processor Scalable Family, Single Socket P (LGA 3647) supported, CPU TDP support 165W

2. Intel C621 Chipset

3. Up to 1TB ECC 3DS LRDIMM, up to DDR4-2666MHz; 8x DIMM slots

4. Expansion slots:

2 PCI-E 3.0 x8 (in x16),

4 PCI-E 3.0 x8,

1 PCI-E 3.0 x4 (in x8)

5. 2 GbE LAN ports

6. 8 SATA3 (6Gbps) ports

7. I/O: 1 VGA, 2 COM, TPM header

8. 2 SuperDOM with built-in power

9. 5 USB 3.0 (2 rear, 1 Type-A, 2 via header), 8 USB 2.0 (2 rear, 6 via headers)

10. M.2 NGFF connector
Form Factor
ATXCPU
Intel Xeon Processor Scalable Family.
Single Socket P (LGA 3647) supported, CPU TDP support 165WCores / Cache
Up to 28 coresMemory Capacity
8x 288-pin DDR4 DIMM slots
Up to 1TB ECC 3DS LRDIMM
Up to 512GB ECC LRDIMM
Up to 256GB ECC RDIMMMemory Type
2666/2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit 288-pin RDIMM/LRDIMMDIMM Sizes
RDIMM: 4GB, 8GB, 16GB, 32GB
LRDIMM: 32GB, 64GB
3DS LRDIMM: 64GB, 128GBMemory Voltage
1.2VError Detection
Corrects single-bit errorsChipset
Intel C621SATA
Intel C621 controller for 8 SATA3 (6 Gbps) ports RAID 0,1,5,10IPMI
ASPEED AST2500Network Controllers
Dual LAN with 1GbE with Intel I210Graphics
Aspeed AST2500 BMCUSB
8 USB 2.0 ports (2 rear + 6 via header(s)),
5 USB 3.0 ports (2 rear + 2 via header(s) + 1 Type A)Video Output
1 VGA port(s)Serial Port / Header
2 COM Ports (1 rear, 1 header(s))TPM
TPM HeaderPCI-E
2 PCI-E 3.0 x8 (in x16 slot),
4 PCI-E 3.0 x8,
1 PCI-E 3.0 x4 (in x8 slot)M.2
Interface: PCIe 3.0 x4 and SATA
Form Factor: 2280, 22110BIOS Type
AMI UEFI
