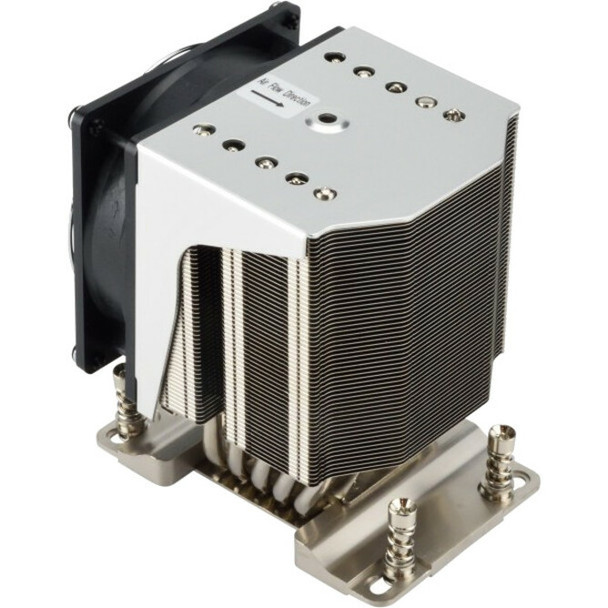

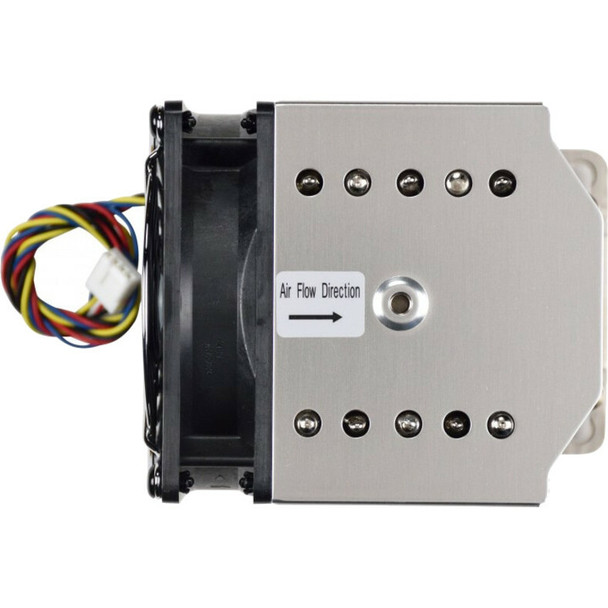

Supermicro 4U Active CPU Heat Sink Socket OLGA4094 -3800 rpm - Ball Bearing (SNKP0064AP4)
(No reviews yet)
Write a Review
- SKU:
- 18010909
- MPN:
- 212075
- Availability:
- Usually ships the same or next business day. In stock at our CA warehouse.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 12/18/2025 06:29:26 PM PST
Bulk discount rates
Below are the available bulk discount rates for each individual item when you purchase a certain amount
| Buy 2 or above | and pay only $87.64 each 87.64 |
- Stock Update:
- 12/18/2025 06:29:26 PM PST
Description
This item is brand-new, factory sealed.
This CPU heat sink is designed for Supermicro H11 generation 4U servers and workstations equipped with AMD EPYC 7000 series processors. The heat sink has been fully tested and validated by Supermicro to ensure the best quality and cooling performance.4U Active CPU Heat Sink
AMD EPYC 7000 Series Processors
Socket OLGA4094 (Socket SP3)
Supermicro Certified
Server Form Factor
4UCooling Type
ActiveCPU Configuration
Uni Processor, Dual ProcessorSupported CPU SKU
AMD EPYC 7000 SeriesSupported CPU Socket
OLGA4094 (Socket SP3)Supported CPU TDP
Up to 180 WattsAttached Cooling Fan
Speed Control: 4-pin PWM
Rated Voltage: 12.0 VDC
Rated Speed: 3,800 RPM
Acoustic Noise: 38.0 dB(A) at Rated Speed
Fan Dimensions: 92L x 92H x 25D mm
Position: Front Side
MTBF/MTTF: 108,798 Hours at 40 C AmbientProduct Environmental Compliance
RoHS and REACH compliant, details available upon requestItem Dimension ( L inch x W inch x H inch)
NAWeight
1.00 lbWarranty Information
1 Year
Features
Environmentally Friendly:
Yes
United States
Yes
Application/Usage:
Server
Processor
Workstation
Compatibility:
- AMD EPYC 7000 Series Processors
- Supermicro H11 Generation 4U Servers
Environmental Compliance:
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Restriction of Hazardous Substances (RoHS)
Country of Origin:
United States
Specs
| Physical Characteristics | |
| Product Material | Aluminum |
| Fan Width | 3.62" |
| Fan Depth | 0.98" |
| Height | 5" |
| Fan Height | 3.62" |
| Width | 3.6" |
| Depth | 4.7" |
| Warranty | |
| Limited Warranty | 1 Year |
| Interfaces/Ports | |
| Connectors | 4-pin PWM |
| Fan Information | |
| Fan Bearing Type | Ball Bearing |
| Maximum Airflow | 63.90 CFM |
| Fan Speed (Max) | 3800 rpm |
| Noise Levels (A-Weighted) | 38 dB(A) |
| General Information | |
| Brand Name | Supermicro |
| Manufacturer Website Address | http://www.supermicro.com |
| Marketing Information | This CPU heat sink is designed for Supermicro H11 generation 4U servers and workstations equipped with AMD EPYC™ 7000 series processors. The heat sink has been fully tested and validated by Supermicro to ensure the best quality and cooling performance. |
| Product Type | Cooling Fan/Heatsink |
| Product Name | 4U Active CPU Heat Sink Socket OLGA4094 |
| Manufacturer | Supermicro Computer, Inc |
| Manufacturer Part Number | SNK-P0064AP4 |
| Heatsink Information | |
| Compatible AMD Socket | SP3 |
