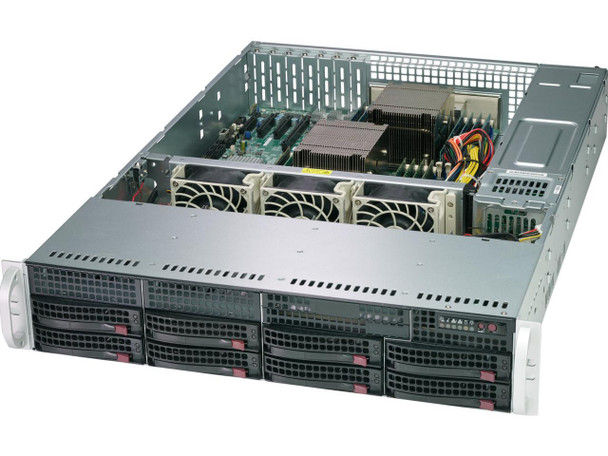

Supermicro CSE825TQCR802LPB 2U Rackmount Server Chassis 8-Bay 800W Power Supply

This item is brand-new, factory sealed.

Key Features

1.2U chassis supports for maximum motherboard sizes - 13.68" x 13", E-ATX 12" x 13", ATX 12" x 10" motherboards

2.8 x 3.5" hot-swap SAS3/SATA drive bay, 2 x 3.5" fixed drive bay

3.8-port 2U SAS3 12Gbps TQ backplane, support up to 8x 3.5-inch SAS3/SATA3 HDD/SSD

4.1U 800W Redundant Power Supply 76mm width, W/PMbus, Titanium

5.7 low-profile expansion slot(s)

6.3 x 80mm Hot-swap PWM Fans
Form Factor
2U chassis supports for maximum motherboard sizes - 13.68" x 13", E-ATX 12" x 13", ATX 12" x 10" motherboardsProcessor Support
Dual and Single Intel and AMD processorsAvailable Color
BlackExpansion Slots
7 low-profile expansion slot(s)Drive Bays
8 x 3.5" hot-swap SAS3/SATA drive bay
2 x 3.5" fixed drive bayBackplane
8-port 2U SAS3 12Gbps TQ backplane, support up to 8x 3.5-inch SAS3/SATA3 HDD/SSDPeripheral Drives
Optional 1 x slim DVD-ROM drive bay
Optional 2 x USB 2.0 ports
Optional 1 x COM port tray
Optional 2 x USB 3.0 portsFront Panel
Buttons
Power On/Off button
System Reset Button
LEDs
2 Network Activity LEDs
HDD activity LED
Power Status LED
Power Fail LED
System Information LEDSystems Cooling
Fans
3 x 80mm Hot-swap PWM FansSystem Monitoring
Chassis intrusion switchOperating Environment (System)
Operating Temperature Range
5^oC - 35^oC (41^oF - 95^oF)
Non-Operating Temperature Range
-40^oC - 70^oC (-40^oF - 158^oF)
Operating Relative Humidity Range
8% - 90% (non-condensing)
Non-Operating Relative Humidity Range
5% - 95% (non-condensing)Power Supply
1U 800W Redundant Power Supply 76mm width, W/PMbus, Titanium
Power Efficiency
96%
Total Output Power and Input
800W with Input 100 - 240Vac
800W with Input 200 - 240Vdc
AC Input Frequency
50-60Hz
Dimensions (L x W x H)
336 x 76 x 40 mm
Output Type
Backplanes (gold finger)
+12V
Max: 66A (100Vac - 240Vac)
Max: 66A (200 - 240)
+5Vsb
Max: 4A / Min: 0A
Power Distributor
PDB-PT825-8824
O/P: 12V/75
+5V Max: 30
+3.3V Max: 24
-12V Max: 0.6
Certification
Titanium Certified Titanium CertifiedRegulatory (Power Supply)
Power Supply Safety / EMC BSMI
CCC
CE/EMC
FCC class A
TUV/CB
UL/CULItem Dimension (L"xW"xH")
35 x 27 x 12

Weight
82 lbs

Warranty Information
1 Year
