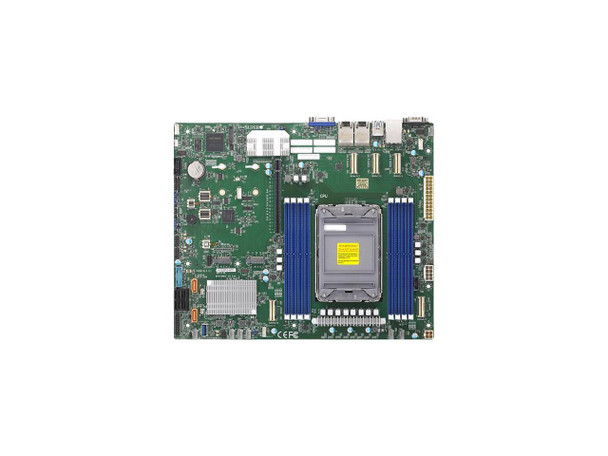

Supermicro X12SPO-NTF Server Motherboard - Intel C621A Chipset - Socket LGA-4189 - Intel Optane Memory Ready - ATX (246644)

This item is brand-new, factory sealed.

3rd Gen Intel Xeon Scalable processors, Single Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP

Intel C621A

Up to 2TB 3DS ECC RDIMM, DDR4-3200MHz; Up to 2TB 3DS ECC LRDIMM, DDR4-3200MHz

Up to 2TB Intel Optane Persistent Memory, in 8 DIMM slots

1 PCI-E 4.0 x16,

5 PCI-E 4.0 NVMe x8 Internal Port(s)

M.2 Interface: 2 SATA/PCI-E 3.0 x4

M.2 Form Factor: 2280/22110

M.2 Key: M-Key

Intel C621A controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10

Dual LAN with Intel X550 10GBase-T Ethernet Controller

Supports 10x NVMe drives via SlimSAS connectors Form Factor
ATX Processor
CPU
3rd Gen Intel Xeon Scalable processors
Single Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP
Core
Up to 40 cores System Memory
Memory Capacity
8 DIMM slots
Up to 2TB Intel Optane^TM Persistent Memory 200 Series
Up to 2TB 3DS ECC LRDIMM, DDR4-3200MHz, Up to 2TB 3DS ECC RDIMM, DDR4-3200MHz Memory Type
3200/2933/2666MHz ECC , DDR4 LRDIMM (3DS), RDIMM (3DS) DIMM Sizes
8GB, 16GB, 32GB, 64GB, 128GB, 256GB Memory Voltage
1.2V Error Detection
Corrects single-bit errors On-Board Devices
Chipset
Intel C621A SATA
Intel C621A controller for 10 SATA3 (6 Gbps) ports, RAID 0,1,5,10 IPMI
ASPEED AST2600 BMC Graphics
ASPEED AST2600 BMC Network Controllers
Dual LAN with Intel X550 10GBase-T Ethernet Controller Input / Output
SATA
10 SATA3 (6Gbps) port(s) LAN
2 RJ45 10 Gigabit Ethernet LAN ports USB
6 USB 2.0 port(s) (4 via header, 2 rear)
5 USB 3.2 Gen1 port(s) (2 via header, 2 rear, 1 type A) Video Output
1 VGA port(s) Serial Port
2 COM Port(s) (1 header, 1 rear) DOM
2 SATA DOM (Disk on Module) power connector support TPM
1 TPM Header Expansion Slots
PCI-E
1 PCI-E 4.0 x16
M.2
M.2 Interface: 2 SATA/PCI-E 3.0 x4
Form Factor: 2280/22110
Key: M-Key
