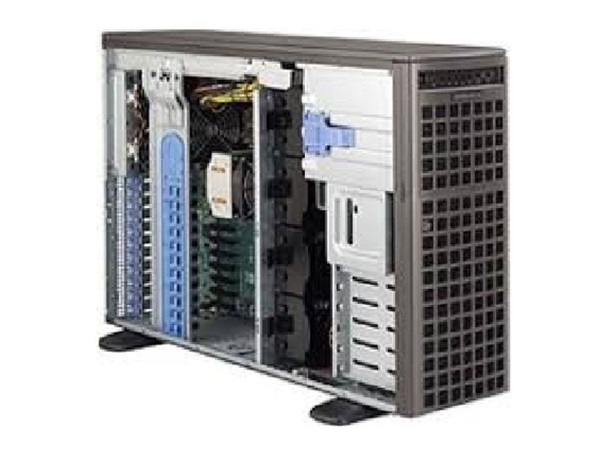

Supermicro 249965 Cs Cse-747btq-r2k04b 4u 8x3.5 Sas Sata Hot-swappable 2000w

This item is brand-new, factory sealed.

Key Features

1. 8x 3.5" SAS/SATA Backplane for Hot-Swappable Drives (Support SES2)

2. 11x Full-Height, Full-Length Expansion Slots Optimized for 4x Double Width GPU Solution

3. Front HDD Door Lock & Side Panel Intrusion Switch

4. Front I/O Ports: 2x USB 3.0

5. (2x) Rear Additional 80mm PWM Fans & (4x) Middle Lower 92mm PWM Fans

6. 4U / Full Tower Chassis Supports max. Motherboard, Sizes ? E-ATX 15.2? x 13.2?/ ATX/Micro ATX

7. 2000W Redundant Titanium Level Certified High-Efficiency Power Supply

8. 3x 5.25" External HDD Drive Bays & 8x 3.5? Hot-Swappable HDD Drives
Form Factor
4U tower/rachmount chassis - supports for maximum motherboard sizes: 15.2" x 13.2" Processor Support
Single and Dual Intel / AMD processorsAvailable Color
Black Expansion Slots
11 full-height and full-length expansion slot(s) Drive Bays
8 x 3.5" hot-swap SAS/SATA drive bay with SGPIO Backplane
8-port Tower/4U TQ (W/ AMI 9072) backplance, support up to 8x 3.5-inch SAS/SATA HDD/SSD Peripheral Drives
1 x 90 degree rotatable drive cage
3 x standard 5.25" drive bay
1 x 3.5" internal fixed drive bay
Front Panel
Buttons
Power On/Off button
LEDs
2 Network Activity LEDs
Ports
2x USB 3.0 Port(s)
2x Audio Jack(s)
Systems Cooling
Fans
2 x 80mm Hot-swap PWM Fans
4 x 92mm hot-swap fan(s)
Operating Environment (System)
Operating Temperature Range
5^oC - 35^oC (41^oF - 95^oF)
Non-Operating Temperature Range
-40^oC - 70^oC (-40^oF - 158^oF)
Operating Relative Humidity Range
8% - 90% (non-condensing)
Non-Operating Relative Humidity Range
5% - 95% (non-condensing)
Power Supply
1U 2000W Titanium Redundant Power Supply W/PMbus
Power Efficiency
96%
Total Output Power and Input
1000W with Input 100 - 127Vac
1800W with Input 200 - 220Vac
1980W with Input 220 - 230Vac
2000W with Input 230 - 240Vac
2000W with Input 200 - 240Vac
AC Input Frequency
50-60Hz
Output Type
Backplanes (gold finger)
+12V
Max: 83.3A (100Vac - 127Vac)
Max: 150A (200Vac - 220Vac)
Max: 165A (220Vac - 230Vac)
Max: 166.7A (230Vac - 240Vac)
Max: 166.7A (200Vac - 240Vac)
+5Vsb
Max: 1A / Min: 0A
Power Distributor
PDB-PT747-4648
O/P: 12/212
+5V Max: 30
+3.3V Max: 24
-12V Max: 0.6
Certification
Titanium Certified
Regulatory (Power Supply)
Power Supply Safety / EMC
BSMI
CCC
CE/EMC
FCC class A
UL/CB
UL/CUL
Item Dimension (L"x W"x H")
39 x 28 x 13
Weight
103.00 LB
Warranty Information
1 Year
