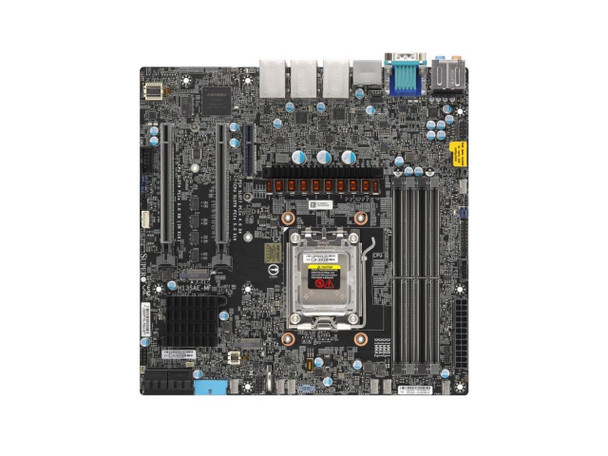

Supermicro MBDH13SAEMFO H13SAE-MF AM5 Micro-ATX Motherboard

This item is brand-new, factory sealed.

AMD EPYC 4005, 4004 series or Ryzen 9000 & 8700G* (system only) & 7000 series desktop processor, single socket LGA-1718 (socket AM5), up to 170W

Up to 192GB ECC/non-ECC unbuffered DIMM, DDR5-5600MHz, in 4 DIMM slots

2 PCIe 5.0 x16 (16/NA or 8/8), support up to 2 GPU cards (mechanical is up to 1 triple-width GPU card or 2 double-width GPU cards); 1 PCIe 4.0 x4

Dual 1Gbit LAN ports (i210 AT); 1 dedicated Realtek 1Gbit LAN for IPMI

Micro-ATX form factor

1 USB 3.2 Gen2x2 port (type C, 20Gb, rear); 5 USB 3.2 Gen2 ports (2 Type C, rear, support DP 1.4 Alt mode)

1 HDMI 2.0 port, 1 DP 1.4a port

M.2 Interface: 2 PCIe 5.0 x4 (RAID 0 & 1) (2280/22110, M-Key)Physical Stats
Form Factor
Micro-ATX
Dimension
9.6" x 9.6" (24.384cm x 24.384cm)Processor
CPU
Single processor(s)
AMD EPYC^TM 4004 / 4005 or AMD Ryzen^TM 7000 / 9000 Series Processors
Core Count
Up to 16C/32T
Note
Supports up to 170W TDP CPUsSystem Memory
Memory
Slot Count: 4 DIMM Slots
Max Memory (1DPC): Up to 192GB 5600MT/s ECC/non-ECC DDR5 UDIMM
Memory Voltage
1.1V
Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)On-Board Devices
Chipset
B650
SATA
4 SATA (6Gbps) , RAID 0/1/10 support
IPMI
ASPEED AST2600 BMC
Network Controller
Dual LAN with Intel i210 Gigabit Ethernet Controller
Single LAN with ASPEED AST2600 BMC, Dedicated LAN for IPMIInput / Output
USB
2 USB 3.2 Gen1 port(s) (Header)
3 USB 3.2 Gen2 Type-A port(s) (Rear)
1 USB 3.2 Gen2x2 Type-C port(s) (Rear)
2 USB 3.2 Gen2 Type-C port(s) (Rear)
1 USB 2 port(s) (Header)
Video
1 HDMI 2 port(s)
1 Display Port port(s)
2 VGA Type-C 3.2 Gen2 port(s) (Rear)
Serial
1 COM port(s) (header)
Audio
ALC 888S HD Audio
TPM
1 TPM 2.0 HeaderExpansion Slots
PCI-Express (PCIe) Configuration
1 PCIe 4.0 x4 slot
2 PCIe 5.0 x16 slots
M2
2 M.2 PCIe 5.0 x4 slots (M-key 2280/22110)System BIOS
BIOS Type
AMI 32MB SPI Flash EEPROM
BIOS Features
ACPI 6.4
Plug and Play (PnP)
SMBIOS 3.5 or later
UEFI 2.8
USB Keyboard supportManagement
Software
SuperCloud Composer
Supermicro Server Manager (SSM)
Supermicro Power Manager (SPM)
Supermicro Update Manager (SUM)
Supermicro SuperDoctor 5 (SD5)
Super Diagnostics Offline (SDO)
Supermicro Thin-Agent Service (TAS)
SuperServer Automation Assistant (SAA) New
Plug-ins for 3rd Party Software
IPMI Utilities
Power Configurations
Power-on mode control for AC power loss recovery
Power button override mechanism
S3/S4/S5Security
Hardware
Trusted Platform Module (TPM) 2.0PC Health Monitoring
Voltage
+12V,+3.3V,+5V,+5V standby,3.3V standby,CPU temperature,CPU thermal trip support,Memory temperature,PCH temperature,System temperature
FAN
7x 4-pin fan headers (up to 7 fans)Weight
3 lb

Warranty Information
1 Year
