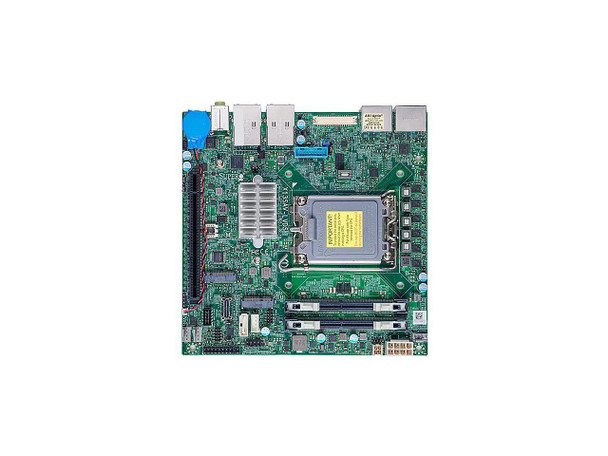

Supermicro MBDX13SAVLVDSO ATX Motherboard LGA1700 LVDS Support

This item is brand-new, factory sealed.

Key Features

1. 13th/12th Generation Intel Core i9/i7/i5/i3/Pentium/Celeron Processor, Single Socket LGA-1700 supported, CPU TDP supports Up to 65W TDP

2. Up to 64GB Unbuffered non-ECC SODIMM, DDR4-3200MHz, in 2 SODIMM slots

3. 1 PCIe 5.0 x16 slot (16/NA or 8/8)

1 M.2 M-Key 2280 (PCIe 4.0 x4)

1 M.2 E-Key 2230 (PCIe 3.0 x1/USB)

4. Single 1 Gigabit LAN with Intel Ethernet i210-AT LAN controller

Single 2.5 Gigabit LAN with Intel Ethernet i225LM LAN controller [AMT/vPro]

5. Intel Q670E Controller for 5 SATA3 (1 header, 4 via Oculink) ports; RAID 0,1,5,10

6. 4 Independent Displays (2 DP ports, 1 HDMI 2.0b port, 1 HDMI 1.4a port, LVDS)

7. Supports 12V DC power input

8. Onboard TPM2.0Product SKUs
MBD-X13SAV-LVDSPhysical Stats
Form Factor
Mini-ITX
Dimension
6.7" x 6.7" (17.02cm x 17.02cm)Processor
CPU
13th/ 12th Generation Intel Core i9/Core i7/Core i5/Core i3/Pentium/Celeron Processor
Single Socket LGA-1700 supported
Core
Up to 24 coresSystem Memory
Memory Capacity
2 DIMM slots
Up to 64GB Unbuffered non-ECC SODIMM, DDR4-3200MHz
Memory Type
3200/2933/2666 MT/s non-ECC DDR4 SODIMM Unbuffered
DIMM Sizes
4GB, 8GB, 16GB, 32GB
Memory Voltage
1.2VOn-Board Devices
Chipset
Intel Q670E
SATA
Intel Q670E controller for 5 SATA3 (6 Gbps) ports RAID 0,1,5,10
Audio
ALC 888S HD Audio
Graphics
1 Intel UHD Graphics port(s)
4 Independent Displays thru HDMI 2.0b/HDMI1.4/DP/LVDS
Network Controllers
Single LAN with Intel Ethernet i225LM
Single LAN with Intel Ethernet Controller I210-ATInput / Output
SATA
5 SATA3 (6Gbps) port(s) (1 header, 4 via Oculink)
USB
2 USB 2 port(s) (2 via header)
4 USB 3.2 Gen2 port(s) (4 rear type A)
2 USB 3.2 Gen1 port(s) (2 via header)
Video Output
1 HDMI 2.0b port(s), 2 DP (DisplayPort) port(s), 1 HDMI port(s), 1 LVDS port(s)
Serial Port
1 COM Port(s) (1 header)
TPM
TPM Header and Chip bothExpansion Slots
PCIe
1 PCIe 5.0 x16 slots (16/NA or 8/8)
M.2
M.2 Interface: 1 PCIe 4.0 x4, 1 CNVi/PCIe 3.0 x1/USB2
Form Factor: 2280, 2230
Key: M-Key, E-KeySystem BIOS
BIOS Type
AMI UEFI
BIOS Features
ACPI 6.1
SMBIOS 3.0 or later
PCI FW 3.0
UEFI 2.7
RTC (Real Time Clock) WakeupManagement
System Management Software
Wake-on-LAN, Watchdog
Power Configurations
Power-on mode for AC power recovery, ACPI Power Management, ATX Power connector, CPU thermal trip support for processor protection, +12V DC Power InputSecurity
Hardware
Trusted Platform Module (TPM) 2.0PC Health Monitoring
Voltage
VBAT, System temperature, System level control, PCH temperature, HT, CPU temperature, Chipset Voltage, 3 -fan status, +3.3V, +1.8V, Monitors CPU Core Voltages
LED
Power LED
Temperature
Thermal Control for 3 Fan Connectors
FAN
3x 4-pin fan headers (up to 3 fans)
System level control
PWM fan speed control
Fan speed control
3 fans with tachometer monitoring
Other Features
WOL, System level control, RoHS, M.2 NGFF connector, Chassis intrusion header, ATX Power connector, ACPI power management, 8-pin 12v DC power connector, 12V DC or ATX Power SourceOperating Environment
Operating Temperature Range
0^oC - 60^oC (32^oF - 140^oF)
Non-Operating Temperature Range
-40^oC - 85^oC (-40^oF - 185^oF)
Operating Relative Humidity Range
10% - 85% (non-condensing)
Non Operating Relative Humidity Range
10% - 95% (non-condensing)Item Dimension (L inchxW inchxH inch)
Weight
3 lbs

Warranty Information
1 Year
