Supermicro

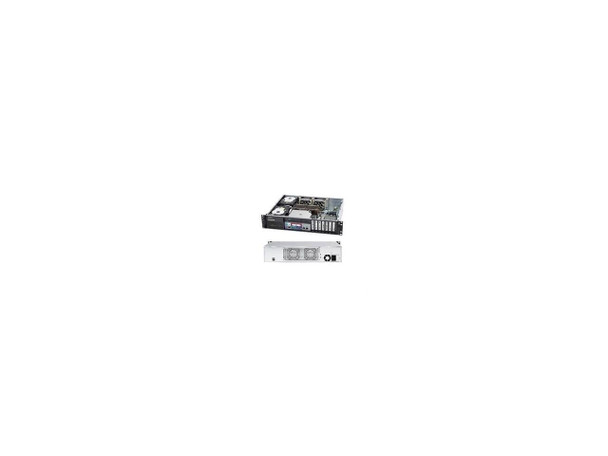

Supermicro SuperChassis 523L-505B - Rack-mountable - Black - 2U - 3 x Bay - 2 x 3.15" x Fan (CSE523L505B)
(No reviews yet)
Write a Review
- SKU:
- 18010445
- MPN:
- 206294
- Availability:
- Usually ships the same or next business day. In stock at our CA warehouse.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 12/17/2025 05:10:36 PM PST
- Stock Update:
- 12/17/2025 05:10:36 PM PST
Description
This item is brand-new, factory sealed.
1. 2U Chassis - supports for maximum motherboard sizes of 12" x 10" ATX2. 2 x 3.5" fixed drive bay, optional Up to 4 x 2.5" fixed drive bay
3. 1U 500W Multi-output power supply w/ PMbus, 80Plus Platinum
4. 7 low-profile expansion slot(s)
5. 2 x 8cm hot-swap exhaust fan(s) & air shroud
Form Factor
2U Chassis - supports for maximum motherboard sizes of 12" x 10" ATX
Processor Support
Dual and Single Intel and AMD processors
Dimensions
Height:3.5" (89 mm)
Width:16.8" (426 mm)
Depth:14.5" (369 mm)
Gross Weight:28 lbs (12.7 kg)
Packaging (W x H x L) :23" (584 mm) x 10" (254 mm) x 20" (508 mm)
Available Color:Black
Expansion Slots
7 low-profile expansion slot(s)
Drive Bays
2 x 3.5" fixed drive bay
Optional Upto 4 x 2.5" fixed drive bay
Peripheral Drives
Optional 1 x slim DVD-ROM drive bay
Front Panel
Buttons:Power On/Off button
System Reset Button
LEDs:2 Network Activity LEDs
HDD activity LED
Power Status LED
Power Fail LED
System Information LED
Systems Cooling
Fans:2 x 8cm hot-swap exhaust fan(s) air shroud
Operating Environment (System)
Operating Temperature Range:5oC - 35oC (41oF - 95oF)
Non-Operating Temperature Range:-40oC - 70oC (-40oF - 158oF)
Operating Relative Humidity Range:8% - 90% (non-condensing)
Non-Operating Relative Humidity Range:5% - 95% (non-condensing)
Power Supply
1U 500W Multi-output power supply w/ PMbus, 80Plus Platinum
Power Efficiency:93%
Total Output Power and Input:500W with Input 100 - 240Vac
AC Input Frequency:50-60Hz
Dimensions (L x W x H) :180 x 100 x 40 mm
Output Type:24pin ATX
-12V:Max: 0.2A / Min: 0A
+12V:Max: 41A / Min: 0.5A (100Vac - 240Vac)
+5V:Max: 15A / Min: 0.2A
+3.3V:Max: 12A / Min: 0.2A
+5Vsb:Max: 3A / Min: 0A
Certification: Platinum Certified
Regulatory (Power Supply)
Power Supply Safety / EMC:BSMI
CCC
CE/EMC
FCC class A
UL/CB
UL/CUL
Item Dimension (L inchxW inchxH inch)
20 x 10 x 23Weight
28.00lbWarranty Information
1 Year
Specs
| Power Description | |
| Power Supply Installed | Yes |
| Number of Power Supplies Supported | 1 |
| Number of Power Supplies Installed | 1 |
| Power Supply Wattage | 500 W |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Product Color | Black |
| Height | 3.5" |
| Color Family | Black |
| Compatible Rack Unit | 2U |
| Width | 16.8" |
| Depth | 14.5" |
| I/O Expansions | |
| Total Number of Expansion Slots | 7 |
| Bays | |
| Number of External 5.25" Bays | 1 |
| Number of Total Expansion Bays | 3 |
| Number of Internal 3.5" Bays | 2 |
| General Information | |
| Brand Name | Supermicro |
| Manufacturer Website Address | http://www.supermicro.com |
| Marketing Information | 2U SuperChassis 523 Supermicro's SC523 chassis features easy-access front I/O ports and a depth of only 14.5" for space-limited applications. The chassis design optimizes every aspect of interior space without compromising superior cooling. It is also equipped with a 520W high efficiency power supply for superb power savings. |
| Product Type | Computer Case |
| Product Name | SuperChassis 523L-505B |
| Manufacturer | Supermicro Computer, Inc |
| Manufacturer Part Number | CSE-523L-505B |
| Product Model | SC523L-505B |
| Product Line | SuperChassis |
| Technical Information | |
| Motherboard Supported | ATX |
| Installed Fan Size | 3.15" |
| Number of Fans Supported | 2 |
| Number of Fans Installed | 2 |
Warranty Information
All Items are Brand New, Factory Sealed and come with a standard warranty. [Read our policies]
View AllClose
Supermicro SuperChassis 523L-505B - Rack-mountable - Black - 2U - 3 x Bay - 2 x 3.15" x Fan (CSE523L505B)
$440.12
