Supermicro

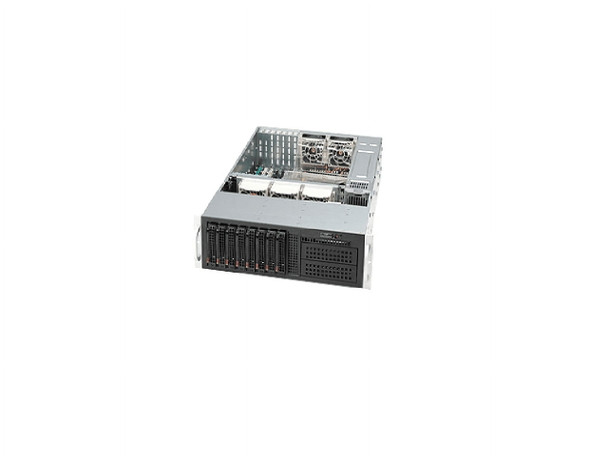

Supermicro CSE835TQR921B 3U Rackmount Server Chassis 920W Power Supply
(No reviews yet)
Write a Review
- SKU:
- 18407462
- MPN:
- cse-835tq-r921b
- Availability:
- Usually ships the same or next business day. In stock at our CA warehouse.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 12/09/2025 08:43:22 AM PST
- Stock Update:
- 12/09/2025 08:43:22 AM PST
Description
This item is brand-new, factory sealed.
Specifications
- Mfr Part Number: CSE-835TQ-R921B
- Case Type: 3U Rackmount
- Color: Black
- M/B Type: Support for motherboard size - E-ATX and ATX
- Processor Support: Dual, Single Intel / AMD Processors
- Drive Bays:
- 8x 3.5" SAS/SATA Hot-swap
- 2x 5.25" Drive Bay
- Expansion Slots: 7x Full-height Full-length Expansion Slots
- SAS/SATA Backplane: SAS833/835 BACK PANEL WITH AMI MG9072
- Cooling System: 3x 80mm Hot-swap PWM Fans, 2x 80mm Rear hot-swap Exhaust PWM Fans
- Front Panel:
- Buttons: Power On/Off, System Reset
- LEDs: 2 Network Activity LEDs, HDD activity LED, Power LED, Power Fail LED, System Overheat LED
- Power Supply: 1U 920W Redundant Platinum Super Quiet power supply W/PMbus
- Dimensions (WxDxH): 17.2 x 25.5 x 5.2 inch / 437.0 x 647.0 x 132.0 mm
- Gross Weight: 75.0 lbs / 34.02 kg
Package Contents:
- SuperChassis 835TQ-R921B
- 1 x SC835/836/936 Intel DP X9-X10 PC air shroud 1368x13/12x13MB
- 1 x SAS833/835 BACK PANEL WITH AMI MG9072
- 4 x 57.5CM SATA FLAT S-S PBF
- 1 x ROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LF
- 5 x 4 TO 4 PIN FAN POWER CABLE, 210MM
- 1 x BLACK HLDS SLIM DVD ROM SATA DRIVE,HF,RoHS
- 2 x 80x32 mm 6.7K RPM SC836 Rear Exhaust Fan w/ Housing
- 3 x 80x80x38 mm 7K RPM Chassis Middle Fan w/ Housing
- 2 x Black 5.25"; drive tray w/o rail (square pattern)
- 8 x Black gen 5.5 hot-swap 3.5" HDD tray
- 1 x SC825 24PIN REDUNDANT POWER DISTRIBUTOR
- 2 x 920W 1U Redundant PWS W/ Quiet Mode
- 1 x Rail set, quick/quick, default for 2,3U 17.2";W
Features
Package Contents:
- SuperChassis 835TQ-R921B
- 1 x SC835/836/936 Intel DP X9-X10 PC air shroud 1368x13/12x13MB
- 1 x SAS833/835 BACK PANEL WITH AMI MG9072
- 4 x 57.5CM SATA FLAT S-S PBF
- 1 x ROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LF
- 5 x 4 TO 4 PIN FAN POWER CABLE, 210MM
- 1 x BLACK HLDS SLIM DVD ROM SATA DRIVE,HF,RoHS
- 2 x 80x32 mm 6.7K RPM SC836 Rear Exhaust Fan w/ Housing
- 3 x 80x80x38 mm 7K RPM Chassis Middle Fan w/ Housing
- 2 x Black 5.25"; drive tray w/o rail (square pattern)
- 8 x Black gen 5.5 hot-swap 3.5" HDD tray
- 1 x SC825 24PIN REDUNDANT POWER DISTRIBUTOR
- 2 x 920W 1U Redundant PWS W/ Quiet Mode
- 1 x Rail set, quick/quick, default for 2,3U 17.2";W
Specs
| Power Description | |
| Power Supply Installed | Yes |
| Number of Power Supplies Installed | 2 |
| Power Supply Wattage | 920 W |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Product Color | Black |
| Height | 5.2" |
| Color Family | Black |
| Compatible Rack Unit | 3U |
| Width | 17.2" |
| Depth | 25.5" |
| Warranty | |
| Limited Warranty | 1 Year |
| I/O Expansions | |
| Total Number of Expansion Slots | 7 |
| Interfaces/Ports | |
| Total Number of USB Ports | 2 |
| Bays | |
| Number of External 5.25" Bays | 3 |
| Number of External 3.5" Bays | 8 |
| Number of Total Expansion Bays | 11 |
| General Information | |
| Brand Name | Supermicro |
| Manufacturer Website Address | http://www.supermicro.com |
| Product Type | Server Case |
| Product Name | SuperChassis 835TQ-R921B |
| Manufacturer | Supermicro Computer, Inc |
| Manufacturer Part Number | CSE-835TQ-R921B |
| Product Model | CSE-835TQ-R921B |
| Product Line | SuperChassis |
| Technical Information | |
| Motherboard Supported |
|
| Installed Fan Size | 3.15" |
| Number of Fans Installed | 5 |
Warranty Information
All Items are Brand New, Factory Sealed and come with a standard warranty. [Read our policies]
View AllClose
Supermicro CSE835TQR921B 3U Rackmount Server Chassis 920W Power Supply
$1,406.00
