Supermicro

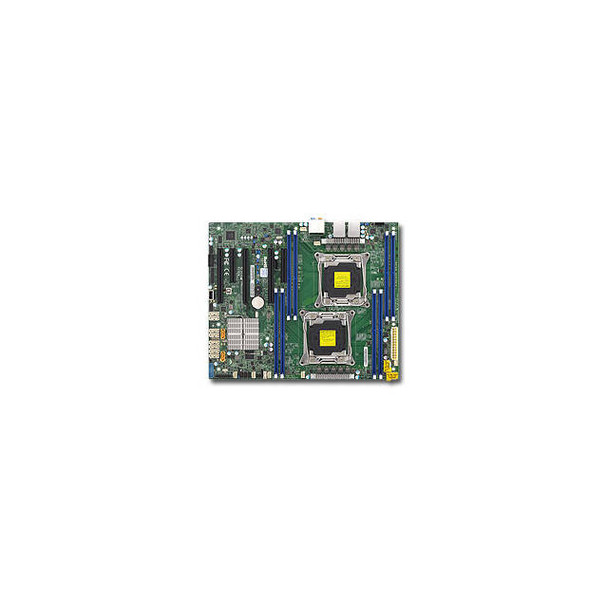

Supermicro X10DAL-i Server Motherboard - Intel Chipset - Socket LGA 2011-v3 - 1 x Bulk Pack (x10dal-i-b)
(No reviews yet)
Write a Review
- SKU:
- 19273255
- MPN:
- x10dal-i-b
- Availability:
- Out of stock
- Stock Update:
- 04/30/2025 05:55:06 PM PST
- Stock Update:
- 04/30/2025 05:55:06 PM PST
Frequently bought together:
Description
This item is brand-new, factory sealed.
1. Dual socket R3 (LGA 2011) supports Intel Xeon processor E5-2600 v3 family QPI up to 9.6GT/s2. Intel C612 chipset
3. Up to 512GB LRDIMM / 256GB RDIMM ECC DDR4 2133MHz 8x DIMM slots
4. 2x PCI-E 3.0 x16, 1x PCI-E 3.0 x8 (in x16), 1x PCI-E 3.0 x4 (in x8), 1x PCI-E 2.0 x4 (in x8) slot
5. Intel i210 Dual port GbE LAN
6. 10x SATA3 (6Gbps) ports w/ Intel C612 controller RAID 0, 1, 5, 10
7. 6x USB 3.0 (4 rear, 2 via header) 3x USB 2.0 (2 via header, 1 Type A)
8. 7.1 HD Audio with optical S/PDIF
9. Thunderbolt Add-On Card support Form Factor
ATX
Processor/Cache
CPU:
Intel Xeon processor E5-2600 v3 family (up to 160W TDP )
Dual Socket R3 (LGA 2011)
Cores / Cache:Up to 18 Cores / Up to 45MB Cache
System Bus:QPI up to 9.6 GT/s
Note: Motherboard supports this maximum TDP. Please verify your system can thermally support. System Memory
Memory Capacity:8x 288-pin DDR4 DIMM slots
Up to 512GB ECC LRDIMM, 256GB ECC RDIMM
Memory Type:2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes:RDIMM: 32GB, 16GB, 8GB, 4GB
LRDIMM: 64GB, 32GB
Memory Voltage:1.2 V
Error Detection:Corrects single-bit errors On-Board Devices
Chipset:Intel C612 Express chipset
AHCI SATA:SATA3 (6Gbps) RAID 0, 1, 5, 10
SCU SATA:SATA3 (6Gbps) RAID 0, 1, 5, 10
Network Controllers:
Intel i210 Dual Port Gigabit Ethernet
Supports 10Base-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Audio:RealTek ALC888 7.1 High Definition Audio with S/PDIF header Input / Output
SATA:10x SATA3 (6Gbps) ports
LAN:2x RJ45 Gigabit Ethernet LAN ports
USB:
6x USB 3.0 ports (4 rear + 2 via header)
3x USB 2.0 ports (2 via header + 1 Type A)
Audio:7.1 HD Audio with optical S/PDIF
Serial Port / Header:1x COM Port (1 header)
DOM:2x SuperDOM (Disk on Module) ports
TPM:1x TPM 1.2 20-pin Header Expansion Slots
PCI-Express:
2x PCI-E 3.0 x16
1x PCI-E 3.0 x8 (in x16)
1x PCI-E 3.0 x4 (in x8)
1x PCI-E 2.0 x4 (in x8)
System BIOS
BIOS Type:
128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features:
Plug and Play (PnP)
PCI 2.3
ACPI 1.0 / 2.0 / 3.0 / 4.0
USB Keyboard support
SMBIOS 2.7.1
UEFI 2.3.1 Management
Software:
SuperDoctor 5
Watch Dog
Power Configurations:
ACPI Power Management
Power-on mode for AC power recovery PC Health Monitoring
Voltage:
Monitors for CPU Cores, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory Voltages.
5 Phase-switching voltage regulator
FAN:
7x 4-pin fan headers (up to 6 fans)
7x fans with tachometer monitoring
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectorsTemperature:
Monitoring for CPU and chassis environment
CPU thermal trip support
Thermal Control for 7x Fan Connectors
Thermal Monitor 2 (TM2) support
PECI
LED:CPU / System Overheat LED
Other Features:
Chassis intrusion detection
Chassis intrusion header
SDDC Support
RoHSWeight:
3 lb
Warranty Information:
1 Year
Features
Compatibility:
Supermicro SuperChassis:
2U Chassis:
Supermicro SuperChassis:
2U Chassis:
- SC213LT-600LPB
- SC825TQ-600LPB
- SC732D4-500B
- SC733TQ-665B
- SC743T-665B
- SC743TQ-865B-SQ
Specs
| Onboard Interfaces | |
| Number of SATA Interfaces | 10 |
| Total Number of Onboard USB Ports | 5 |
| Number of Onboard USB 3.0 Ports | 2 |
| Physical Characteristics | |
| Form Factor | ATX |
| Width | 12" |
| Depth | 10" |
| I/O Expansions | |
| Total Number of Expansion Slots | 5 |
| Number of PCI Express x8 Slots | 2 |
| Number of PCI Express x16 Slots | 3 |
| Total Number of PCI Express Slots | 5 |
| Interfaces/Ports | |
| Total Number of USB Ports | 4 |
| Number of USB 3.0 Ports | 4 |
| Memory | |
| Memory Technology | DDR4 SDRAM |
| Number of Memory Slots | 8 |
| Memory Speed Supported |
|
| Memory Form Factor |
|
| Maximum Memory Supported | 1 TB |
| I/O Controller | |
| RAID Supported | Yes |
| Controller Type | Serial ATA/600 |
| RAID Levels |
|
| General Information | |
| Brand Name | Supermicro |
| Package Type | Bulk |
| Manufacturer Website Address | http://www.supermicro.com |
| Marketing Information | DP Xeon® Motherboards - Socket R3 (LGA 2011) X10 DP Motherboard Selection Assistant Tool Xeon® E5 Family BOARDS / Socket R3 (LGA 2011) Introducing Supermicro's latest generation of dual processor motherboard technology based on Intel's E5-2600 v4 Broadwell / v3 Haswell processor. Supermicro's X10 motherboards are specifically designed to meet the demanding needs of today's complex computational workloads. Feature rich and highly expandable, our X10 motherboards provide the latest advanced integrated and expandable storage and networking technologies. Features like lightning fast DDR4 memory, NVMe/SAS3/SATA3 storage interfaces, 1G/10GBASE-T, 10G SFP+, 40GbE, and Infiniband QDR/FDR. With its unprecedented set of features, each X10 motherboard is specifically tailored to provide optimal performance while helping to reduce deployment and operational costs over the lifespan of the product. |
| Product Type | Server Motherboard |
| Product Name | X10DAL-i Server Motherboard |
| Manufacturer | Supermicro Computer, Inc |
| Manufacturer Part Number | MBD-X10DAL-I-B |
| Product Model | X10DAL-i |
| Product Series | X10 |
| Packaged Quantity | 1 |
| Processor & Chipset | |
| Chipset Manufacturer | Intel |
| Processor Supported | Xeon |
| Total Processor Supported | 1 |
| Processor Socket | Socket LGA 2011-v3 |
| Chipset Model | C612 |
| Network & Communication | |
| Gigabit Ethernet | Yes |
| Audio | |
| Audio Channels | 7.1 |
