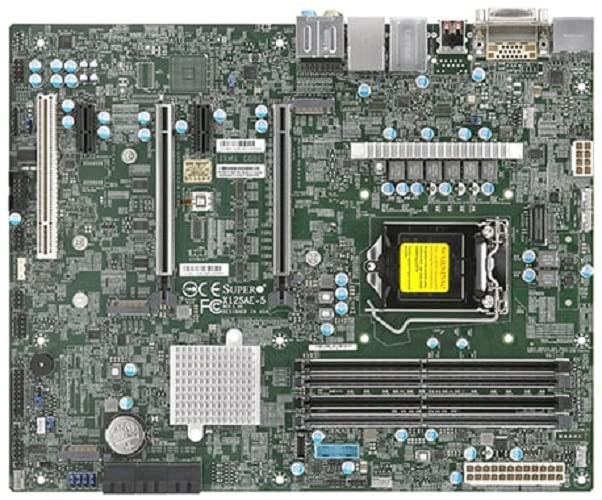

Supermicro X12SAE-5 Workstation Motherboard - Intel W480 Chipset - Socket LGA-1200 - ATX (254914)

This item is brand-new, factory sealed.

Key Features
1. 10th Generation Intel Core i9/Core i7/Core i5/Core i3/Pentium/Celeron Processor, 11th Generation Intel Core i5/i7/i9 Processors, Intel Xeon W-1200 Processors, Intel Xeon W-1300 Processors
Single Socket LGA-1200 (Socket H5) supported, CPU TDP supports Up to 125W TDP
2. Intel W580
3. 2 PCI-E 4.0 x16 slots (16/NA or 8/8)2 PCI-E 3.0 x1
1 - 5V PCI 32bit
M.2 Interface: 1 PCI-E 4.0 x4 and 2 PCI-E 3.0 x4, RAID 0 and 1
M.2 Form Factor: 2280/22110
M.2 Key: M-Key
RAID 5 only applied for INTEL Storage Device
4. Single LAN with Intel Ethernet i225V
Single LAN with Intel PHY I219LM LAN controller
for AMT/vPro
5. 128GB Unbuffered ECC/non-ECC UDIMM, DDR4-3200MHz, in 4 DIMM slots
Intel W580 controller for 4 SATA3 (6 Gbps) ports RAID 0,1,5,10
1 DP 1.4a port, 1 HDMI 2.0b port, 1 DVI - D portPhysical Stats
Form Factor
ATX
Dimension
12" x 9.6" (30.48cm x 24.38cm)Processor
CPU
10th Generation Intel Core i9/Core i7/Core i5/Core i3/Pentium/Celeron Processor, 11th Generation Intel Core i5/i7/i9 Processors, Intel Xeon W-1200 Processors, Intel Xeon W-1300 Processors
Single Socket LGA-1200 (Socket H5) supported, CPU TDP supports Up to 125W TDP
Core
Up to 8 coresSystem Memory
Memory Capacity
4 DIMM slots
128GB Unbuffered ECC/non-ECC UDIMM, DDR4-3200MHz
Memory Type
128GB 3200MHz
DIMM Sizes
2GB, 4GB, 8GB, 16GB, 32GB
Memory Voltage
1.2VOn-Board Devices
Chipset
Intel W580
SATA
Intel W580 controller for 4 SATA3 (6 Gbps) ports RAID 0,1,5,10
Audio
ALC 888S HD Audio
Network Controllers
Single LAN with Intel PHY I219LM LAN controller
Single LAN with Intel Ethernet i225V, for AMT/vProInput / Output
LAN
1 RJ45 Gigabit Ethernet LAN ports
1 RJ45 2.5 Gigabit Ethernet LAN port
USB
4 USB 3.2 Gen2 port(s) (4 rear type A)
2 USB 3.2 Gen1 port(s) (2 via header)
2 USB 2.0 port(s) (2 via header)
2 USB 3.2 Gen2x2 port(s) (1 rear type C 1 via header)
Video Output
1 DVI - D port(s), 1 DP 1.4a port(s), 1 HDMI 2.0b port(s)
Serial Port
1 COM Port(s) (1 header)
TPM
1 TPM HeaderExpansion Slots
PCI-E
2 PCI-E 4.0 x16 slots (16/NA or 8/8),
2 PCI-E 3.0 x1
1 - 5V PCI 32bit
M.2
M.2 Interface: 1 PCI-E 4.0 x4, RAID 0 and 1 2 PCI-E 3.0 x4
Form Factor: 2280/22110
Key: M-Key
RAID 5 only applied for INTEL Storage DeviceSystem BIOS
BIOS Type
256MB SPI Flash with AMI BIOS
BIOS Features
ACPI 6.0
Plug and Play (PnP)
BIOS rescue hot keys
Riser card auto-detection support
SMBIOS 3.0 or laterManagement
Software
SuperDoctor 5, SUM, SSM, AMT, vPro, Watchdog
System Management Software
SuperDoctor 5
Power Configurations
Power-on mode for AC power recovery, ACPI Power Management, Power button override mechanism, Wake-on-LANPC Health Monitoring
Voltage
VBAT, System temperature, PCH temperature, CPU temperature, 3.3V standby, 1.05 (PCH), +5V standby, +5V, +3.3V, +12V, CPU thermal trip support, +1.8V PCH
LED
Power LED
Catastrophic Error LED
FAN
5x 4-pin fan headers (up to 5 fans)
Fan speed control
Overheat LED indication
Other Features
CPU thermal trip support for processor protection
Control of power-on for recovery from AC power loss
Chassis intrusion detection
ATX Power connector
ACPI power management
8-pin 12v DC power connectorOperating Environment
Operating Temperature Range
0^oC - 50^oC (32^oF - 122^oF)
Non-Operating Temperature Range
-20^oC - 60^oC (-4^oF - 140^oF)Item Dimension (L"xW"xH")
NA

Weight
3 lbs

Warranty Information
1 year
