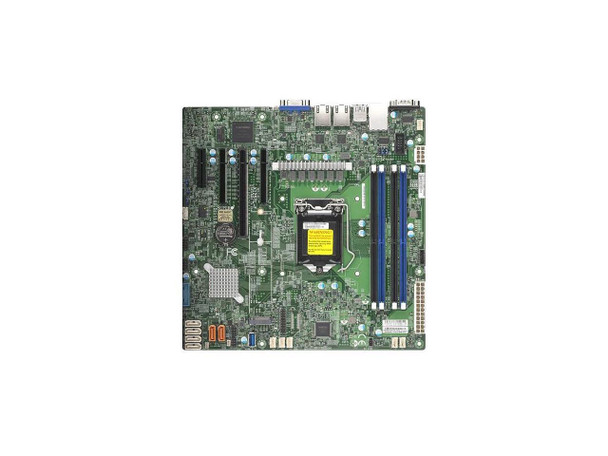

Supermicro X12STL-F Workstation Motherboard - Intel C252 Chipset - Socket LGA-1200 - Micro ATX (261324)

This item is brand-new, factory sealed.

Intel Xeon E-2300 Processor, 10th Generation Intel Pentium Processor, Single Socket LGA-1200 (Socket H5) supported, CPU supports Up to 95W TDP

Intel C252

Up to 128GB Unbuffered ECC UDIMM, DDR4-3200MHz, in 4 DIMM slots

1 PCI-E 4.0 x8,

1 PCI-E 4.0 x8 (in x16 slot),

1 PCI-E 4.0 x4 (in x8 slot)1 PCI-E 3.0 x2 (in x4 slot)

M.2 Interface: 1 PCI-E 3.0 x4

M.2 Form Factor: 2280/22110

M.2 Key: M-Key

Dual LAN with 1GbE with Intel I210

Intel C252 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10

1 VGA D-Sub Connector port

2 SuperDOM with built-in power

5x USB 3.2 Gen1 (2 rear, 1 Type-A, 2 via header), 4x USB 2.0 (2 rear, 2 via headers) Form Factor
microATX Processor
CPU
10th Generation Intel Pentium Processor, Intel Xeon E-2300 Processor
Single Socket LGA-1200 (Socket H5) supported, CPU TDP supports Up to 95W TDP
Core
Up to 8 cores System Memory
Memory Capacity
4 DIMM slots
Up to 128GB ECC UDIMM, DDR4-3200MHz Memory Type
3200/2933/2666MHz SDRAM DIMM Sizes
4GB, 8GB, 16GB, 32GB Memory Voltage
1.2V Error Detection
Corrects single-bit errors On-Board Devices
Chipset
Intel C252 SATA
Intel C252 controller for 6 SATA3 (6 Gbps) ports, RAID 0,1,5,10 IPMI
ASPEED AST2600 BMC Graphics
ASPEED AST2600 BMC Network Controllers
Dual LAN with 1GbE with Intel I210 Input / Output
SATA
6 SATA3 (6Gbps) port(s) LAN
2 1GbE LAN ports USB
4 USB 2.0 port(s) (2 rear, 2 via header)
5 USB 3.2 Gen1 port(s) (2 via header, 2 rear, 1 type A) Video Output
1 VGA D-Sub Connector port(s) Serial Port
2 COM Port(s) (1 header, 1 rear) DOM
2 SuperDOM (Disk on Module) power connector TPM
1 TPM Header Expansion Slots
PCI-E
1 PCI-E 4.0 x8 (in x16 slot),
1 PCI-E 4.0 x8,
1 PCI-E 4.0 x4 (in x8 slot),
1 PCI-E 3.0 x2 (in x4 slot)
M.2
M.2 Interface: 1 PCI-E 3.0 x4
Form Factor: 2280/22110
Key: M-Key
