Syba
Syba SI-PEX40139 5 Port Sata Iii Pcie X4 Card Ctlr Non-raid Sata Pcie X4 Controller
(No reviews yet)
Write a Review
- SKU:
- 18399287
- MPN:
- si-pex40139
- Availability:
- Out of stock
- Stock Update:
- 05/10/2024 02:38:16 PM PST
- Stock Update:
- 05/10/2024 02:38:16 PM PST
Description
This item is brand-new, factory sealed.

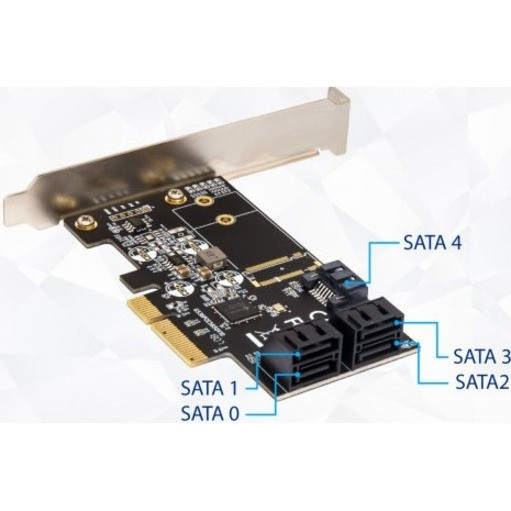

IO CREST Internal 5 Port Non-Raid SATA III 6GB/S Pci-E X4 Controller Card for Desktop PC Support SSD and HDD with Low Profile Bracket. JMB585 Chipset- Connect five SATA drives to any free PCI-E x4 Slot, providing up to 1700 MB/s Speed.
- Plug and play supported, No additional software installation or setting required.
- Can support port Multiplier that is not in a RAID configuration.
- Complies with PCI Express base Specification Revision 3.1a. Compatible with SATA hard drives & Solid state drives and computer systems with SATA controllers.
- This card is only design for storage Use only, can not Boot any OS/ system drives. Backed by syba 3 Year hassle-free warranty and lifetime customer service. Important Note: only work with PCI-E slot, not for PCI slot.
- Brand: IO CREST
- Series: SI-PEX40139
- Item model number: SI-PEX40139
- Item Weight: 6.8 ounces
- Product Dimensions: 4 x 4.75 x 0.75 inches
- Item Dimensions L x W x H: 4 x 4.75 x 0.75 inches
- Manufacturer: IO Crest
Using the JMB585 chipset, the SI-PEX40139 can provide extra 5 port SATA III to any free PCI-E x4 slot with PCIe Gen3 x2 bandwidth. For the storage solution based on data transfer of multiple hard drives, The newly added FIS-based switching design can overcome the bottlenecks created by operating multiple SATA storage devices simultaneously. The data transmission rate of the JMB585 can achieve to 1700MB/s, which is the maximum transfer speed of PCIe Gen3 x2.
Package Contents:
- 5 port Non-RAID SATA III 6Gbp/s PCI-e x4 Controller Card
- 5 x SATA Cables
- Manaul
Features
Package Contents:
Yes
China
- 5 port Non-RAID SATA III 6Gbp/s PCI-e x4 Controller Card
- 5 x SATA Cables
- Manaul
Environmentally Friendly:
Yes
Platform Supported:
PC
Linux
Country of Origin:
China
Specs
| Physical Characteristics | |
| Form Factor | Plug-in Card |
| Height | 4.8" |
| Width | 4.2" |
| Warranty | |
| Limited Warranty | 3 Year |
| Interfaces/Ports | |
| Number of SAS Ports (Internal) | 5 |
| Total Number of SAS Ports | 5 |
| General Information | |
| Brand Name | IO Crest |
| Manufacturer Website Address | http://www.syba.com |
| Marketing Information | Using the JMB585 chipset, the SI-PEX40139 can provide extra 5 Port SATA III to any free PCI-e x4 slot with PCIe Gen3 x2 bandwidth. For the storage solution based on data transfer of multiple hard drives, the newly added FIS-based switching design can overcome the bottlenecks created by operating multiple SATA storage devices simultaneously. The data transmission rate of the JMB585 can achieve to 1700MB/s, which is the maximum transfer speed of PCIe Gen3 x2. |
| Product Type | SATA Controller |
| Product Name | 5 port Non-RAID SATA III 6Gbp/s PCI-e x4 Controller Card |
| Manufacturer | SYBA Multimedia, Inc |
| Manufacturer Part Number | SI-PEX40139 |
| Packaged Quantity | 1 |
| Technical Information | |
| RAID Supported | No |
| Host Interface | PCI Express x4 |
| Controller Type | Serial ATA/600 |
Warranty Information
All Items are Brand New, Factory Sealed and come with a standard warranty. [Read our policies]
