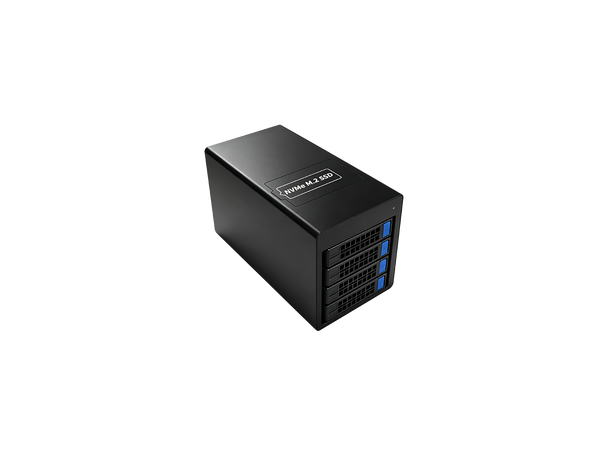

Syba SI-TDB50132 Hard Syba|si-tdb50132 R

This item is brand-new, factory sealed.

• Hybrid Enclosure: Four HDD/SSD Bay (SATA 6Gbps) + One M.2 NVMe Bay (PCIe 3.0 x4). Intel JHL7440 + JMicron JMS578 Chipsets.
• Superspeed Interface: Two Type-C 40Gbps ports (supports video, data, charging, and device daisy-chaining). Dedicated Type-C 40Gbps bandwidth for NVMe drives. 4 x SATA drives share USB 10Gbps bandwidth.
• Large Capacity: Support all brands of 2.5 Inch and 3.5 Inch SATA hard disk drive up to 30TB per drive (Does not support NAS function). Support M.2 Card Size: 22*30, 22*42, 22*60, 22*80mm. Up to 8TB.
• Nice Ventilation: Aluminum alloy housing with great heat dissipation. Built-in intelligent temperature-controlled fan with silent mode support. Silent cooling fan at 20db fan noise level.
• System Requirements: MacOS (10.15 and above), Windows 10 / 11, Linux (Kernel 5.4 and above, requiring support for USB4/Thunderbolt 3/4/5), Host device must have a Type-C 40Gbps port (compatible with USB4/Thunderbolt 3/4/5).
• Must Have Applications: High-performance NVMe + SATA hybrid storage array; Video editing/3D rendering/audio production media pool; Local AI training and inference data storage; Multi-bay backup and archival system; Expansion storage for small studios/personal creative projects. ? High-speed Type-C interface external hard drive expansion for hosts

• Hardware Interface: USB4 Type C
• Hardware Platform: Laptop, PC & Server
• Hard Disk Form Factor: 3.5 Inches
• Supported Devices Quantity: 1
• Data Transfer Rate: 40 Gigabits Per Second
• Connectivity Technology: Thunderbolt 3/4/5, USB 4.0
• Color: Gray
• Enclosure Material: Aluminum
• Item Dimensions L x W x H: 9.39"L x 4.92"W x 5.6"H
• Item Weight: 6 Pounds
• Brand: IO CREST
• Manufacturer: IO CREST
• UPC: 850039353536
• Mfr Part Number: SI-TDB50132
• Model Number: SI-TDB50132
• Warranty Description: 2 Year Manufacturer
• Built-In Media: One 12V 10A Power Adapter, One 4 Bay USB 4.0 HDD + 1 Bay M.2 NVMe Enclosure, One Type-C 40Gbps Data Cable, One User Manual

This product enables high-speed storage expansion and device daisy-chain connectivity through two Type-C 40Gbps ports. One port connects to the host system, while the other supports peripheral devices or additional expansion units. Internally, it integrates one NVMe M.2 slot that fully utilizes the Type-C 40Gbps bandwidth. Additionally, it provides four SATA 6Gbps ports, which are managed through the USB 10Gbps bandwidth derived from the interface. This configuration is ideal for scenarios such as multi-drive collaboration, high-speed storage pools, media production, and data backup. SI-TDB50132 with USB 4.0 40Gbps Superspeed interface helps to transfer your files in a breeze. Plug and Play. No additional driver or utility needed.
