Synology
Synology DiskStation DS620slim SAN/NAS Storage System (235202)
(No reviews yet)
Write a Review
- SKU:
- 18190718
- MPN:
- 235202
- Availability:
- Usually ships the same or next business day. In stock at our TX warehouse.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 12/25/2025 03:44:19 AM PST
- Stock Update:
- 12/25/2025 03:44:19 AM PST
Description
This item is brand-new, factory sealed.
Specifications
- Mfr Part Number: DS620SLIM
- CPU:
- CPU Model:Intel Celeron J3355
- CPU Architecture:64-bit
- CPU Frequency:DualCore 2 burst up to 2.5 GHz
- Hardware Encryption Engine (AES-NI): Y
- Hardware Transcoding Engine:H.265 (HEVC), MPEG-4 Part 2, MPEG-2, VC-1; maximum resolution: 4K (3840 x 2160)); maximum frame rate per second (FPS): 30
- Memory:
- System Memory:2 GB DDR3L
- Memory Module Pre-installed:2 GB (2 GB x 1)
- Total Memory Slots:2
- Memory Expandable up to:6 GB (2 GB + 4 GB)
- Storage:
- Drive Bays:6
- Compatible Drive Type* (See all supported drives): 2.5" SATA HDD / 2.5" SATA SSD
- Maximum Internal Raw Capacity:30 TB (5 TB drive x 6) (Capacity may vary by RAID types)
- Maximum Single Volume Size:108 TB
- Hot Swappable Drive: Y
- External Ports:
- RJ-45 1GbE LAN Port:2 (with Link Aggregation / Failover support)
- USB 3.0 Port:2
- File System:
- Internal Drives: Btrfs; EXT4
- External Drives: Btrfs; EXT4; EXT3; FAT; NTFS; HFS+; exFAT*
- NotesexFAT Access is purchased separately in Package Center.
- Appearance:

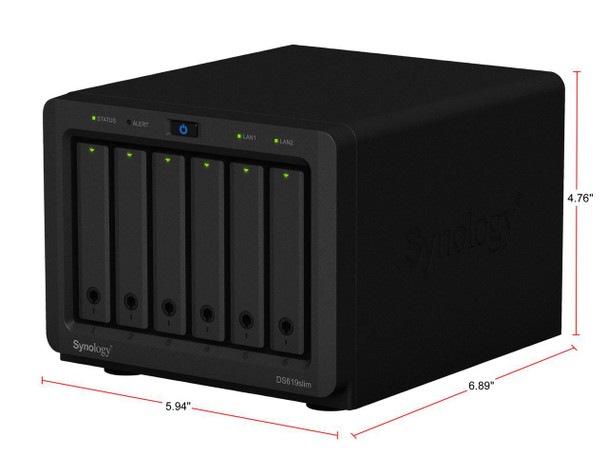

- Size (Height x Width x Depth): 121 mm x 151 mm x 175 mm
- Weight: 1.4 kg
- Others:
- System Fan:80 mm x 80 mm x 1 pcs
- Fan Speed Mode: Full-Speed Mode; Cool Mode; Quiet Mode
- Easy Replacement System Fan: Y
- Brightness Adjustable Front LED Indicators: Y
- Power Recovery: Y
- Noise Level:20.5 dB(A)
- Scheduled Power On/Off: Y
- Wake on LAN/WAN: Y
- Power Supply Unit / Adapter:65W
- AC Input Power Voltage:100V to 240V AC
- Power Frequency:50/60Hz, Single Phase
- Power Consumption:34.88 W (Access); 7.59 W (HDD Hibernation)
- British Thermal Unit:119.1 BTU/hr (Access); 25.92 BTU/hr (HDD Hibernation)
- Temperature:
- Operating Temperature:5C to 40C (40F to 104F)
- Storage Temperature:-20C to 60C (-5F to 140F)
- Relative Humidity:5% to 95% RH
- Certification: EAC; VCCI; RCM; FCC; CE; BSMI
- Storage Management:
- Maximum Internal Volume Number:64
- Maximum iSCSI Target Number:128
- Maximum iSCSI LUN:256
- iSCSI LUN Clone/Snapshot, Windows ODX: Y
- SSD TRIM: Y
- Supported RAID Type: Synology Hybrid RAID/Basic/JBOD/RAID 0/RAID 1/RAID 5/RAID 6/RAID 10
- RAID Migration: Basic to RAID 1/Basic to RAID 5/RAID 1 to RAID 5/RAID 5 to RAID 6
- Volume Expansion with Larger HDDs: Synology Hybrid RAID/RAID 1/RAID 5/RAID 6/RAID 10
- Volume Expansion by Adding a HDD: Synology Hybrid RAID/JBOD/RAID 5/RAID 6
- Global Hot Spare Supported RAID Type: Synology Hybrid RAID/RAID 1/RAID 5/RAID 6/RAID 10
- File Services:
- File Protocol:CIFS/AFP/NFS/FTP/WebDAV
- Maximum Concurrent CIFS/AFP/FTP Connections:500
- Maximum Concurrent CIFS/AFP/FTP Connections (with RAM expansion): 1,500
- Windows Access Control List (ACL) Integration: Y
- NFS Kerberos Authentication: Y
- Account & Shared Folder:
- Maximum Local User Accounts:2,048
- Maximum Local Groups:256
- Maximum Shared Folder:256
- Maximum Shared Folder Sync Tasks:8
- Synology High Availability: Y
- Log Center: Y
- Syslog Events per Second: 400
- Virtualization:
- VMware vSphere 6 with VAAI: Y
- Windows Server 2016: Y
- Citrix Ready: Y
- OpenStack: Y
- Antivirus by McAfee (Trial): Y
- Central Management System: Y
- Synology Chat: Y
- Maximum Users:1,000
- Cloud Station Server: Y
- Recommended Number of Hosted Files:500,000
- Recommended Number of Concurrent Sync Clients:500 (the number of connections that can be maintained when the recommended number of hosted files was reached)
- Environment: RoHS Compliant
- Packaging Content:
- Main Unit X 1
- AC Power Adapter X 1
- AC Power Cord X 1
- RJ-45 LAN Cable X 2
- Quick Installation Guide X 1
- Optional Accessories:
- Surveillance Device License Pack
- D3NS1866L-4G DDR3 non-ECC SO-DIMM
- VS360HD
- VS960HD
- *All images and descriptions are for illustrative purposes only. Visual representation of the products may not be perfectly accurate. Product specification, functions and appearance may vary by models and differ from country to country . All specifications are subject to change without notice. Although we endeavor to present the most precise and comprehensive information at the time of publication, a small number of items may contain typography or photography errors. Products may not be available in all markets. We recommend you to check with sales for exact offers.
Features
Country of Origin:
Taiwan
Taiwan
Specs
| Controllers | |
| RAID Supported | Yes |
| Controller Type | Serial ATA |
| RAID Levels | 0, 1, 5, 6, 10, Basic, Hybrid RAID, JBOD |
| Management & Protocols | |
| Protocols |
|
| Power Description | |
| Maximum Power Supply Wattage | 65 W |
| Number of Power Supplies Installed | 1 |
| Physical Characteristics | |
| Form Factor | Desktop |
| Weight (Approximate) | 3.09 lb |
| Height | 4.8" |
| Width | 5.9" |
| Depth | 6.9" |
| I/O Expansions | |
| Number of 2.5" Bays | 6 |
| Number of Total Expansion Bays | 6 |
| Memory | |
| Standard Memory | 2 GB |
| Memory Technology | DDR3L SDRAM |
| General Information | |
| Brand Name | Synology |
| Manufacturer Website Address | http://www.synology.com |
| Marketing Information | When performance meets style DS620slim is a mini 6-bay NAS with a stylish chassis design, perfectly blending in modern workplaces or apartments. Supporting near-instantaneous snapshot technology and real-time 4K video transcoding, DS620slim is an all-around file management solution that fulfills professionals' needs of advanced data protection and high-quality media streaming. Remain classic while shrinking footprint The mini 6-bay design keeps DS620slim classic and saves deployment space. With six 2.5" drive support, DS620slim is able to boost performance by installing SSDs. Compact Design Mini design with the dimensions of 121 x 151 x 175 mm, flexible to fit in anywhere RAID Flexibility Flexible in a variety of RAID configurations to realize maximum 30TB raw capacity or better data protection with RAID 5/6/10 SSD Cache Support Further enhance storage performance with SSD read/write cache while still having abundant drive bays for data storage Btrfs: Next generation storage efficiency Btrfs file system introduces the most advanced storage technologies to meet the management needs of modern large scale businesses: Flexible Shared Folder/User Quota System provides comprehensive quota control on all user accounts and shared folders Snapshot Replication provides schedulable and storage capacity-saving data protection with 1,024 shared folder backups and 65,000 system-wide snapshots File or folder level data restoration makes data recovery fast and flexible Automatic file self-healing detects and recovers corrupted files without user intervention Ultimate file management and sharing File Station is a web-based, fast and secure management tool built to allow easy, drag-and-drop operations without requiring any complex setup on Mac or PC. Advanced search and filtering tools allow for easy organization and file sharing. For complete compatibility, DS620slim supports the following protocols: AFP, FTP, iSCSI, NFS, SMB, and WebDAV. Synchronize files across your devices Cloud Station Suite provides real-time data synchronization across all your devices and other Synology NAS. "Intelliversioning" keeps the most important file versions to better utilize storage space. 4K Multimedia Server Access and stream your 4K media content anytime and anywhere. DS620slim supports 4K H.264/H.265 online transcoding via Video Station and DS video, allowing 4K videos to be converted and played on the fly on other computers, smartphones, and media players that originally do not support Ultra HD formats. Powered by Synology DSM File Server/Management Powerful built-in file management and sharing services. Snapshot Replication Schedulable and instantaneous data protection of shared folders and iSCSI LUNs for disaster prevention. Multimedia Complete multimedia solution for management, streaming, and playback. DSM UI Award-winning operating system with an intuitive user interface and powerful capabilities. Security Comprehensive built-in security tools are constantly updated to protect your devices against evolving threats. Public Cloud Integration Backup and synchronize data easily between your public cloud accounts and your NAS. |
| Product Type | SAN/NAS Storage System |
| Product Name | DiskStation DS620slim SAN/NAS Storage System |
| Manufacturer | Synology, Inc |
| Manufacturer Part Number | DS620SLIM |
| Product Model | DS620slim |
| Product Line | DiskStation |
| Packaged Quantity | 1 |
| Processor & Chipset | |
| Processor Core | Dual-core (2 Core) |
| Processor Manufacturer | Intel |
| Processor Model | J3355 |
| Processor Type | Celeron |
| Processor Speed | 2 GHz |
| Storage | |
| Number of Hard Drives Supported | 6 |
| Total Solid State Drive Capacity Supported | 30 TB |
| Number of Hard Drives Installed | No |
| Number of Solid State Drive Installed | No |
| Number of Solid State Drive Supported | 6 |
| Total Hard Drive Capacity Supported | 30 TB |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Total Number of USB Ports | 2 |
| Number of USB 3.0 Ports | 2 |
| Number of Network (RJ-45) Ports | 2 |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Software | |
| Operating System | DiskStation Manager |
Warranty Information
All Items are Brand New, Factory Sealed and come with a standard warranty. [Read our policies]
View AllClose
Synology DiskStation DS620slim SAN/NAS Storage System (235202)
$556.18
