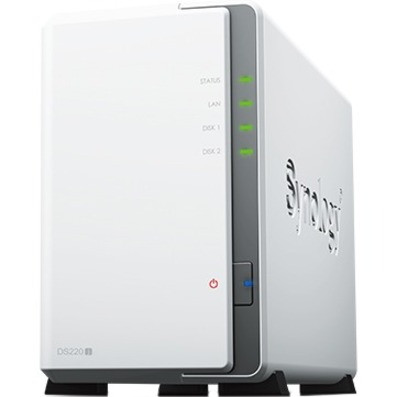

Synology DiskStation DS220J SAN/NAS Storage System (241885)

This item is brand-new, factory sealed.

An easy-to-use private cloud for everyone
DS220j is an entry-level 2-bay NAS designed for home and personal users to store and share photos, videos, and documents. The private cloud solution is powered by the award-winning DiskStation Manager (DSM) OS, providing an intuitive user interface and safe data protection approaches for easy digital asset backups from computers and mobile devices at no additional cost.
Centralized backup solution for your digital devices
Synologys comprehensive multi-version backup solutions protect your digital assets on computers (Windows/Mac) and mobile phones (Android/iOS) against malicious attacks, including the rising threat from encryption-based ransomware.
Stream content to your TV
Turn your Synology NAS into a home media hub and stream your digital content to your favorite electronic devices, including computers, mobile devices, Samsung TV, Apple TV, Google Chromecast, and DLNA devices.
Synology Hybrid RAID (SHR) technology
Storage management is easy with Synology Hybrid RAID (SHR) technology. SHR is an automated RAID management system that allows you to easily create and expand storage volumes and migrate RAID types without requiring details on the RAID setup. SHR provides 1-disk redundancy to safeguard your data in case of drive failures.
CPU
CPU Model
Realtek RTD1296
CPU Architecture
64-bit
CPU Frequency
4-core 1.4 GHz
Hardware Encryption Engine
YesMemory
System Memory
512 MB DDR4 non-ECC
Notes
Synology reserves the right to replace memory modules with the same or higher frequency based on suppliers product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.Storage
Drive Bays
2
Compatible Drive Type
3.5" SATA HDD
2.5" SATA HDD (with optional 2.5" Disk Holder)
2.5" SATA SSD (with optional 2.5" Disk Holder)
Maximum Internal Raw Capacity
32 TB (16 TB drive x 2) (Capacity may vary by RAID types)
Maximum Single Volume Size
108 TB
Hot Swappable Drive
-
Notes
"Compatible drive type" indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.
The maximum single volume size is not directly related to the maximum raw capacity.External Ports

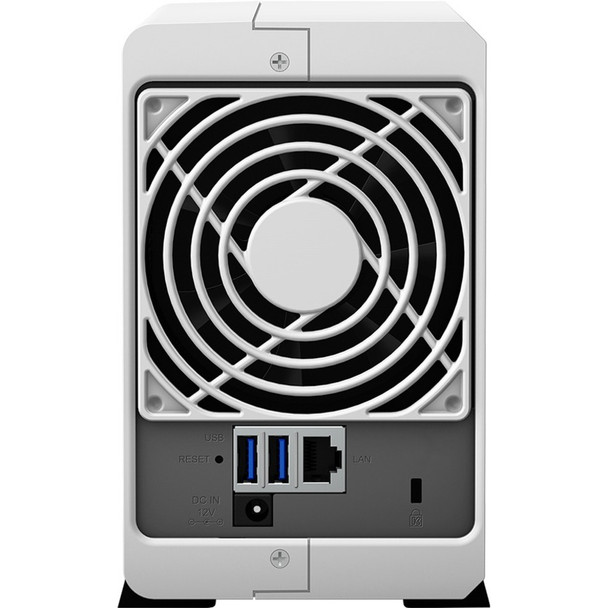

RJ-45 1GbE LAN Port
1
USB 3.0 Port
2File System
Internal Drives
EXT4
External Drives
EXT4
EXT3
FAT
NTFS
HFS+
exFAT
Notes
exFAT Access is purchased separately in Package Center.Others
System Fan
92 mm x 92 mm x 1 pcs
Fan Speed Mode
Full-Speed Mode
Cool Mode
Quiet Mode
Low-power Mode
Brightness Adjustable Front LED Indicators
Yes
Power Recovery
Yes
Noise Level
18.2 dB(A)
Scheduled Power On / Off
Yes
Wake on LAN / WAN
Yes
Power Supply Unit / Adapter
60 W
AC Input Power Voltage
100 V to 240 V AC
Power Frequency
50/60 Hz, Single Phase
Power Consumption
12.46 W (Access)
5.06 W (HDD Hibernation)
British Thermal Unit
45.52 BTU/hr (Access)
17.27 BTU/hr (HDD Hibernation)
Notes
Power consumption is measured when it is fully loaded with Western Digital 1TB WD10EFRX hard drive(s).
Noise Level Testing Environment: Fully loaded with Seagate 2TB ST2000VN000 hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology NAS at the front and rear. Background noise: 16.49-17.51 dB(A) Temperature: 24.25-25.75^oC Humidity: 58.2-61.8%Temperature
Operating Temperature
0^oC to 40^oC (32^oF to 104^oF)
Storage Temperature
-20^oC to 60^oC (-5^oF to 140^oF)
Relative Humidity
5% to 95% RHCertification
FCC
CE
EAC
BSMI
VCCI
CCC
RCM
KCEnvironment
RoHS CompliantPackaging Content
Main Unit X 1
Accessory Pack X 1
AC Power Adapter X 1
AC Power Cord X 1
RJ-45 LAN Cable X 1
Quick Installation Guide X 1Item Dimension (L"xW"xH")
12 x 11 x 5

Weight
5 lbs

Warranty Information
2 Years
