Synology
Synology DiskStation DS723+ SAN/NAS Storage System DS723+
(No reviews yet)
Write a Review
- SKU:
- 19953678
- MPN:
- 270238
- Availability:
- Out of stock
- Stock Update:
- 12/09/2025 10:12:34 AM PST
- Stock Update:
- 12/09/2025 10:12:34 AM PST
Description
This item is brand-new, factory sealed.
Compact and Capable Storage for Homes and Small BusinessThe Synology DS723+ is a 2-bay compact and flexible NAS solution that can be adjusted and expanded as your needs change, with optional support for up to seven drives, faster networking, and NVMe SSDs for caching or additional storage pools. Powered by Synology DiskStation Manager (DSM), it offers a flexible all-in-one solution for data sharing, synchronization, backup, and surveillance.
Highlights
Dependable Performance
Up to 471/225 MB/s sequential read/write throughput makes file operations quick and efficient1
Versatile Network Storage
Leverage built-in file and photo management, data protection, virtualization, and surveillance solutions
Fast and Stable Connectivity
Two 1GbE ports for simple integration into existing environments with optional 10GbE connectivity2 to tackle more specialized, bandwidth-heavy applications
Easy Capacity Expansion
Add 5 extra drive bays with one DX517 expansion unit for a maximum of 7 storage drives3
Note: Specifications are subject to change without notice. Please refer to the models specifications page for the most up to date information.
1. Performance figures obtained through internal testing by Synology. Actual performance may vary depending on the testing environment, usage, andconfiguration. See performance charts for more information.
2. One 10GbE Rj-45 port can be added to the DS723+ with Synology E10G22-T1-Mini Network Upgrade Module.
3. DS723+ supports up to 7 drives with the Synology DX517 expansion unit, sold separately.Hardware SpecsCPU
CPU Model
AMD Ryzen R1600
CPU Quantity
1
CPU Architecture
64-bit
CPU Frequency
2-core 2.6 (base) / 3.1 (turbo) GHz
Hardware Encryption Engine (AES-NI)
YesMemory
System Memory
2 GB DDR4 ECC
Memory Module Pre-installed
2 GB (2 GB x 1)
Total Memory Slots
2
Maximum Memory Capacity
32 GB (16 GB x 2)
Notes
Synology reserves the right to replace memory modules with the same or higher frequency based on suppliers product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.
Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion.
For more information about the recommended memory configurations, please check the Hardware Installation Guide of your Synology product.Storage
Drive Bays
2
Maximum Drive Bays with Expansion Unit
7 (DX517 x 1)
M.2 Drive Slots
2 (NVMe)
Compatible Drive Type
3.5" SATA HDD
2.5" SATA SSD
M.2 2280 NVMe SSD
Hot Swappable Drive
Yes
Notes
The hot swappable drive feature is not supported by M.2 SSD slots.
"Compatible drive type" indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.External Ports

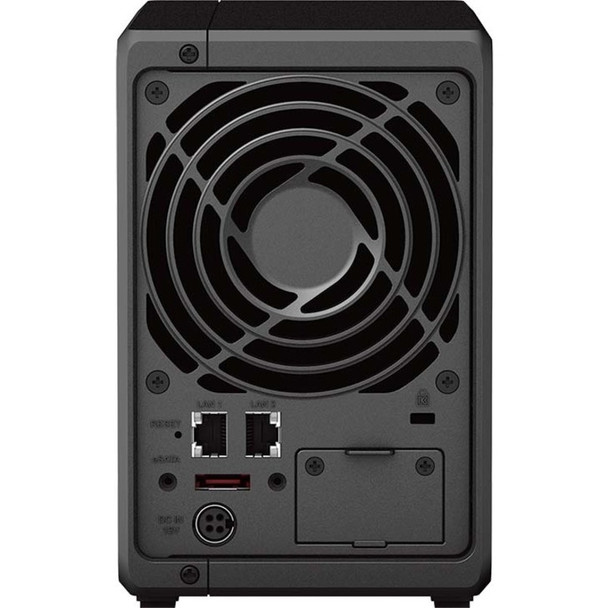

RJ-45 1GbE LAN Port
2 (with Link Aggregation / Failover support)
USB 3.2 Gen 1 Port
1
eSATA Port
1
Notes
This devices 1GbE LAN ports have a maximum transmission unit (MTU) size of 1,500 bytes.
The USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019.PCIe
PCIe Expansion
1 x Gen3 x2 network upgrade slotFile System
Internal Drives
Btrfs
EXT4
External Drives
Btrfs
EXT4
EXT3
FAT
NTFS
HFS+
exFATOthers
System Fan
92 mm x 92 mm x 1 pcs
Fan Speed Mode
Full-Speed Mode
Cool Mode
Quiet Mode
Brightness Adjustable Front LED Indicators
Yes
Power Recovery
Yes
Noise Level
20.7 dB(A)
Scheduled Power On / Off
Yes
Wake on LAN / WAN
Yes
Power Supply Unit / Adapter
65 W
AC Input Power Voltage
100V to 240V AC
Power Frequency
50/60 Hz, Single Phase
Power Consumption
21.07 W (Access)
8.62 W (HDD Hibernation)
British Thermal Unit
71.85 BTU/hr (Access)
29.39 BTU/hr (HDD Hibernation)
Notes
For more information on how power consumption is measured, refer to this article.
Noise testing was conducted with the Synology system fully installed with Synology SATA HDDs and in an idle stae. Two G.R.A.S. Type 40AE microphones are placed at a 1 m distance from the front and rear of the device. Background noise: 16.49-17.51 dB(A), Temperature: 24.25-25.75oC, Humidity: 58.2-61.8%Temperature
Operating Temperature
0oC to 40oC (32oF to 104oF)
Storage Temperature
-20oC to 60oC (-5oF to 140oF)
Relative Humidity
5% to 95% RHCertification
FCC
CE
BSMI
VCCI
RCM
UKCA
EAC
CCC
KCEnvironment
RoHS CompliantPackaging Content
Main Unit X 1
Accessory Pack X 1
AC Power Adapter X 1
AC Power Cord X 1
RJ-45 LAN Cable X 2
Quick Installation Guide X 1Optional Accessories
DDR4 ECC SODIMM: D4ES02-4G/D4ES02-8G/D4ES01-16G
Expansion Units: DX517
3.5" SATA HDD: HAT5300
2.5" SATA SSD: SAT5210
M.2 2280 NVMe SSD: SNV3410
10GbE Network Upgrade Module: E10G22-T1-Mini
VisualStation: VS360HD
Surveillance Device License PackItem Dimension (L inchxW inchxH inch)
12x 11 x 5
Weight
5.49lb
Warranty Information
3-year
Specs
| Controllers | |
| RAID Supported | Yes |
| Controller Type | Serial ATA |
| RAID Levels | 0, 1, Basic, Hybrid RAID, JBOD |
| Management & Protocols | |
| Protocols |
|
| Storage | |
| Number of Hard Drives Supported | 2 |
| Number of Solid State Drive Supported | 2 |
| Physical Characteristics | |
| Form Factor | Desktop |
| Weight (Approximate) | 3.33 lb |
| Height | 6.5" |
| Width | 4.2" |
| Depth | 8.8" |
| I/O Expansions | |
| Number of Total Expansion Bays | 2 |
| Number of 2.5"/3.5" Bays | 2 |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| eSATA | Yes |
| Total Number of USB Ports | 1 |
| Number of USB 3.2 Gen 1 Ports | 1 |
| Number of Network (RJ-45) Ports | 2 |
| Memory | |
| Standard Memory | 2 GB |
| Memory Technology | DDR4 SDRAM |
| General Information | |
| Brand Name | Synology |
| Manufacturer Website Address | http://www.synology.com |
| Marketing Information | Compact and Capable Storage for Homes and Small Business The Synology DS723+ is a 2-bay compact and flexible NAS solution that can be adjusted and expanded as your needs change, with optional support for up to seven drives, faster networking, and NVMe SSDs for caching or additional storage pools. Powered by Synology DiskStation Manager (DSM), it offers a flexible all-in-one solution for data sharing, synchronization, backup, and surveillance. Versatile Storage for Any Purpose The DS723+ comes out of the box with intuitive and comprehensive file management, media organization, and backup options, making it ideal for IT enthusiasts, creative professionals, and business owners looking for a very compact, but powerful storage system. Up to 465 MB/s sequential read and 228 MB/s sequential write performance1 enables fast file sharing, syncing, streaming, and backup for multiple users Supports 2 x 3.5" or 2.5" SATA HDD/SSD, expandable to 7 drives with one Synology DX517 expansion unit Up to 32 GB DDR4 ECC memory offers protection against potential crashes and inadvertent changes in data through automatic correction of data errors Two Gigabit RJ-45 ports can be bonded using Link Aggregation to provide automatic network failover and load balancing Maximize return on investment by upgrading your storage platform as more demanding needs arise with two built-in M.2 NVMe SSD slots7 and an optional 10GbE RJ-45 Network Upgrade Module Built for Data Protection and Integrity Safeguard your critical data with the powerful storage management features of Synology DSM, built on the advanced Btrfs file system. Advanced snapshot technology provides schedulable and near-instantaneous data protection for shared folders and LUNs File and folder-level data restoration enables recovery of specific files or folders Flexible storage quota system helps admins manage available space by specifying storage limits for shared folders File self-healing detects and recovers corrupted files using mirrored metadata and RAID configurations Inline compression minimizes storage consumption and extends the life of drives by compressing data before it is written to the storage pool Complete Data and Device Backup Solutions Synology DSM comes standard with a complete package of backup solutions available at no extra cost. Active Backup Suite consolidates backup tasks and offers rapid restoration of Windows and Linux endpoints, VMs, Synology NAS, and SaaS applications Snapshot Replication creates point-in-time copies of shared folders and LUNs to protect them from accidental modifications or ransomware incidents Hyper Backup backs up your NAS data to multiple destinations securely and efficiently with integrity checks and powerful deduplication, compression, and versioning options C2 Storage for Hyper Backup offers a dedicated secure public cloud destination for Synology NAS backup data |
| Product Type | SAN/NAS Storage System |
| Product Name | DiskStation DS723+ SAN/NAS Storage System |
| Manufacturer | Synology, Inc |
| Manufacturer Part Number | DS723+ |
| Product Model | DS723+ |
| Product Line | DiskStation |
| Packaged Quantity | 1 |
| Processor & Chipset | |
| Processor Core | Dual-core (2 Core) |
| Processor Manufacturer | AMD |
| Processor Model | R1600 |
| Processor Type | Ryzen |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
Warranty Information
All Items are Brand New, Factory Sealed and come with a standard warranty. [Read our policies]
