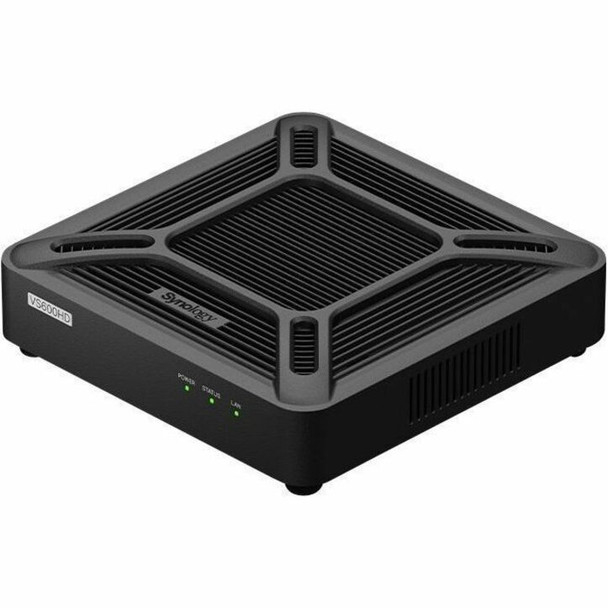

Synology VisualStation VS600HD Video Surveillance Station

This item is brand-new, factory sealed.

Optimized for video walls

Scale your TV wall with up to 50 video streams across two screens


Crystal-clear video feeds

Watch live camera feeds in up to 4K resolution


Plug-and-play surveillance

Experience instant access to Surveillance Station


US regulatory compliance

NDAA and TAA compliance help meet US federal requirements


Display your way

Simplify surveillance management with the VisualStation VS600HD, a PC-less compact surveillance client that pairs with Synology servers to create a comprehensive TV-wall monitoring solution.


High resolution dual display

Up to 4K video output and dual HDMI ports allow you to perform management tasks while monitoring multiple streams in crisp detail.


Minimalist design with TV mount option

The VS600HD can be affixed on the back of a monitor with the included VESA mount for optimized space utilization.


50-channel live view

Keep an eye on every corner of your premises with support for simultaneous monitoring of up to 50 channels at 600FPS/720p, as well as both H.265 and H.264 video compression standards.


Take security to the next level

Integrate the VS600HD as a powerful local management interface in a larger Synology surveillance deployment. Hardware Specifications Video Output
Video Output
HDMI x 2
Supported Video Resolution
4K (3840 x 2160), 30Hz
1080p (1920 x 1080), 60 Hz Audio Input
3.5 mm Stereo Audio Jack x 1 Audio Output
3.5 mm Stereo Audio Jack x 1 RJ-45 1GbE LAN Port
1USB 3.0 Port
2 Others
Power Supply Unit / Adapter
36 W
AC Input Power Voltage
100 V to 240 V AC
Power Frequency
50/60 Hz, Single Phase
Power Consumption
15.49 W (50ch full-load)
5.85 W (Power on Idle) Temperature
Operating Temperature
-20^oC to 40^oC (-4^oF to 104^oF)
Adapter Operating Temperature
0^oC to 40^oC (32^oF to 104^oF)
Operating humidity
8% to 80% RH
Storage Temperature
-20^oC to 60^oC (-4^oF to 140^oF)
Relative Humidity
5% to 95% RH Certification
FCC
UKCA
CE
BSMI
EAC
RCM
KC
VCCI NDAA compliance
Y TAA compliance
Y Environment
RoHS Compliant Packaging Content
Main Unit X 1
Quick Installation Guide X 1
AC Power Adapter X 1
RJ-45 LAN Cable X 1
VESA mounting kit Software Specifications Maximum IP cam
50 Total FPS (H.264)
600 FPS at 720p (1280x720), 50 Channels
360 FPS at 1080p (1920x1080), 36 Channels
280 FPS at 3M (2048x1536), 28 Channels
180 FPS at 5M (2591x1944), 18 Channels
120 FPS at 4K (3840 x 2160), 12 Channels Total FPS (H.265)
600 FPS at 720p (1280x720), 50 Channels
380 FPS at 1080p (1920x1080), 38 Channels
280 FPS at 3M (2048x1536), 28 Channels
180 FPS at 5M (2591x1944), 18 Channels
130 FPS at 4K (3840 x 2160), 13 Channels Video Codecs
H.264
H.265 Audio Codecs
PCM
G711
G726
AMR Local Display
Live View / Recording Playback
Y
Snapshot Support
Y
eMap Support
Y
PTZ Control / Patrol
Y
Log Viewer
Y
