Synology DiskStation DS1823XS+ SAN/NAS Storage System (ds1823xs-)

This item is brand-new, factory sealed.

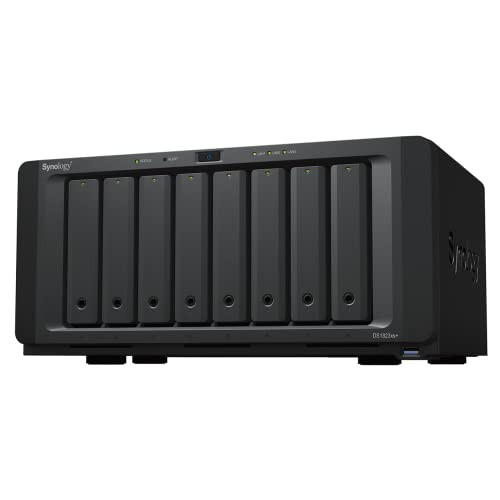

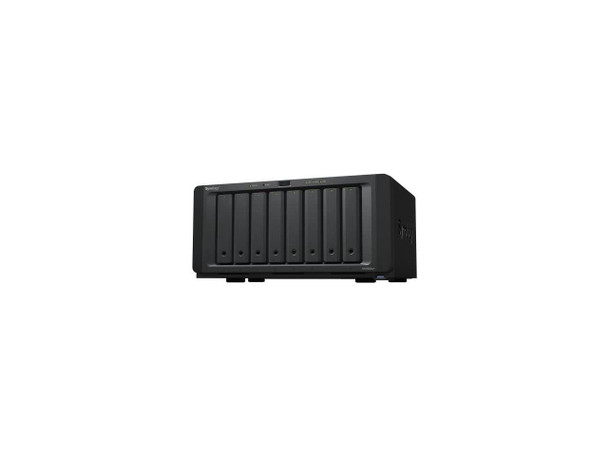

DiskStation DS1823xs+

Flexible large-scale storage for small and medium-sized businesses

Private data center on your desk

The DS1823xs+ is a powerful central storage server that can easily be deployed anywhere to provide shared data storage and sharing, endpoint and server backup, VM storage, surveillance management, and other business applications. It is perfect in settings where no dedicated server rack or data center is available.


Desktop-sized powerhouse

Over 3,100/2,600 MB/s seq. read/write, built-in 10GbE, and up to 144 TB raw storage before expansion.

Flexible configuration

Add up to 10 extra drive bays, 25GbE or Fibre Channel, and SSD cache volumes when needed.

Versatile applications

Back up 300 endpoints, manage 75 IP cameras, or safely sync and share files between devices and sites.

Safe, dependable, and scalable

Built-in data integrity protection, remote management options, and easy hardware expansion make the DS1823xs+ dependable, easy to maintain, and cost efficient.

Data integrity protection

The Btrfs file system helps prevent data corruption or loss through metadata mirroring, file self-healing, and efficient point-in-time snapshots. ECC memory provides additional integrity safeguards.

Efficient remote management

Monitor, manage, and replace drives and storage online in Synology DSM. Remotely reboot, reset, or view logs while the system is down thanks to out-of-band management (OOB).

Plug-and-play expansion

The DS1823xs+ can be scaled to up to 18 bays by adding two DX517 expansion units without system downtime, thanks to online storage and volume expansion.CPU
CPU Model
AMD Ryzen V1780B
CPU Quantity
1
CPU Architecture
64-bit
CPU Frequency
4-core 3.35 (base) / 3.6 (turbo) GHz
Hardware Encryption Engine (AES-NI)
YesMemory
System Memory
8 GB DDR4 ECC SODIMM
Memory Module Pre-installed
8 GB (8 GB x 1)
Total Memory Slots
2
Maximum Memory Capacity
32 GB (16 GB x 2)
Notes
Synology reserves the right to replace memory modules with the same or higher frequency based on suppliers product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.
Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion.
For more information about the recommended memory configurations, please check the Hardware Installation Guide of your Synology product.Storage
Drive Bays
8
Maximum Drive Bays with Expansion Unit
18 (DX517 x 2)
M.2 Drive Slots
2 (NVMe)
Compatible Drive Type
3.5" SATA HDD
2.5" SATA SSD
M.2 2280 NVMe SSD
Hot Swappable Drive
Yes
Notes
Synology only guarantees full functionality, reliability, and performance for Synology drives listed on the compatibility list. The use of non-validated components may limit certain functionality and result in data loss and system instability.
The hot swappable drive feature is not supported by M.2 SSD slots.
"Compatible drive type" indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.External Ports

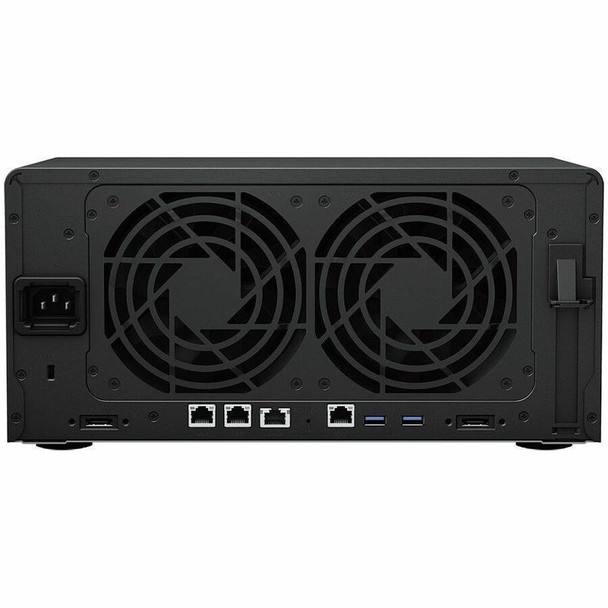

RJ-45 1GbE LAN Port
2 (with Link Aggregation / Failover support)
RJ-45 10GbE LAN Port
1
Out-of-Band Management LAN Port
1
USB 3.2 Gen 1 Port
3
eSATA Port
2
Notes
This devices 1GbE LAN ports have a maximum transmission unit (MTU) size of 1,500 bytes.PCIe
PCIe Expansion
1 x Gen3 x8 slot (x4 link)File System
Internal Drives
Btrfs
EXT4
External Drives
Btrfs
EXT4
EXT3
FAT
NTFS
HFS+
exFATOthers
System Fan
120 mm x 120 mm x 2 pcs
Fan Speed Mode
Full-Speed Mode
Cool Mode
Quiet Mode
Easy Replacement System Fan
Yes
Brightness Adjustable Front LED Indicators
Yes
Power Recovery
Yes
Noise Level
23.6 dB(A)
Scheduled Power On / Off
Yes
Wake on LAN / WAN
Yes
Power Supply Unit / Adapter
250 W
AC Input Power Voltage
100V to 240V AC
Power Frequency
50/60 Hz, Single Phase
Power Consumption
87.93 W (Access)
28.37 W (HDD Hibernation)
British Thermal Unit
300.23 BTU/hr (Access)
96.87 BTU/hr (HDD Hibernation)
Notes
For more information on how power consumption is measured, refer to this article.
Noise testing was conducted with the Synology system fully installed with Synology SATA HDDs and in an idle stae. Two G.R.A.S. Type 40AE microphones are placed at a 1 m distance from the front and rear of the device. Background noise: 16.49-17.51 dB(A) Temperature: 24.25-25.75C Humidity: 58.2-61.8%Temperature
Operating Temperature
0^oC to 40^oC (32^oF to 104^oF)
Storage Temperature
-20^oC to 60^oC (-5^oF to 140^oF)
Relative Humidity
5% to 95% RHCertification
FCC
CE
BSMI
VCCI
RCM
EAC
CCC
KCEnvironment
RoHS CompliantPackaging Content
Main Unit X 1
Accessory Pack X 1
AC Power Cord X 1
RJ-45 LAN Cable X 2
Quick Installation Guide X 1Optional Accessories
DDR4 ECC SODIMM: D4ES02-8G/D4ES01-16G
Expansion Units: DX517
3.5" SATA HDD: HAT5300
2.5" SATA SSD: SAT5210
M.2 2280 NVMe SSD: SNV3410
25GbE Network Interface Card: E25G21-F2
10GbE Network Interface Card: E10G21-F2/E10G18-T2/E10G18-T1
Surveillance Device License PackItem Dimension (L"xW"xH")
19 x 15 x 13

Weight
27 lbs

Warranty Information
5-Year

Package Contents:

• DiskStation DS1823XS+ SAN/NAS Storage System
• Power Adapter
• 1 x Accessory Pack
• 1 x AC Power Cord
• 2 x RJ-45 LAN Cable
• 1 x Quick Installation Guide
