Synology Rx1217rp Drive Enclosure Rack-mountable - 12 X Hdd Supported - 12 X Ssd Supported - 12 X Total Bay - 12 X 2.5"/3.5" Bay - Serial Ata/600 - Infiniband - Cooling Fan (rx1217rp)

This item is brand-new, factory sealed.

Scale up your RackStation in a Breeze

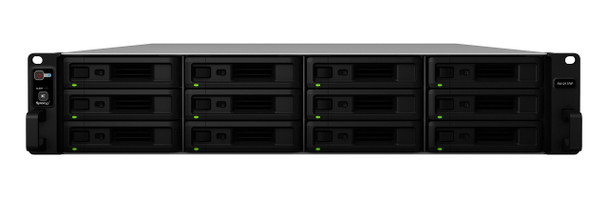

Synology gives you the flexibility to start with a smaller storage capacity and expand as your business starts to grow. RX1217RP is a 12-bay storage expansion units designed to provide seamless capacity expansion for select Synology RackStations.


Volume Expansion and Backup


When drive capacity is running low on a Synology RackStation, Synology RX1217RP offers an easy way to immediately expand storage by providing 12 additional drive slots. The RAID volume on the Synology RackStation can be expanded directly without having to reformat the existing hard drives, ensuring service continuity during the expansion process. To ensure 24/7 service uptime, Synology RX1217RP is equipped with redundant power supplies, allowing automatic failover support if one of the PSUs fail.


When created as a separate volume, Synology RX1217RP also serves as an additional local backup destination for Synology RackStations


Green and Easy to Manage


Hibernation mode can be manually configured to start automatically when the system has been inactive for a period of time. This not only saves energy but also extends the lifespan of hard drives. RX1217RP will also smartly power on/off with the attached RackStation, so no user intervention is needed to keep this system running smartly and efficiently

Storage:
Drive Bay(S): 12
Compatible Drive Type:
- 3.5 SATA III / SATA II HDD
- 2.5 SATA III / SATA II HDD
- 2.5 SATA III / SATA II SSD
Maximum Internal Raw Capacity: 120TB (10TB HDD x 12) (Capacity may vary by RAID Types)
Hot Swappable Drive: Yes
RAID Management thought Synology DSM: YesExternal Ports
InfiniBand Port: 1Power
Power Recovery: Synchronized with the Synology RackStation
Power Supply Unit/Adapter: 500W / 2x500W (for RP Model)
AC Input Power Voltage: 100v to 240v AC
Power Frequency: 50/60Hz, Single Phase
Power Consumption:
- 68.60 W (Access)
- 27.45 W (HDD Hibernation)
- 71.32 W (Access, for RP model)
- 31.20 W (HDD Hibernation, for RP model)
British Thermal Unit:
- 234.23 BTU/hr (Access)
- 93.73 BTU/hr (HDD Hibernation)
- 243.52 BTU/hr (Access, for RP model)
- 106.53 BTU/hr (HDD Hibernation, for RP model)Temperature
Operating Temperature: 5 C to 35 C (40 F to 95 F)
Storage Temperature: -20 C to 60 C (5 F to 140 F)
Relative Humidity: 5% to 95% RHOthers
System Fan: 80mmx80mm x 3pcs
Easy Replacement System Fan: Yes
Noise Level: 54.6 dB(A) / 54.2dB(A) (for RP Model)Certification
FCC Class A
CE Class A
BSMI Class AEnvironment
RoHS CompliantOptional Accessories
Synology RKS1317 Rail Kit SlidingPackage Contents
1 x Main Unit
1 x Accessory Pack
1 x AC Power Cord
2 x AC Power Cord (for RP Model)
1 x Expansion Cable: InfiniBand
1 x Quick Installation GuideItem Dimension (L"xW"xH")
34 x 26 x 10

Weight
64.00 lb

Warranty Information
5 Years
