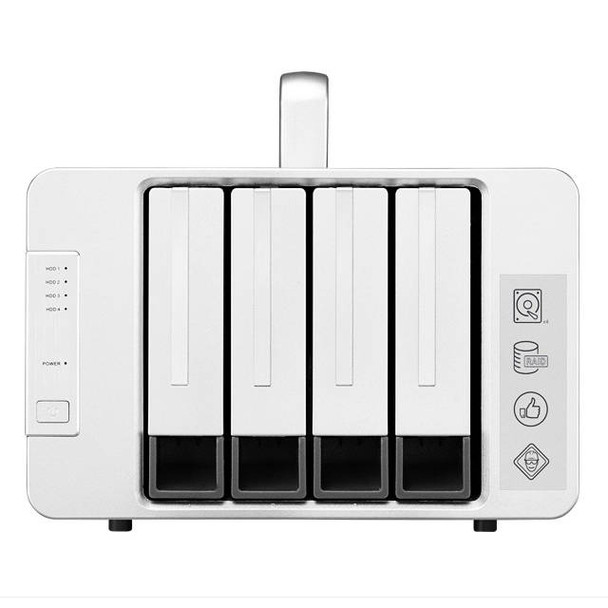

Terramaster D4-THUNDERBOLT3 D4 Thunderbolt 3 Professional-grade 4-bay External Hard Drive Enclosure Raid 0/raid1/jbod Hard Disk Raid Storage (diskless)

This item is brand-new, factory sealed.

Specifications

• Mfr Part Number: D4-THUNDERBOLT 3
• Feature
  • ing-Fast
  • Enjoy Rapid Video Workflows
  • High Scalability
  • Large Stroage Capacity
  • Perfectly Suited for the Most Demanding Video Professionals
  • Multiple RAID Supports
  • Multi-Screen Display
  • Professional and Safe
  • Dedicated DP Interface
  • The Ideal Companion for All Professionals
  • Authoritative Quality Certification
• Storage
  • Disk Slot Number: 4
  • Compatible Drive types: 3.5" SATA HDD, 2.5" SATA HDD, 2.5" SATA SSD
  • File System: FAT 32, FAT 16, NTFS, and EXT4
  • Maximum Internal Raw Capacity: 48TB (12 TB HDD x 4) (Capacity will vary along with the RAID type)
  • RAIDs Supported: SINGLE DISK, JBOD, RAID 0, RAID 1 , RAID 5, RAID 10
  • RAID Auto-rebuilding: Yes
  • Drive Hot Swap: Yes
  • HDD Sleep: Yes
• Working Temperature
  • Working Temperature: 5C ~ 40C (40F ~ 104F)
  • Storage Temperature: -20C ~ 60C (-5F ~ 140F)
  • Relative Humidity: 5% ~ 95% RH
• Reading/writing Speed (max.)
  • Reading Speed (max.): 780MB/s
  • Writing Speed (max.): 698MB/s (Use SSD under RAID 0 mode)
• External Ports: Thunderbolt 3x2; 1m 20Gbps thunderbolt cable; DP1.2; DC IN 12V
• LED Indicators:
  • HDD Indicator:
    • Green Light on: The hard drive works fine.
    • Green Light (flashing): the hard drive is being read
    • Red Light (flashing): failure of the hard drive or RAID
    • Orange Light (flashing): RAID being rebuilt
    • Off: if the hard drive has entered sleep mode, lack of detection or non-connection of the device to the computer
  • Power indicator:
    • Steady on: Powered on
    • Off: Powered off
    • Red light: Standby
• System Fan: 80 mm x 80 mm x 2 pcs
• Noise Level: 19.5dB(A)
• Power Supply: opearting mode 76.8W
• AC Input Voltage: 100V to 240V AC
• Current Frequency: 50/60 Hz, single frequency
• Warranty: 2 years
• Certificate: FCC, CE, CCC, UL
• Environment: RoHS compliance
• Dimensions (WxDxH): 227.0 x 225.0 x 136.0 mm
• Weight: 2.45 Kg (Net); 3.93Kg (Gross)
• Package Contents: product unit (x1), accessories package (x1), quick Installation Guide (x1), power supply (x1), power cord (x1), thunderboly cable (x1)
