Description

This item is brand-new, factory sealed.

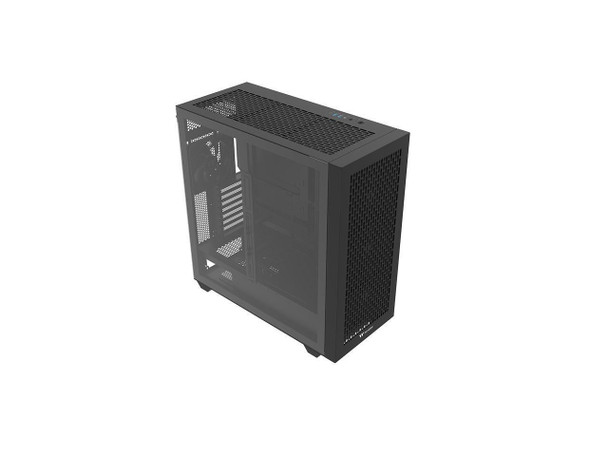

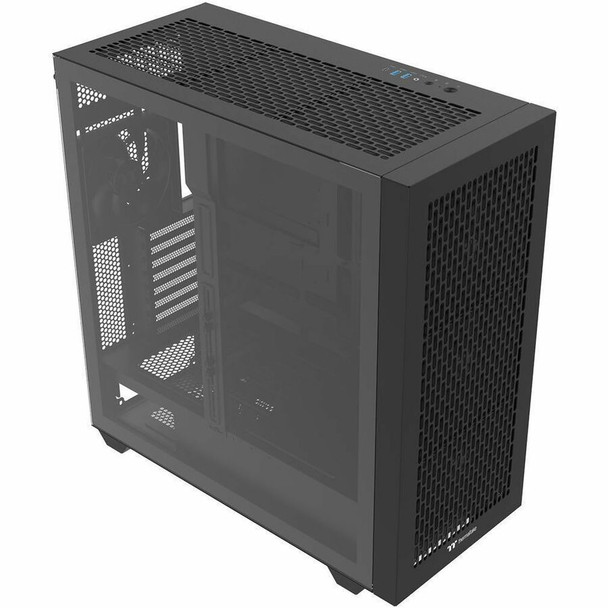

AX500 Full Tower Chassis

CA-11D-00F1WN-00

The AX500 Full Tower Chassis supports E-ATX/SSI-EEB motherboards, dual 420mm radiators, and up to fourteen 120mm fans for optimal airflow. It features a graphics card holder to prevent sagging and two drive cages beneath the PSU cover, ideal for high-performance workstations or gaming setups.

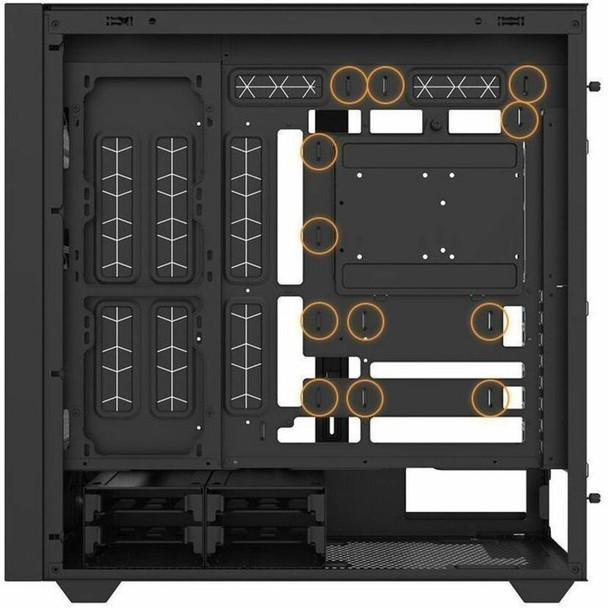

Compatible with Hidden-Connector Motherboards

The AX500 Full Tower Chassis supports up to one E-ATX/EEB motherboard, and the motherboard tray has cutouts for the latest hidden-connector ATX and micro-ATX motherboards.

*Compatible with hidden-connector motherboards:

ASUS BTF Series

MSI PROJECT ZERO Series

GIGABYTE PROJECT STEALTH Series

Excellent Radiator Support

Users can install dual 420mm/360mm radiators on the top and front of the chassis for superior cooling.

*Note: The top fan + radiator thickness limit is 82mm

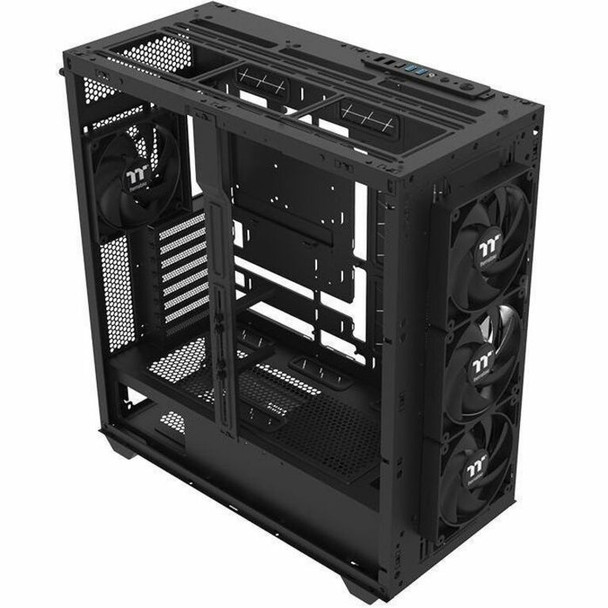

Four 140mm CT140 Fans Pre-installed

Four 140mm CT140 fans come pre-installed in the chassis, providing effective cooling support to ensure optimal system performance.

Superior Cooling Support

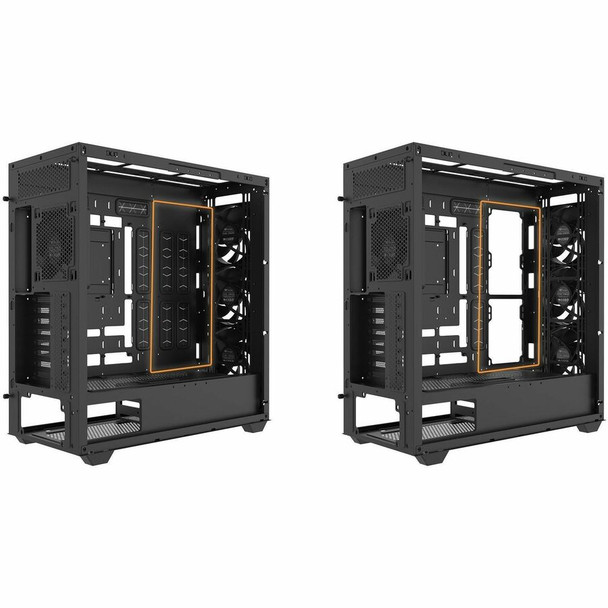

Up to fourteen 120mm or nine 140mm fans can be installed. With the fan cover on, it supports one E-ATX/EEB motherboard; with the cover off, it fits three 120mm fans.

GPU Holder

The AX500 series chassis features a built-in graphics card holder for added support, preventing sagging with multiple GPUs.

Storage Support

Two drive cages under the PSU cover hold up to four hard drives, while an additional drive plate behind the motherboard supports one 3.5 or two 2.5 hard drives.Series
AX SeriesModel
AX500CASE TYPE
Full TowerPANEL
Steel + TGColor
BlackMATERIAL
SPCCCOOLING SYSTEM
140 x 140 x 25 mm CT140 fan (1500rpm, 30.5 dBA) x 4Drive Bays
-Accessible
-Hidden
5 x 3.5" , 1 x 2.5" or 6 x 2.5"EXPANSION SLOTS

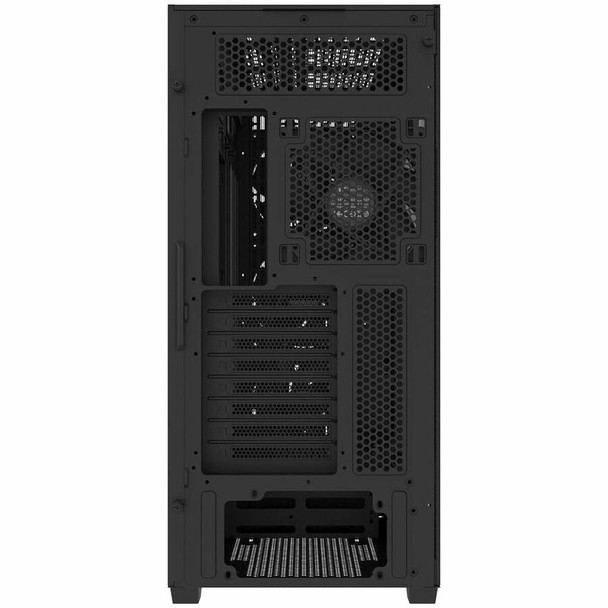

8MOTHERBOARDS
6.7" x 6.7" (Mini ITX), 9.6" x 9.6" (Micro ATX), 12" x 9.6" (ATX) ,
12" x 13" (E-ATX), SSI-CEB, SSI-EEBHidden-Connector Motherboard
9.6" x 9.6" (Micro ATX), 12" x 9.6" (ATX)I/O Port
USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1PSU
Standard PS2 PSU (optional)FAN SUPPORT
Front:
4 x 120mm ,3x 120mm , 2x 120mm , 1x 120mm
3 x 140mm , 2x 140mm , 1x 140mm
Top:
3 x 120mm , 2x 120mm , 1x 120mm
3 x 140mm , 2x 140mm , 1x 140mm
Rear:
1 x 120mm , 1 x 140mm
Right:
3 x 120mm , 2x 120mm , 1x 120mm
2 x 140mm , 1x 140mm
Power Cover:
3 x 120mm , 2x 120mm , 1x 120mmRADIATOR SUPPORT
Front (AIO):
1 x 360mm, 1 x 240mm, 1 x 120mm
1 x 420mm, 1 x 280mm, 1 x 140mm
Top (AIO):
1 x 360mm, 1 x 240mm, 1 x 120mm
1 x 420mm, 1 x 280mm, 1 x 140mm
Rear(AIO):
1 x 120mm , 1 x 140mmCLEARANCE
CPU cooler height limitation: 185mm(Max)
VGA length limitation:460mm(Max)
PSU length limitation: 200mm (Max)Item Dimension (L inchxW inchxH inch)
25 x 26 x 14

Weight
66.00lb

Warranty Information
3 years

Specs

Power Description
Power Supply Installed	No
Physical Characteristics
Product Material	Steel Tempered Glass SPCC
Form Factor	Full-tower
Cooler Type	Fan/Liquid Cooler
Product Color	Black
Height	21.7"
Color Family	Black
Maximum GPU Length	18.11"
Maximum PSU Length	7.87"
Width	9.8"
Depth	21.6"
Maximum CPU Cooler Height	7.28"
Warranty
Limited Warranty	3 Year
I/O Expansions
Total Number of Expansion Slots	8
Interfaces/Ports
Total Number of Audio Out Ports	1
USB Port Details	1 x USB 3.2 (Gen 2) Type C 2 x USB 3.0 Type-A
Total Number of USB Ports	3
Total Number of Audio In Ports	1
Bays
Number of Internal 2.5" Bays	6
Number of Total Expansion Bays	11
Number of Internal 3.5" Bays	5
General Information
Brand Name	Thermaltake
Manufacturer Website Address	http://www.thermaltakeusa.com
Marketing Information	Compatible with Hidden-Connector Motherboards The AX500 Full Tower Chassis supports up to one E-ATX/EEB motherboard, and the motherboard tray has cutouts for the latest hidden-connector ATX and micro-ATX motherboards. Compatible with hidden-connector motherboards: ASUS BTF Series MSI PROJECT ZERO Series GIGABYTE PROJECT STEALTH Series Excellent Radiator Support Users can install dual 420mm/360mm radiators on the top and front of the chassis for superior cooling. Note: The top fan + radiator thickness limit is 82mm Four 140mm CT140 Fans Pre-installed Four 140mm CT140 fans come pre-installed in the chassis, providing effective cooling support to ensure optimal system performance. Superior Cooling Support Up to fourteen 120mm or nine 140mm fans can be installed. With the fan cover on, it supports one E-ATX/EEB motherboard; with the cover off, it fits three 120mm fans. GPU Holder The AX500 series chassis features a built-in graphics card holder for added support, preventing sagging with multiple GPUs. Storage Support Two drive cages under the PSU cover hold up to four hard drives, while an additional drive plate behind the motherboard supports one 3.5" or two 2.5" hard drives. Drive Plate 1 x 3.5" HDD or 2 x 2.5" SSD Drive Cages 4 x 3.5" HDD or 4 x 2.5" SSD Tidy Cable Management The AX500 series chassis offers ample cable management clearance with multiple anchor points behind the motherboard, and includes Velcro straps and cable ties for organization. Superior Hardware Support The AX500 Full Tower Chassis supports a CPU cooler up to 185mm, a GPU up to 460mm, and a power supply up to 200mm. It comes with four CT140 fans and supports up to fourteen 120mm or nine 140mm fans, along with dual 420mm/360mm radiators on the top and front for superior cooling and premium expansion options. Dimensions 550 248 548mm CPU Cooler Max height 185mm Motherboard 6.7" x 6.7" (Mini ITX), 9.6" x 9.6" (Micro ATX), 12" x 9.6" (ATX) , 12" x 13" (E-ATX), SSI-CEB, SSI-EEB PSU Max length 200mm GPU Length limitation 460mm Fan Capacity 120mm 140mm Radiator Capacity 120mm 140mm 240mm 280mm 360mm 420mm Perfect Dust Protection The AX500 Full Tower Chassis features dust filters on the front, top, bottom, and motherboard sides to protect the system.
Product Type	Gaming Computer Case
Product Name	AX500 Full Tower Chassis
Manufacturer	Thermaltake Technology Co., Ltd
Manufacturer Part Number	CA-11D-00F1WN-00
Product Model	AX500
Product Series	AX
Technical Information
Motherboard Supported	Mini ITX Micro ATX ATX EATX SSI CEB SSI EEB
Installed Fan Size	5.51"
Installed Fan Size Details	4 x 140mm
Fan Supported Details	<p><b>Front:</b></p><p>4 x 120mm ,3x 120mm , 2x 120mm , 1x 120mm</p><p>3 x 140mm , 2x 140mm , 1x 140mm</p><p><b>Top:</b></p><p>3 x 120mm , 2x 120mm , 1x 120mm</p><p>3 x 140mm , 2x 140mm , 1x 140mm</p><p><b>Rear:</b></p><p>1 x 120mm , 1 x 140mm</p><p><b>Right:</b></p><p>3 x 120mm , 2x 120mm , 1x 120mm</p><p>2 x 140mm , 1x 140mm</p><p><b>Power Cover:</b></p><p>3 x 120mm , 2x 120mm , 1x 120mm</p>
Window Panel Location	Left Side
Number of Fans Supported	14
Features	Built-in GPU Holder Cable Management Dust Filter Reset Button LED Button
Window Panel	Yes
Fan Size Supported	4.72" 5.51"
Number of Fans Installed	4
