Thermaltake View 300 MX Mid Tower Chassis (ca-1p6-00m1wn-00)

This item is brand-new, factory sealed.

View 300 MX Mid Tower Chassis

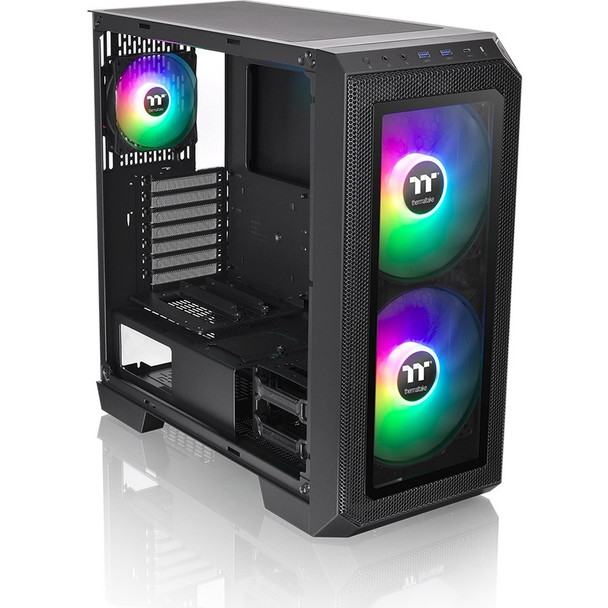

Designed with dual front panels and featuring two pre-installed 200mm ARGB PWM fans at the front and one 120mm ARGB PWM fan at the rear, the View 300 MX Mid-Tower Chassis provides optimal cooling performance while allowing you to choose your own style and front panel design.


View 300 MX

Pre-installed Two 200mm ARGB PWM Fans & One 120mm

ARGB PWM Fan for Massive Airflow


Choose your style with dual front panels!

Designed to push the beloved View Series lineup to another level, the View 300 MX Mid-Tower Chassis features two pre-installed 200mm ARGB PWM fans in the front and one 120mm ARGB PWM fan at the rear to provide optimal cooling performance. Noteworthy, the View 300 MX series is the first chassis of the Thermaltake collection that comes with dual front panels, including a tempered glass panel and a perforated metal panel featuring the TT Logo, allowing users to choose their own style. Moreover, the View 300 MX features rotational PCI-E Slots, removable filters, a removable PSU cover, and supports up to E-ATX motherboards (12 x 13), up to a 360mm Radiator on the front, top and M/B side. These merits make the View 300 MX an eye-catching chassis that is ideal for you to make your next build epic, high-performing, and one of a kind.

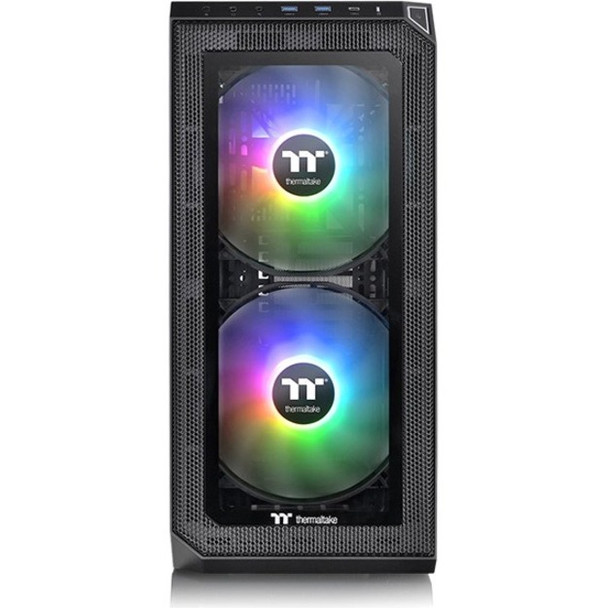

Pre-installed Two 200mm ARGB PWM Fans & One 120mm ARGB PWM Fan

Two 200mm ARGB PWM fans and one 120mm ARGB PWM fan are pre-installed, efficiently moving a considerable amount of air through the chassis with minor noise thanks to the fan speed control and through the PWM function. Furthermore, the LED lighting effect can be manipulated with a physical button or motherboard supported software. SERIES
View MODEL
View 300 MX CASE TYPE
Mid Tower SIDE PANEL
4mm Tempered Glass x 1 COLOR
Black MATERIAL
SPCC + ABS COOLING SYSTEM
Front(intake): 200 x 200 x 30 mm ARGB PWM fan (1000rpm, 35.5 dBA) x 2
Rear(exhaust): 120 x 120 x 25 mm ARGB PWM fan (1500rpm, 27.2 dBA) x 1 DRIVE BAYS
2 x 3.5", 4 x 2.5" or 6 x 2.5" EXPANSION SLOTS
7 (Rotatable Patented Design) MOTHERBOARDS
6.7" x 6.7" (Mini ITX), 9.6" x 9.6" (Micro ATX),
12" x 9.6" (ATX), 12" x 13" (E-ATX) I/O PORT

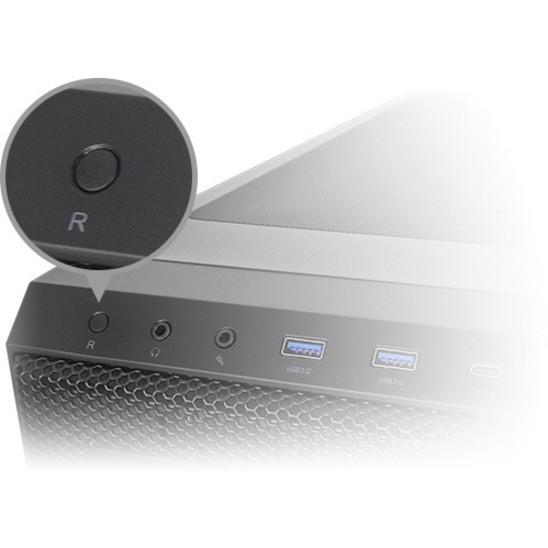

USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1 PSU
Standard PS2 PSU (optional) FAN SUPPORT
Front: 3 x 120mm, 2 x 120mm, 1 x 120mm
3 x 140mm, 2 x 140mm, 1 x 140mm
2 x 200mm, 1 x 200mm
Top: 3 x 120mm, 2 x 120mm, 1 x 120mm,
2 x 140mm, 1 x 140mm
1 x 200mm
Right(M/B Side): 3 x 120mm, 2 x 120mm, 1 x 120mm (Without HDD Rack)
Rear: 1 x 120mm RADIATOR SUPPORT
Front: 1 x 360mm, 1 x 240mm, 1 x 120mm
1 x 280mm, 1 x 140mm
Top: 1 x 360mm, 1 x 240mm, 1 x 120mm
1 x 280mm, 1 x 140mm
Right(M/B Side): 1 x 360mm, 1 x 240mm, 1 x 120mm(Without HDD Rack)
Rear: 1 x 120mm CLEARANCE
CPU cooler height limitation: 175mm
VGA length limitation: 280mm(With reservoir)
400mm(Without reservoir)
PSU length limitation: 200mmItem Dimension (L inchxW inchxH inch)
25 x 14 x 20

Weight
51.00 lb

Warranty Information
3 Years
