Thermaltake View 270 Plus TG ARGB Mid Tower Chassis (ca-1y7-00m1wn-01)

This item is brand-new, factory sealed.

View 270 Plus TG ARGB Mid Tower Chassis

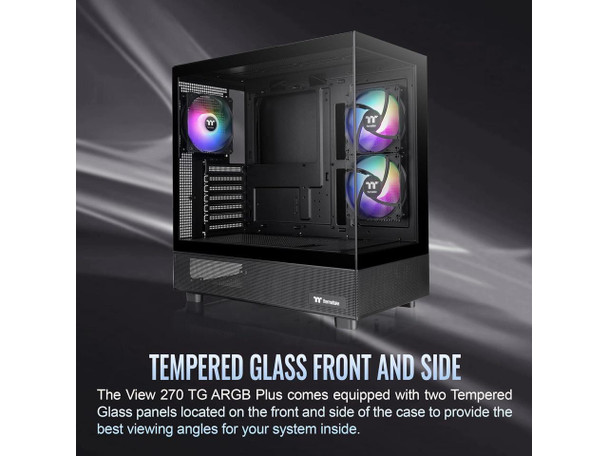

Tempered Glass Front and Side

The View 270 TG ARGB Plus comes equipped with two Tempered Glass panels located on the front and side of the case to provide the best viewing angles for your system inside.

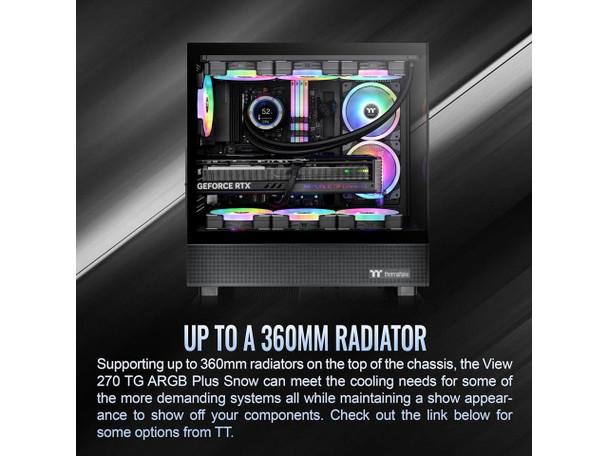

Up to a 360mm Radiator

Supporting up to 360mm radiators on the top of the chassis, the View 270 TG ARGB Plus can meet the cooling needs for some of the more demanding systems all while maintaining a show appearance to show off your components. Check out the link below for some options from TT.



Three 120mm ARGB Lite Fans Pre-installed

The View 270 TG comes with three 120mm ARGB Lite Fans, with two being mounted on the side to provide intake and another mounted in the rear of the chassis to provide exhaust. Daisy chain connections for 5V ARGB and PWM fan control make wiring simple and lighting can be controlled through motherboard software from Asus, Gigabyte, MSI, and ASRock.



Space for Your Storage

The View 270 TG Plus can support up to two 2.5 SSDs or two 3.5 HDDs, in one dedicated location for each and one shared location for each as well.



Handy I/O Ports

Two USB 3.0, one USB 3.2 Gen 2 Type C and HD Audio ports are placed on the top panel to grant direct access when needed.



Sync with Motherboard RGB Software

Designed to synchronize with ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync, and ASRock Polychrome. It supports motherboards with a 5V addressable RGB header, allowing you to control the lights directly from the software mentioned above without installing any extra lighting software or controllers. For more details, please visit ASUS, GIGABYTE, MSI, and ASRock official websites.P/N
CA-1Y7-00M1WN-01

SERIES
View

CASE TYPE
Mid Tower

SIDE PANEL
Tempered Glass x 2

COLOR
Black

MATERIAL
SPCC

COOLING SYSTEM
Right(intake):
120 x 120 x 25 mm ARGB Lite fan (1000rpm, 22.3 dBA) x 2
Rear(exhaust):
120 x 120 x 25 mm ARGB Lite fan (1000rpm, 22.3 dBA) x 1

DRIVE BAYS
2 x 3.5", 1 x 2.5" or 2 x 2.5"

EXPANSION SLOTS
7

MOTHERBOARD
6.7" x 6.7" (Mini ITX), 9.6" x 9.6" (Micro ATX),
12" x 9.6" (ATX), 12" x 13" (E-ATX)

I/O PORT
USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1

PSU
Standard PS2 PSU (optional)

FAN SUPPORT
Top:
3 x 120mm, 2 x 120mm, 1 x 120mm
2 x 140mm, 1 x 140mm
Right (M/B Side):
2 x 120mm, 1 x 120mm
Rear:
1 x 120mm, 1 x 140mm
Power Cover:
3 x 120mm, 2 x 120mm, 1 x 120mm

RADIATOR SUPPORT
Top:
1 x 360mm, 1 x 240mm, 1 x 120mm
Rear:
1 x 120mm

CLEARANCE
CPU cooler max height: 180mm
VGA max length: 420mm
PSU max length: 220mmItem Dimension (L inchxW inchxH inch)
21 x 12 x 21

Weight
39 lbs

Warranty Information
3 Years
