Thermaltake

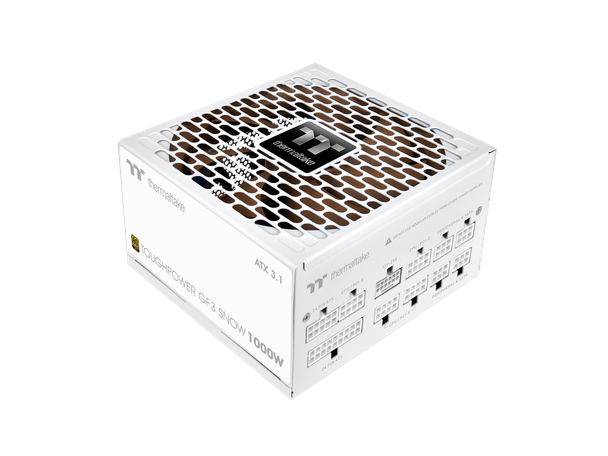

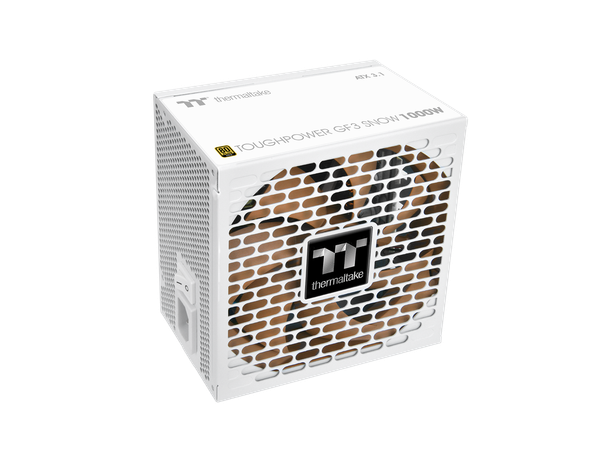

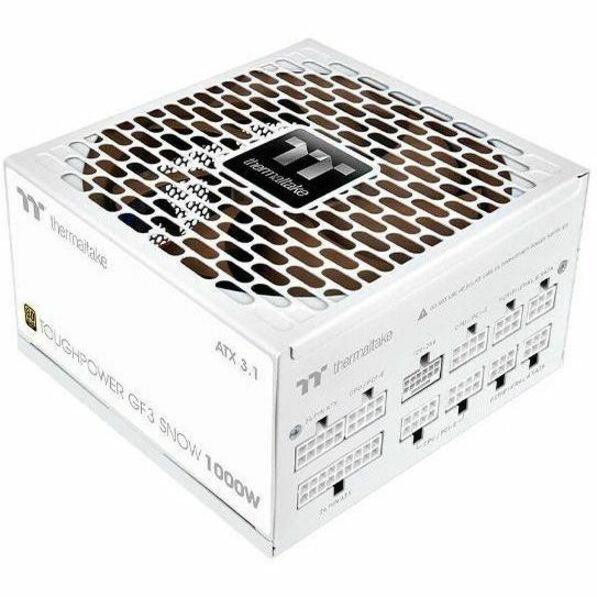

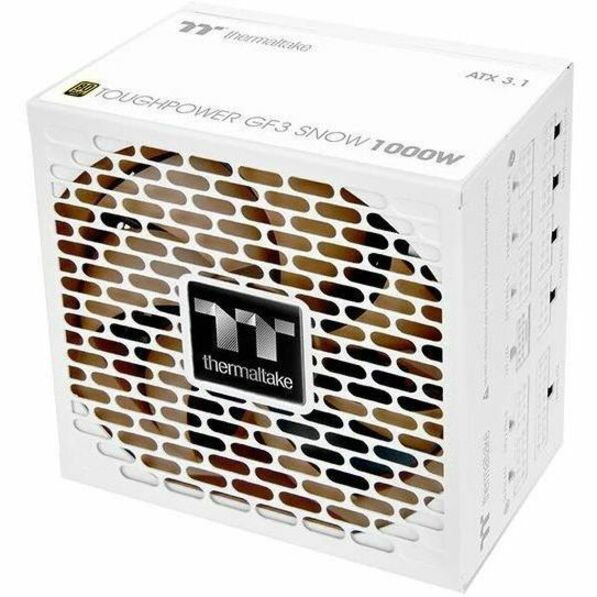

Thermaltake PSTPD1000FNFAGUS Toughpower GF3 1000W 80+ Gold Fully Modular PSU - Snow White
- SKU:
- 21527056
- MPN:
- ps-tpd-1000fnfagu-s
- Availability:
- Usually ships the same or next business day.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 06/27/2026 06:06:49 AM PST
- Stock Update:
- 06/27/2026 06:06:49 AM PST
Description
This item is brand-new, factory sealed.
Next-Gen Ready with ATX 3.1 & PCIe Gen5.1
Built to meet Intel ATX 3.1 power supply requirements and equipped with a native 12+4pin PCIe Gen5.1 modular connector to support next-generation GPUs.
Premium Japanese 105°C Capacitors
All main capacitors are high-quality Japanese-made for long-lasting reliability and stability under heavy loads.
High Amperage Single +12V Rail & DC-DC + LLC Design
Provides stable and powerful +12V output with precise voltage regulation for high-performance systems.

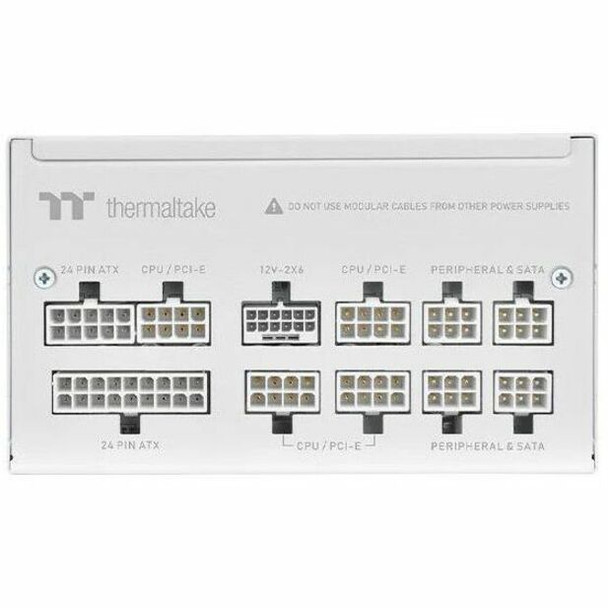

Fully Modular with Flat Cables
High efficiency Zero Cable platform with low-profile flat cables improves airflow and cable management.
Industry-Grade Safety Protections
Built-in protections including Over Current Protection (OCP), Over Voltage Protection (OVP), Under Voltage Protection (UVP), Over Power Protection (OPP), Over Temperature Protection (OTP), and Short Circuit Protection (SCP) safeguard your system against electrical faults, providing peace of mind and reliable operation.
OCP
Over Current Protection
OVP
Over Voltage Protection
UVP
Under Voltage Protection
OPP
Over Power Protection
SCP
Short Circuit Protection
OTP
Over Temperature Protection
80 PLUS Gold Certified
Delivers up to 90% power conversion efficiency under real-world load conditions, reducing wasted energy and heat.
Eco & Power Standards Support
Supports Intel Deep Power Down C6/C7 states, ErP ready, and complies with Energy Star, RoHS, and WEEE standards.
Features
- FCC
- ICES
- CB
- cTUVus
Energy Efficiency Compliance:
Energy-related Products Directive (ErP)
Energy Star:
Yes
Energy Efficiency Certification:
80 Plus Gold
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Waste Electrical and Electronic Equipment Directive (WEEE)
Specs
| Power Description | |
| Input Frequency | 47Hz - 63Hz |
| Number of +12V Rails | 1 |
| Output Power | 1000 W |
| Output Current |
|
| Input Voltage Range | 100 V AC - 240 V AC |
| Input Voltage |
|
| Output Voltage Detail |
|
| Output Voltage |
|
| Physical Characteristics | |
| Form Factor | ATX |
| Product Color | Snow |
| Height | 3.4" |
| Color Family | White |
| Width | 5.9" |
| Depth | 5.5" |
| Warranty | |
| Limited Warranty | 7 Year |
| Interfaces/Ports | |
| Number of (6+2 pin) PCI Express Power Connectors | 4 |
| PCI Express Version | 5.1 |
| Number of (4+4 pin) CPU Power Connectors | 2 |
| Number of SATA Power Connectors | 6 |
| PCI Express Connector | Yes |
| General Information | |
| Brand Name | Thermaltake |
| Manufacturer Website Address | http://www.thermaltakeusa.com |
| Marketing Information | Next-Gen Ready with ATX 3.1 & PCIe Gen5.1 Built to meet Intel ATX 3.1 power supply requirements and equipped with a native 12+4pin PCIe Gen5.1 modular connector to support next-generation GPUs. Premium Japanese 105°C Capacitors All main capacitors are high-quality Japanese-made for long-lasting reliability and stability under heavy loads. High Amperage Single +12V Rail & DC-DC + LLC Design Provides stable and powerful +12V output with precise voltage regulation for high-performance systems. Fully Modular with Flat Cables High efficiency Zero Cable platform with low-profile flat cables improves airflow and cable management. Industry-Grade Safety Protections Built-in protections including Over Current Protection (OCP), Over Voltage Protection (OVP), Under Voltage Protection (UVP), Over Power Protection (OPP), Over Temperature Protection (OTP), and Short Circuit Protection (SCP) safeguard your system against electrical faults, providing peace of mind and reliable operation. OCP Over Current Protection OVP Over Voltage Protection UVP Under Voltage Protection OPP Over Power Protection SCP Short Circuit Protection OTP Over Temperature Protection 80 PLUS Gold Certified Delivers up to 90% power conversion efficiency under real-world load conditions, reducing wasted energy and heat. Eco & Power Standards Support Supports Intel Deep Power Down C6/C7 states, ErP ready, and complies with Energy Star, RoHS, and WEEE standards. |
| Product Type | Power Supply |
| Product Name | Toughpower GF3 1000W Power Supply |
| Manufacturer | Thermaltake Technology Co., Ltd |
| Manufacturer Part Number | PS-TPD-1000FNFAGU-S |
| Product Series | GF |
| Product Line | Toughpower GF3 |
| Technical Information | |
| Fan Diameter | 135 mm |
| Specification Compliance | ATX 3.1 |
| Efficiency | 90% |
| Number of Fans | 1 |
| Fan Bearing Type | Fluid Dynamic Bearing |
| Protection Type |
|
| Modular | Yes |
| Power Factor Correction (PFC) | Active |
| Modular Type | Fully Modular |
| Environmental Conditions | |
| Maximum Operating Temperature | 104°F (40°C) |
| Minimum Operating Temperature | 32°F (0°C) |
