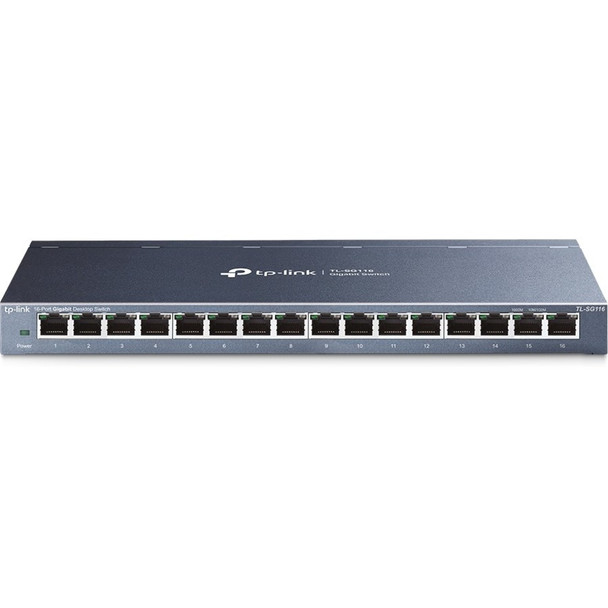

TP-Link TL-SG116 - 16-Port Gigabit Ethernet Network Switch - Limited Lifetime Protection
(No reviews yet)
Write a Review
- SKU:
- 18177550
- MPN:
- 220358
- Availability:
- Usually ships the same or next business day. In stock at our CA, FL, IL, MS, NJ, TX warehouses.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 04/23/2025 05:32:04 AM PST
Bulk discount rates
Below are the available bulk discount rates for each individual item when you purchase a certain amount
| Buy 2 | and pay only $71.89 each 71.89 |
| Buy 3 - 9 | and pay only $70.01 each 70.01 |
| Buy 10 - 15 | and pay only $68.83 each 68.83 |
| Buy 16 or above | and pay only $66.62 each 66.62 |
- Stock Update:
- 04/23/2025 05:32:04 AM PST
Description
This item is brand-new, factory sealed.
What This Product DoesThe TL-SG116E Unmanaged Pro switch is an ideal upgrade on unmanaged switches, suited for home and small business networks. A plug-and-play design makes for easy deployment without the need for a technician, while a robust metal casing provides better protection for components. Equipped with intelligent management features like QoS, VLAN, IGMP Snooping and more, this switch is effective in both simple and more demanding network environments.
Easy to Use
Connecting devices to TL-SG116E is simple. Auto MDI/MDI-X crossover on all ports eliminate the need for crossover cables or uplink ports. Auto-negotiation on each port detects the link speed of a network device and intelligently adjusts settings for compatibility and optimal performance. Standards and Protocols
IEEE 802.3i /802.3u /802.3ab /802.3x /802.1p Interface
16 10/100/1000Mbps Ports, Auto-Negotiation, Auto-MDI/MDIX Fan Quantity
Fanless Power Consumption
Maximum: 10.0W External Power Supply
External Power Adapter (Output: 12VDC / 1.0A) LED Indicator
System Power
Link/Act indicators per port built into each RJ-45 port Packet Forwarding Rate
23.8Mpps MAC Address Table
8K Packet Buffer Memory
4.1Mb Jumbo Frame
10KB Advanced Features
Green Technology
802.3X Flow Control
802.1p/DSCP QoS
IGMP Snooping Transfer Method
Store and Forward Certification
FCC, CE, RoHS Package Contents
16-Port 10/100/1000Mbps Desktop Switch
Power Adapter
Installation Guide
Rubber Feet Environment
Operating Temperature: 0oC to 40 oC (32 oF to104oF)
Storage Temperature: -40oC to 70 oC (-40 oF to158oF)
Operating Humidity: 10% to 90% non-condensing
Storage Humidity: 5% to 90% non-condensingItem Dimension (L inchxW inchxH inch)
17 x 7 x 3
Weight
3.00lb
Warranty Information
Limited Lifetime
Features
Package Contents:
Yes
Restriction of Hazardous Substances (RoHS)
China
- 16-Port Gigabit Desktop Switch
- Power Adapter
- Installation Guide
- Rubber Feet
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Country of Origin:
China
Specs
| Power Description | |
| Redundant Power Supply Supported | No |
| Power Source | Power Adapter |
| Power Consumption | 10 W |
| Physical Characteristics | |
| Product Material | Steel |
| Form Factor |
|
| Height | 1" |
| Width | 11.3" |
| Depth | 4.4" |
| Warranty | |
| Limited Warranty | 2 Year |
| Interfaces/Ports | |
| Uplink Port | No |
| Stack Port | No |
| Port/Expansion Slot Details | 16 x Gigabit Ethernet Network |
| Total Number of Network Ports | 16 |
| Modular | No |
| General Information | |
| Brand Name | TP-Link |
| Manufacturer Website Address | http://www.tp-link.com/us |
| Marketing Information | What This Product Does The TP-Link 16-Port 10/100/1000Mbps Desktop Switch provides you an easy way to make the transition to Gigabit Ethernet. Increase the speed of your network server and backbone connections, or make Gigabit to the desktop a reality. Plug and Play design, with no configuration required, makes the product easy to use. Moreover, TL-SG116 adopts lower power consumption design. With the innovative energy-efficient technology, the TL-SG116 can save power consumption, making it an eco-friendly solution for your home or office network. Gigabit Switch Featured with 16 10/100/1000Mbps ports, TL-SG116 greatly expands your network capacity, enabling instant large files transferring. So, power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network instantly. Go Green With Your Ethernet You now have the choice to go green when upgrading to a gigabit network! This new generation TL-SG116 16-Port 10/100/1000Mbps Desktop Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network. Traffic Optimization 802.1p and DSCP QoS enable smooth latency-sensitive traffic such as voice and video, and IGMP Snooping optimizes the Multicast data stream. Easy to use The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminate the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance. Moreover, fanless design ensures quiet operation. More from the Manufacturer |
| Product Type | Ethernet Switch |
| Product Name | 16-Port Gigabit Desktop Switch |
| Manufacturer | TP-LINK Technologies Co., Ltd |
| Manufacturer Part Number | TL-SG116 |
| Product Model | TL-SG116 |
| Media & Performance | |
| Ethernet Technology | Gigabit Ethernet |
| Media Type Supported | Twisted Pair |
| Network Technology | 10/100/1000Base-T |
| Network & Communication | |
| Layer Supported | 2 |
| Networking Standards |
|
