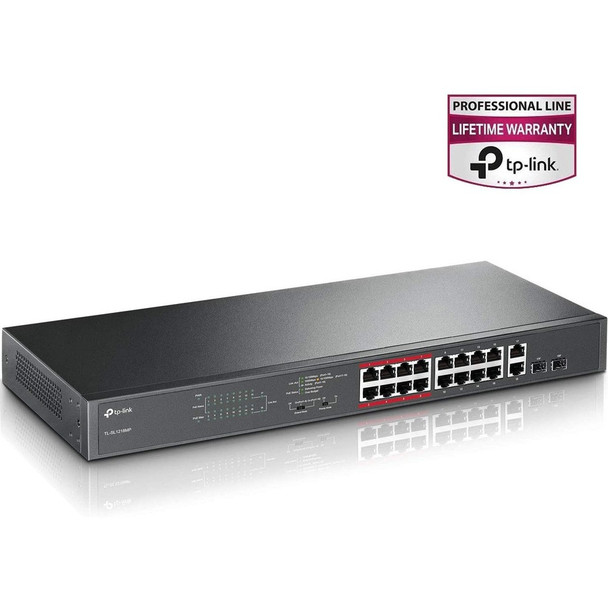

TP-Link TL-SL1218MP - 16 Port 10/100Mbps Fast Ethernet PoE Switch - Limited Lifetime Protection (226584)

SKU:
19039726
MPN:
226584
Availability:
Out of stock
Stock Update:
07/07/2022 11:10:54 AM PST
  • Main
  • Alternate-Image3
  • Alternate-Image2
  • Alternate-Image1

Out of stock

Stock Update:
07/07/2022 11:10:54 AM PST
Frequently bought together:

Description

This item is brand-new, factory sealed.

16 PoE+ 10/100Mbps RJ45 ports, 2 Gigabit RJ45 ports and 2 combo Gigabit SFP slots

Up to 250m data and power transmission under extend mode specially designed for surveillance system

Priority mode for port1-8 to guarantees the quality of sensitive applications like video monitor

High PoE power budget with up to 30W for each PoE port and 194W for all PoE ports

Easy to use, with no configuration and installation needed

Easy to Use PoE Switch with Innovative Design

Up To 250m Data and Power Transmission for Surveillance

High PoE Power Budget

TL-SL1218MP complies with the 802.3af/at PoE+ standard, supporting up to 30W power supply on each PoE port. The total high PoE power budget of up to 192W for the 16 PoE ports, making it ideal for small to medium business surveillance systems.

Up to 250m Transmission for Surveillance

TL-SL1218MP is a special designed PoE switch for IP surveillance applications. PoE switch makes surveillance installation simpler, safer and less expensive. With the extend mode, the PoE transmission distance reaches up to 250m* which makes it perfect for IP Camera deployment in large area coverage.

Video Quality Guaranteed

Priority mode guarantees the important data, such as video surveillance, delivered with the best priority passing the data fabric even when the traffic load is heavy. Hardware switch for easy configuration with no login required.
HARDWARE FEATURES
Interface
16 PoE+ 10/100Mbps RJ45 Ports
2 10/100/1000Mbps RJ45 Ports
2 Combo Gigabit SFP Slots
Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100ohm STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100ohm STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100ohm STP (maximum 100m)
1000BASE-X MMF, SMF
Fan Quantity
2 Fans
Power Supply
100-240V AC, 50/60 Hz
Backup Bandwidth
7.2 Gbps
PoE+ Ports(RJ45)
Standard: 802.3at/802.3af compliant
PoE Ports: Port1- Port16
PoE Power Budget: 192W
Mac Address Table
8K
Max Power Consumption
18.7 W (no PD connected)
217.2 W (with 192W PD connected)
Max Heat Dissipation
63.9 BTU/h (no PD connected)
741.2 BTU/h (with 192W PD connected)
SOFTWARE FEATURES
Advanced Features
Compatible with IEEE 802.3at/af compliant devices
Port Priority Mode
Extend Mode (Up to 250m PoE power supply and data transmission)
Mac Address Auto-Learning And Auto-Aging
IEEE802.3x Flow Control
Transmission Method
Store-And-Forward
OTHERS
Certification
FCC, RoHS
Package Contents
TL-SL1218MP
Power Cable
Installation Guide
Environment
Operating Temperature: 0oC to 40oC (32oF to 104oF)
Storage Temperature: -40oC to 70oC (-40oF to 158oF)
Operating Humidity: 10% to 90% non-condensing
Storage Humidity: 5% to 90% non-condensing
Item Dimension (L"xW"xH")
21 x 10 x 4
Weight
7.00 LB
Warranty Information
Limited Lifetime


Package Contents:
  • 16-Port 10/100Mbps + 2-Port Gigabit Unmanaged PoE Switch
  • Power Cable
  • Installation Guide
  • 2 x Mounting Brackets and the Fittings

Features

Package Contents:
  • 16-Port 10/100Mbps + 2-Port Gigabit Unmanaged PoE Switch
  • Power Cable
  • Installation Guide
  • 2 x Mounting Brackets and the Fittings



Environmental Certification:
RoHS



Environmentally Friendly:
Yes



Country of Origin:
China



Specs

Management & Protocols
ManageableNo
Power Description
Power SourcePower Supply
PoE Budget250 W
Frequency
Input Voltage
PoE (RJ-45) PortYes
Power Consumption15 W
Physical Characteristics
Product MaterialMetal
Form FactorRack-mountable
Height1.7"
Compatible Rack Unit1U
Width17.3"
Depth7.1"
Warranty
Limited WarrantyLifetime
Interfaces/Ports
Network (RJ-45)Yes
Port/Expansion Slot Details
Total Number of Network Ports16
ModularYes
I/O Expansions
Shared SFP SlotYes
Number of Total Expansion Slots2
Number of SFP Slots2
Expansion Slot TypeSFP (mini-GBIC)
General Information
Brand NameTP-Link
Manufacturer Website Addresshttp://www.tp-link.com/us
Marketing InformationEasy to Use PoE Switch with Innovative Design
Up To 250m Data and Power Transmission for Surveillance
High PoE Power Budget
TL-SL1218MP complies with the 802.3af/at PoE+ standard, supporting up to 30W power supply on each PoE port. The total high PoE power budget of up to 192W for the 16 PoE ports, making it ideal for small to medium business surveillance systems.
Up to 250m Transmission for Surveillance
TL-SL1218MP is a special designed PoE switch for IP surveillance applications. PoE switch makes surveillance installation simpler, safer and less expensive. With the extend mode, the PoE transmission distance reaches up to 250m which makes it perfect for IP Camera deployment in large area coverage.
Video Quality Guaranteed
Priority mode guarantees the important data, such as video surveillance, delivered with the best priority passing the data fabric even when the traffic load is heavy. Hardware switch for easy configuration with no login required.
More from the Manufacturer
Product TypeEthernet Switch
Product Name16-Port 10/100Mbps + 2-Port Gigabit Unmanaged PoE Switch
ManufacturerTP-LINK Technologies Co., Ltd
Manufacturer Part NumberTL-SL1218MP
Product ModelTL-SL1218MP
Media & Performance
Ethernet Technology
Media Type Supported
Network Technology
Network & Communication
Layer Supported2
Networking Standards
