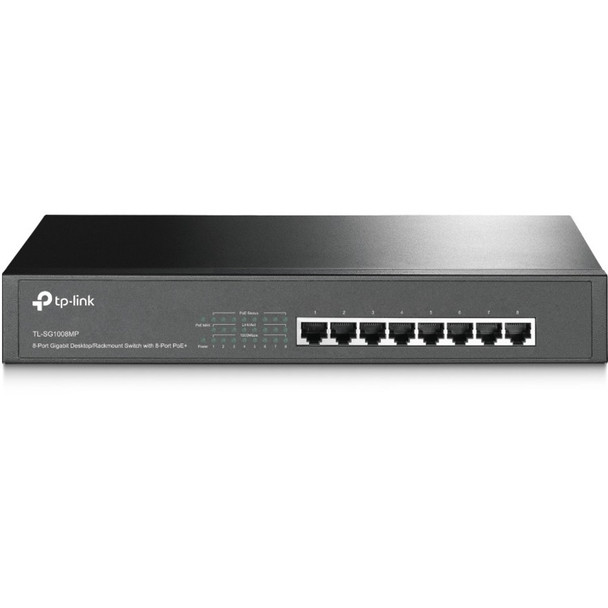

TP-Link TL-SG1008MP - 8-Port Gigabit PoE Switch - Limited Lifetime Protection

This item is brand-new, factory sealed.

What This Product Does
The TL-SG1008MP is an 8-Port Gigabit Desktop/Rack mountable Switch with all 8 ports supporting the IEEE 802.3af/at, PoE+ standard. It provides a simple way to expand a wired network by transferring power and data over a single Ethernet Cable. With a total power budget of 126W, up to 30W per port, TL-SG1008MP can power more high-powered devices such as wireless Access Points (APs), IP Cameras or IP Phones. Moreover, with innovative energy-efficient technology, the TL-SG1008MP reduces power consumption, making it an eco-friendly solution for your business network.
How This Product Works
All 8 ports of TL-SG1008MP support Power over Ethernet (IEEE 802.3af/at, PoE+) standard which can automatically detect and supply power to any IEEE 802.3af/at compliant device(s). The electrical power is transmitted along with data in a single cable, allowing you to expand your network where there is no electrical outlet, and feed the devices such as wireless APs, cameras, and phones.
Prioritized Power Supply
Priority (port 1 > port 2 > port 3 > port 4 > port 5 > port 6 > port 7 > port 8): This function helps protect the system if the power becomes overloaded. For example, if port 1, 2, 4 and 7 are using 30W (maximum power per port is 30W, the system power is 120W in total), and there is an additional device inserted into Port 3 at 25W, the system will cut off the power on Port 7 to protect the switch being overload. This means Port 1, 2 and 4 will use 30W, and Port 3 will use 25W, with no power will be supplied on Port 7 as it has the lowest priority among the ports in use.
Easy To Use
TL-SG1008MP is easy to install and use. It requires no configuration or installation. With its Desktop/Rack mountable design, outstanding performance and quality, the TP-Link TL-SG1008MP 8-Port Gigabit Desktop/Rack mountable Switch with 8-Port PoE is a great choice for expanding your home or office network.
HARDWARE FEATURES
Interface
8 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100 Omega STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100 Omega STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100 Omega STP (maximum 100m)
Fan Quantity
1
Physical Security Lock
No
Power Supply
100-240VAC, 50/60Hz
PoE+ Ports(RJ45)
Standard: 802.3at/af (30W)
PoE+ Ports: 8 Ports
Total PoE Budget: 126W
Backbound Bandwidth
16Gbps
Mac Address Table
4K
Buffer Size
1.5Mbits
Mounting
13" and 19" 1U rack mountable
Max Power Consumption
9.9W(no PD load)
144.4W(with 124W PD load)
Max Heat Dissipation
33.7BTU/h(no PD load)
492.6BTU/h(with 124W PD load)SOFTWARE FEATURES
Advanced Features
Compatible With IEEE 802.3af/at Compliant power devices (PD)
Port Priority Function
MAC Address Auto-Learning And Auto-Aging
IEEE802.3x Flow Control
Transfer Method
Store-And-ForwardOTHERS
Certification
FCC, RoHS
Package Contents
TL-SG1008MP
Power Cord
Installation Guide
Rackmount Kit
Rubber Feet
Consumption
9.5 watts (max. no PD connected)
140.1 watts (max. with 126w PD connected)
Environment
Operating Temperature: 0^oC 40^oC (32^oF 104^oF)
Storage Temperature: -40^oC 70^oC (-40^oF 158^oF)
Operating Humidity: 10%-90% non-condensing
Storage Humidity: 5%-90% non-condensingItem Dimension (L"xW"xH")
16 x 10 x 4

Weight
5.45 lbs

Warranty Information
Limited Lifetime

Package Contents:

• 8-Port Gigabit Desktop/Rackmount Switch with 8-Port PoE+
• Power Cord
• Installation Guide
• Rackmount Kit
• Rubber Feet
