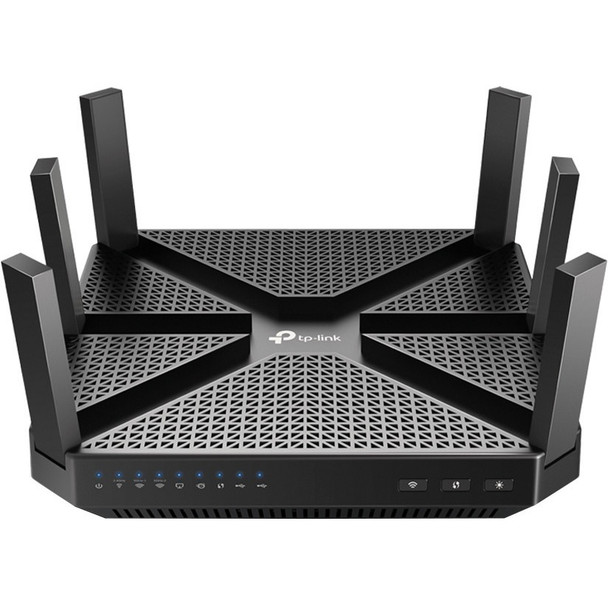

TP-Link Archer A20 - Wi-Fi 5 IEEE 802.11ac Ethernet Wireless Router ARCHER A20_V3

This item is brand-new, factory sealed.

Ultra-Fast Processing: An 1.8 GHz 64-bit CPU handles all

4000 Mbps Wi-Fi Speed: 1625 Mbps on both 5G bands and 750 Mbps on 2.4G band

No More Buffering: MU-MIMO and Tri-Band enable the router to connect more devices at the same time

Far-Reaching Range: RangeBoost technology boosts Wi-Fi to farther coverage and Beamforming focuses signal to connect devices

Secure Your Network: A free lifetime subscription of HomeCare protects your network from malicious attack and you can manage who and how to access the network

Easy Setup: With intuitive Phone UI or Tether app, your network is ready to go within a minute

Gigabit Wired Speeds: 1 WAN and 4 LAN gigabit ports bring wired speeds to the maximum and Link Aggregation even doubles it to 2Gbps


UNRIVALED TRI-BAND PERFORMANCE

AC4000 MU-MIMO WiFi Router Archer A20


FASTER WIFI EXPERIENCE FOR MORE DEVICES


NitroQAM boosts speeds on all WiFi bands by 25% while Smart Connect and Airtime Fairness distribute dedicated WiFi streams to each device with speed and precision. With Tri-band and MU-MIMO Technology, Archer A20 allows more devices to communicate at the same time, keeping you connected no matter in the FPS gaming or online chatting with your friends.


POWERFUL PROCESSING FOR BETTER PERFORMANCE


Archer A20 powers every service, thread and application running on your network with a 1.8 GHz 64-bit CPU and delivers lag-free connections to gaming, streaming and mobile devices. 512 MB of RAM and three additional WiFi processors support the router's CPU and balance WiFi demand to keep your network running at top speed.


FAR-REACHING WIFI COVERAGE

From the bedroom to the basement to the backyard, Archer A20 delivers stronger WiFi across your home. RangeBoost and Beamforming work together to connect more devices from farther than ever.HARDWARE FEATURES
Processor
1.8 GHz CPU and three co-processors
Memory
512 MB
Standards and Protocols
802.11a/b/g/n/ac, 802.3ab
Ports
1x GE WAN
4x GE LAN
1x USB 2.0
1x USB 3.0Button
1x Power
1x Wi-Fi On/Off
1x WPS
1x Reset
1x LED On/OffLED Panel
1x Power
1x 2.4 GHz
1x 5 GHz-1
1x 5 GHz-2
1x Ethernet
1x Internet
1x WPS
1x USB 2.0
1x USB 3.0Antenna
6 external antennas
Wi-Fi Chipset Features
MU-MIMO
Beamforming
Airtime Fairness
RangeBoost
NitroQAMWIRELESS FEATURES
Signal Rate
750Mbps at 2.4GHz
1625Mbps at 5GHz
1625Mbps at 5GHzSOFTWARE FEATURES
System Tools
Time Settings
Diagnostics
Fw OTA Upgrade
Config backup/restore
Administration
Syslog
Statistics
LED ControlBasic Function
Network Map (Internet Status / Client List / Speedtest)
Internet Settings
Wireless Settings
USB Sharing Settings (USB Storage Sharing / FTP Server / Media Server)
HomeCare (Parental Control / Antivirus / QoS)
Guest Network Settings
TP-Link Cloud Settings
Multiple LanguagesProtocols
IPv4, IPv6
Advanced Functions
Working Mode (Router Mode or AP Mode)
Wireless Schedule
Time Machine
TP-Link DDNS
Parental Controls/Antivirus/QoS
IPv6
VPN Server (OpenVPN and PPTP Servers)
NAT Forwarding (DMZ / UPnP)
Link Aggregation (WAN / LAN)
Airtime Fairness
Smart ConnectSupported Operating Systems
OS Independent
Up to Windows 10, Mac OS 10.12 and LinuxSECURITY
Attack Defense
Malicious Content Filter
Intrusion Prevention System
Infected Device QuarantineAccess Control
Device-based whitelist / blacklist
Wi-Fi Security
Open
WEP
WPA-PSK
WPA2-PSKFirewall Features
Malicious Content Filter
Intrusion Prevention System
Infected Device QuarantineOTHERS
Smartphone/Tablet Requirements
Andriod 4.1 or higher iOS 8 or higherCertifications
FCC
CE
CE DFSPower Supply
100-240V 50/60HzEnvironment
Operating Temperature: 0^oC to 40^oC (32^oF to 104^oF)Storage Temperature: -40^oC to 70^oC (-40^oF to 158^oF)Operating Humidity: 10% to 90% non-condensingOperating Humidity: 10% to 90% non-condensing

Package Contents:

• AC4000 MU-MIMO Tri-Band Wi-Fi Router
• Power Adapter
• RJ45 Ethernet Cable
• Quick Installation Guide
