tp-link

TP-Link LS1005G - Litewave 5 Port Gigabit Ethernet Switch

(No reviews yet) Write a Review
SKU:
18059645
MPN:
242578
Availability:
Usually ships the same or next business day. In stock at our IL warehouse.
Shipping:
Calculated at Checkout
Stock Update:
12/22/2025 04:44:45 PM PST
  • Main
  • Alternate-Image4
  • Alternate-Image3
  • Alternate-Image2
  • Alternate-Image1
$27.86
Buy more, get it as low as $

Bulk discount rates

Below are the available bulk discount rates for each individual item when you purchase a certain amount

Buy 2 and pay only $22.41 each 22.41
Buy 3 and pay only $20.45 each 20.45
Buy 4 - 9 and pay only $19.05 each 19.05
Buy 10 - 18 and pay only $16.85 each 16.85
Buy 19 or above and pay only $16.30 each 16.3
Stock Update:
12/22/2025 04:44:45 PM PST

Description



This item is brand-new, factory sealed.

5 10/100/1000Mbos Auto-Negotiation RJ45 port, supporting Auto-MDI/MDIX

Green Ethernet technology saves power

IEEE 802.3X flow control provides reliable data transfer

Plastic casing, desktop or wall-mounting design

Plug and play, no configuration needed

Fanless design ensures quiet operation HARDWARE FEATURES
Standards and Protocols
IEEE 802.3i/802.3u/ 802.3ab/802.3x Interface
5x 10/100/1000Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports Fan Quantity
Fanless External Power Supply
External Power Adapter (Output: 5VDC/0.6A) Max Power Consumption
3.7W Max Heat Dissipation
12.6 BTU/h

PERFORMANCE
Switching Capacity
10 Gbps Packet Forwarding Rate
7.4 Mpps MAC Address Table
2K Packet Buffer Memory
1.5 Mb Jumbo Frame
16 KB

SOFTWARE FEATURES
Advanced Features
Green Technology
802.3X Flow Control
Back Pressure Transfer Method
Store and Forward

OTHERS
Certification
FCC, RoHS Package Contents
5-Port 10/100/1000Mbps Desktop Switch
Power Adapter
Installation Guide Environment
Operating Temperature: 0oC - 40oC (32oF - 104oF)
Storage Temperature: -40oC - 60oC (-40oF - 140oF)
Operating Humidity: 10% - 90% non-condensing
Storage Humidity: 5% - 90% non-condensing



Package Contents:
  • 5-Port 10/100/1000Mbps Desktop Switch
  • Power Adapter
  • Installation Guide

Features

Package Contents:
  • 5-Port 10/100/1000Mbps Desktop Switch
  • Power Adapter
  • Installation Guide



Environmentally Friendly:
Yes



Environmental Compliance:
Restriction of Hazardous Substances (RoHS)



Country of Origin:
China



Specs

Management & Protocols
ManageableNo
Power Description
Power SourcePower Adapter
Power Consumption3.70 W
Physical Characteristics
Product MaterialPlastic
Form Factor
  • Desktop
  • Wall Mountable
Height0.9"
Width3.5"
Depth2.8"
Warranty
Limited Warranty2 Year
Interfaces/Ports
Network (RJ-45)Yes
Port/Expansion Slot Details5 x Gigabit Ethernet Network
Total Number of Network Ports5
ModularNo
General Information
Brand NameTP-Link
Manufacturer Website Addresshttp://www.tp-link.com/us
Marketing InformationIncrease Your Network Speed and Save Energy
5-Port Gigabit Desktop Switch
Let LiteWave
Bring You Lighter Network Life
The TP-Link LiteWave Series Unmanaged Switches provide easy and affordable way to expand your wired network. They are easy to use and reliable. With these plug-and-play switches, you can expand your network connections to multiple devices instantly. With all ports support Auto-MDI/MDIX, there's no need to worry about the type of cable to use.
Go Green with Your Ethernet
The LiteWave Series also supports energy-efficient technology, helping you save power and money. Power consumption automatically adjusts according to link status and cable length, allowing you to expand your network while minimizing your carbon footprint. Save the planet and lower your energy bills - it's a win-win!
Durable Metal Casing

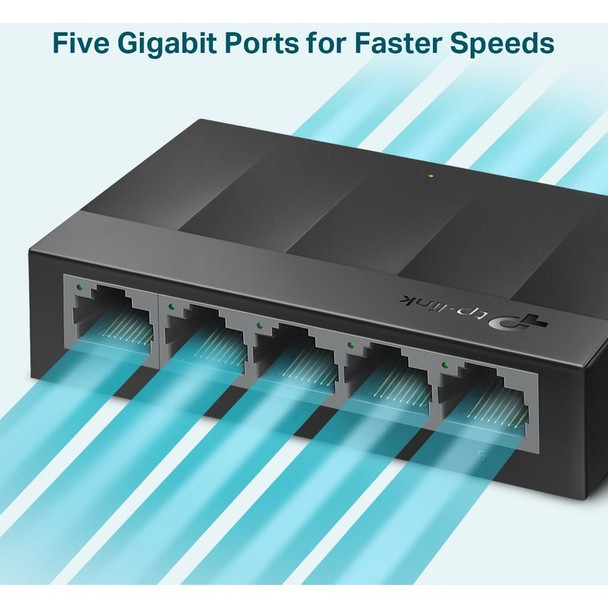

Increase the speed of your network with the LS1005G 5-port Gigabit desktop switch. Non-blocking, 5? 10/100/1000Mbps ports enable instant transferring of large, bandwidth intensive files without interference.
Use Where You Need, However You Need
The LS1005G is fully compatible with networked devices such as computers, printers, webcams, IPTVs. It has a wide range of application scenarios and is suitable for networking in school dormitories, surveillance, homes, and small businesses.
More from the Manufacturer
Product TypeEthernet Switch
Product Name5-Port 10/100/1000Mbps Desktop Switch
ManufacturerTP-LINK Technologies Co., Ltd
Manufacturer Part NumberLS1005G
Product ModelLS1005G
Product LineLiteWave
Media & Performance
Ethernet TechnologyGigabit Ethernet
Media Type SupportedTwisted Pair
Network Technology10/100/1000Base-T
Network & Communication
Layer Supported2
Networking Standards
  • IEEE 802.3i
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3x
