TP-Link TL-SG105PE - 5-Port Gigabit Easy Smart Switch with 4-Port PoE+ - Limited Lifetime Protection
- SKU:
- 18061651
- MPN:
- 246151
- Availability:
- Usually ships the same or next business day. In stock at our CA, IL, NJ warehouses.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 06/16/2024 07:29:05 AM PST
Bulk discount rates
Below are the available bulk discount rates for each individual item when you purchase a certain amount
Buy 2 | and pay only $59.00 each 59 |
Buy 3 or above | and pay only $55.50 each 55.5 |
- Stock Update:
- 06/16/2024 07:29:05 AM PST
Description
This item is brand-new, factory sealed.
Five 10/100/1000Mbps RJ45 portsEquipped with four 802.3af/at PoE+ ports with up to 30W for each port, data and power can be transferred on one single cable
Supports PoE power up to 65 W for all PoE ports
Provides network monitoring, traffic prioritization, VLAN features, and PoE Auto Recovery
Simple network set-up on top of plug-and-play connectivity
Web-based user interface and Easy Smart Configuration Utility simplify configuration

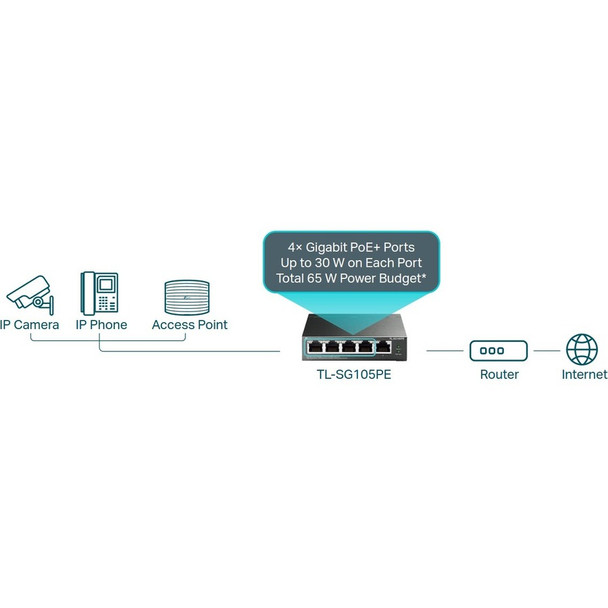

Multiple Application Scenarios
The TL-SG105PE is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices, such as PCs, printers, and IPTV.
Dedicated 4 PoE+ Ports (65 W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 65 W PoE power budget* for the 4 gigabit PoE+ ports makes it has a wide range of applications, such as surveillance, offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and etc.
Making Management Easy
TL-SG105PE offers network monitoring for users to observe traffic behavior. Through its web-based user interface and management utility, the TL-SG105PE offers a variety of useful features, including network monitoring, traffic prioritization, and enhanced QoS. HARDWARE FEATURES
Standards and Protocols
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p, IEEE 802.3at
Interface
Five 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ohm STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ohm STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Ohm STP (maximum 100m)
Fan Quantity
Fanless
Power Supply
External Power Adapter (Output: 53.5 VDC/1.3 A)
PoE Ports (RJ45)
Standard: 802.3 af/at compliant
PoE Ports: Port 1- Port 4
PoE Power Budget: 65 W
Max Power Consumption
4.5 W (with no PD connected)
75.2 W (with 65 W PD connected)
Max Heat Dissipation
15.4 BTU/h (with no PD connected)
256.3 BTU/h (with 65 W PD connected) PERFORMANCE
Switching Capacity
10 Gbps
Packet Forwarding Rate
7.44 Mpps
MAC Address Table
2 K
Packet Buffer Memory
1.5 Mb
Jumbo Frame
16 KB SOFTWARE FEATURES
Quality of Service
Support Port-Based/802.1p/DSCP priority
Support 4 priority queues
Rate Limit
Storm Control
L2 Features
IGMP Snooping V1/V2/V3
Static Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention
PoE Auto Recovery
Extend Mode
VLAN
Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN
Management
Web-based GUI
Easy Smart Configuration Utility
Transmission Method
Store-And-Forward OTHERS
Certification
FCC, CE, RoHS
Package Contents
TL-SG105PE
Power Adapter
Installation Guide
Rubber Feet
System Requirements
Microsoft Windows for Utility Software
Environment
Operating Temperature: 0oC-40oC (32oF-104oF)
Storage Temperature: -40oC-70oC (-40oF-158oF)
Operating Humidity: 10%-90%RH non-condensing
Storage Humidity: 5%-95%RH non-condensing Item Dimension (L"x W"x H")
8 x 6 x 5
Weight
2.00 LB
Warranty Information
2 years
Package Contents:
- 5-Port Gigabit Easy Smart Switch with 4-Port PoE+
- Power Adapter
- Installation Guide
- Rubber Feet
Features
Package Contents:
Yes
China
- 5-Port Gigabit Easy Smart Switch with 4-Port PoE+
- Power Adapter
- Installation Guide
- Rubber Feet
Environmentally Friendly:
Yes
Country of Origin:
China
Specs
Management & Protocols | |
Manageable | No |
Power Description | |
Power Source | Power Adapter |
PoE Budget | 65 W |
PoE (RJ-45) Port | Yes |
Power Consumption | 4.50 W |
Physical Characteristics | |
Product Material | Metal |
Form Factor | Desktop |
Height | 1" |
Width | 3.9" |
Depth | 3.9" |
Warranty | |
Limited Warranty | 3 Year |
Interfaces/Ports | |
Network (RJ-45) | Yes |
Port/Expansion Slot Details |
|
Total Number of Network Ports | 5 |
General Information | |
Brand Name | TP-Link |
Manufacturer Website Address | http://www.tp-link.com/us |
Marketing Information | Marketing Information from the Manufacturer |
Product Type | Ethernet Switch |
Product Name | 5-Port Gigabit Easy Smart Switch with 4-Port PoE+ |
Manufacturer | TP-LINK Technologies Co., Ltd |
Manufacturer Part Number | TL-SG105PE |
Product Model | TL-SG105PE |
Media & Performance | |
Ethernet Technology | Gigabit Ethernet |
Media Type Supported | Twisted Pair |
Network Technology | 10/100/1000Base-T |
Network & Communication | |
Layer Supported | 2 |
Networking Standards |
|
