TP Link

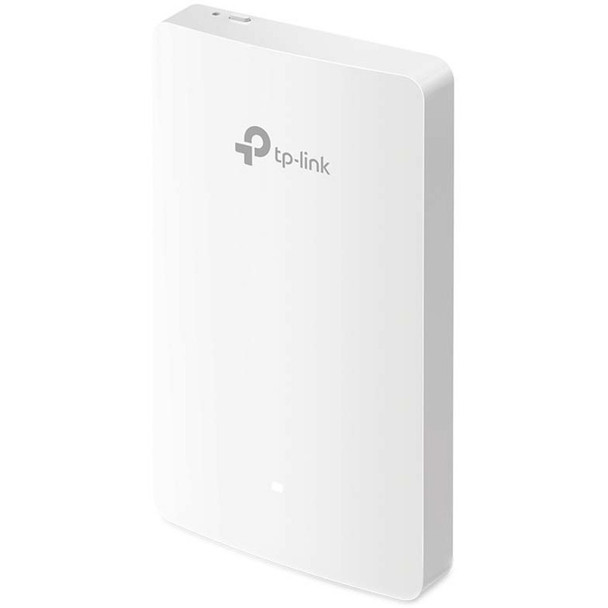

TP-LINK EAP235-Wall - Omada AC1200 in-Wall Wireless Gigabit Access Point - Limited Lifetime Warranty (EAP235-WALL)
(No reviews yet)
Write a Review
- SKU:
- 18058511
- MPN:
- 248204
- Availability:
- Usually ships the same or next business day. In stock at our IL warehouse.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 12/14/2025 11:50:29 PM PST
Bulk discount rates
Below are the available bulk discount rates for each individual item when you purchase a certain amount
| Buy 2 or above | and pay only $64.54 each 64.54 |
- Stock Update:
- 12/14/2025 11:50:29 PM PST
Description
This item is brand-new, factory sealed.
Omada SDN Ready: Ready for Omada SDN controller for centralized management and monitoring.Fast Dual-Band Wi-Fi: Simultaneous 300 Mbps on 2.4 GHz and 867 Mbps on 5 GHz totals 1,167 Mbps Wi-Fi speeds.
Four Gigabit Ports: 4 Gigabit Ethernet ports, one uplink and three access ports. PoE pass-through is available on one of the access port providing power for desk phones, cameras or other PoE devices.
Centralized Management: Cloud access and Omada app for mobility and easy management.
Elegant Appearance: Ultra slimmest and conspicuous design blends the access point into the walls of hotel rooms, hospitals, offices, and dormitories.
Easy Installation and PoE Support: Easy-mount construction, compatible with US, EU and 86mm junction boxes with PoE support.
Customer Oriented Guest Network: Along with multiple ways of login (SMS, Facebook Wi-Fi, Voucher, and customizable captive portal) allows guest access smoothly and friendly.
Advanced Wireless Tech: Optimize network performance with airtime fairness, band steering, and beamforming technologies.
Dedicated Complete, Private Wi-Fi Network in Each Room
An EAP in each room allows guests to enjoy their own private Wi-Fi network thats fast, delivering a strong signal, and providing corner to corner coverage.
Absolute Thinnest, Inconspicuous Design
The thinnest wall plate AP availableonly 15 mmfeaturing a sleek, minimalist appearance. Designed to blend in with the dcor of hotel rooms, hospitals, offices and school dormitories, to deliver powerful Wi-Fi without clashing with the room.
Effortless Deployment with PoE Powered
With 802.3af/802.3at Power over Ethernet supported theres no need to install additional wiring in the building. Simply plug in existing Ethernet cables and youre ready to go.
HARDWARE FEATURES
Interface
Uplink port: One 10/100/1000 Mbps Ethernet Port, accepts 802.3af or 802.3at PoE
Access ports: Three 10/100/1000 Mbps Ethernet Ports with one PoE power pass-thru port
Physical Security Lock
Yes
Button
Reset
Power Supply
802.3af/802.3at PoE
Power Consumption
9.8 watts
24.4 watts with 13w PoE output
Antenna
2.4 GHz: 2x 4 dBi
5 GHz: 2x 4 dBi
Mounting
Wall Plate Mounting
WIRELESS FEATURES
Wireless Standards
IEEE 802.11a/b/g/n/ac
Frequency
2.4 GHz and 5 GHz
Signal Rate
5 GHz: Up to 867 Mbps
2.4 GHz: Up to 300 Mbps
Wireless Functions
16 SSIDs (Up to 8 SSIDs on each band)
Enable/ disable SSID broadcast
Automatic channel assignment
Transmit power control (adjustable in 1 dBm step)
QoS (WMM)
Band steering
Beamforming
Load balance
Rate limit
Scheduled reboot
Wireless scheduled on/off
Wireless Statistics based on SSID, access point, or client
Wireless Security
Captive portal authentication
Access control list
Wireless MAC address filtering
Wireless isolation between clients
SSID to VLAN Mapping
LAN port-based VLAN
Rogue AP detection
802.1X EAP support
64/128/152-bit WEP, WPA/WPA2-PSK, WPA/WPA2-Enterprise
Transmission Power
is less than or equal to 21 dBm (2.4 GHz)
is less than or equal to 21 dBm (5 GHz)
MANAGEMENT
Omada App
Yes
Centralized Management
Omada Cloud-Based Controller
Omada Hardware Controller (OC300)
Omada Hardware Controller (OC200)
Omada Software Controller
Cloud Access
Yes
Email Alerts
Yes
LED ON/OFF Control
Yes
Management MAC Access Control
Yes
SNMP
v1, v2c
System Logging Local/Remote Syslog
Local/ remote syslog
SSH
Yes
Web-based Management
HTTP/ HTTPS
L3 Management
Yes
Multi-site Management
Yes
Management VLAN
Yes
OTHERS
Certification
FCC, RoHS
Package Contents
Omada AC1200 Wireless Gigabit Wall Plate Access Point EAP235-Wall
Installation guide
Mounting screw
Environment
Operating temperature: 0-40 oC (32-104 oF)
Storage temperature: -40-70 oC (-40-158 oF)
Operating humidity: 10-90% RH non-condensing
Storage humidity: 5-90% RH non-condensing
Item Dimension (L"x W"x H")
8 x 5 x 2
Weight
1.00 LB
Warranty Information
Limited Lifetime Warranty
Package Contents:
- Omada AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point
- Installation Guide
- Mounting Screw
Features
Package Contents:
Yes
Restriction of Hazardous Substances (RoHS)
China
- Omada AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point
- Installation Guide
- Mounting Screw
Additional Information:
Legal Disclaimer:
Actual network speed may be limited by the rate of the product's Ethernet WAN or LAN port, the rate supported by the network cable, Internet service provider factors and other environmental conditions.
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Country of Origin:
China
Specs
| Power Description | |
| Power Consumption | 9.80 W |
| Physical Characteristics | |
| Form Factor | Wall Plate |
| Height | 5.6" |
| Width | 3.4" |
| Depth | 0.8" |
| Warranty | |
| Limited Warranty | 2 Year |
| Interfaces/Ports | |
| Ethernet Technology | Gigabit Ethernet |
| Number of Network (RJ-45) Ports | 4 |
| PoE PD Port | Yes |
| General Information | |
| Brand Name | TP-Link |
| Manufacturer Website Address | http://www.tp-link.com/us |
| Marketing Information | Business-Class Wi-Fi Solution Omada provides a business-class wireless network solution that's flexible, manageable, secure, and easy-to-deploy. Featuring cloud access, Omada Cloud Controller or Omada Software Controller allow users to centrally manage the entire Omada networks in the remote site. And the intuitive Omada app makes network management incredibly convenient. Omada EAPs also feature captive portal and advanced RF management functions, which make them ideal for demanding, high-traffic environments such as campuses, hotels, malls and offices. Highlights Impressive Performance Enterprise-class chipsets, 802.11ac Wi-Fi standard, MU-MIMO, Seamless Roaming, and Mesh combine to ensure outstanding performance and reliability. Centralized Management Omada Cloud Controller or Omada Software Controller allows users to centrally manage the entire Omada networks. Cloud Service Remotely manage the whole network from anywhere, at any time. Easy to Use No special training required to use the Omada products with the user-friendly and intuitive design. Omada Controller Omada provides both software controller and hardware controller to centrally manage the entire Omada networks. Convenient, Effective Management Cloud Management - Anywhere, Anytime Omada Software Controller and Omada Cloud Controller allow network administrators to remotely monitor and manage the entire Omada networks. This dramatically enhances scalability and makes remote network management more convenient. Captive Portal - Customizable Guest Authentication Captive portal helps maintain only authorized guests to use the network, presenting devices with a convenient, user-friendly authentication method to grant Wi-Fi access. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and boost your business. Scheduling Automatically reboot the access point and turn on or off the Wi-Fi at the time you set. Client Management Real-time monitor the clients' status, limit the clients' bandwidth and block untrusted clients to ensure a better overall network performance. Real-Time Status Monitoring Customized Map The customized map feature makes managing your EAP network more convenient. You can upload floor plans and create a clear visual model that reflects your network and its coverage area. Access Point Provides a list of all EAPs, arranged by status, and offers real-time traffic data for each EAP, including the number of connected clients and the amount of data that each client consumes. Statistics The built-in data visualization tools allow you to analyze network traffic statistics for all connected APs. Graphic representations make recent client and network traffic figures easier to understand. Client Lists all clients, including users and guests, allowing you to view each client's basic information and statistics in real time. This includes data rate, active time, and download/upload traffic Omada APP Network management has never been easier with the intuitive Omada app offering powerful management tools from the palm of your hands. |
| Product Type | Wireless Access Point |
| Product Name | Omada AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point |
| Manufacturer | TP-LINK Technologies Co., Ltd |
| Manufacturer Part Number | EAP235-WALL |
| Product Model | EAP235-Wall |
| Product Series | EAP |
| Product Line | Omada |
| Technical Information | |
| Wireless LAN Standard | IEEE 802.11ac |
| Network Band | Dual Band |
| Wireless Transmission Speed | 1.14 Gbit/s |
| Total Number of Antennas | 2 |
| MIMO Technology | Yes |
| Data Encryption | Yes |
| Frequency Band |
|
| Beamforming Technology | Yes |
| Encryption Standard |
|
