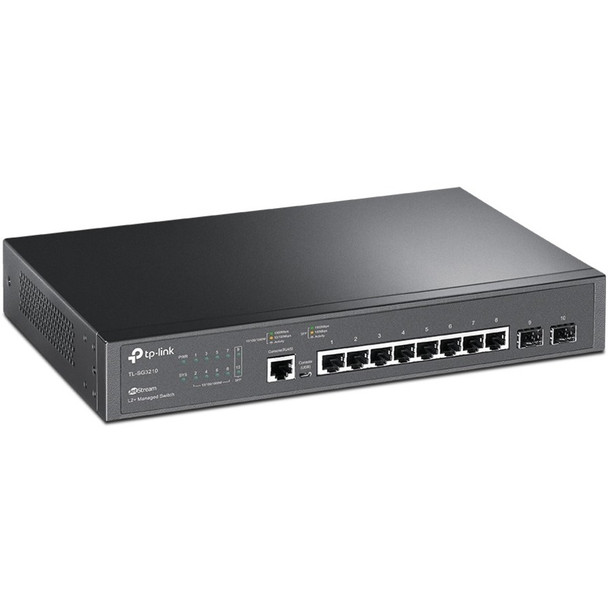

TP-Link TL-SG3210_V3 - JetStream 8-Port Gigabit L2+ Managed Switch with 2 SFP Slots - Limited Lifetime Protection TLSG3210_V3

This item is brand-new, factory sealed.

Full Gigabit Ports: 8 gigabit RJ45 ports and 2 gigabit SFP Slots provide high-speed connections.

Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)*, Centralized Cloud Management, and Intelligent Monitoring.

Centralized Management: Cloud access and Omada app for ultra convenience and easy management.

Static Routing: Helps route internal traffic for more efficient use of network resources.

Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.

Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.

Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities

Software Defined Networking (SDN) with Cloud Access

Omadas Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable networkall controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.

Advanced L3 Features

An abundance of L2+ and L3 features are supported to help build a highly scalable and robust network, providing a reliable and efficient solution for enterprises, campuses and ISPs.
HARDWARE FEATURES
Interface
8x 10/100/1000 Mbps RJ45 Ports
2x Gigabit SFP Slots
1x RJ45 Console Port
1x Micro-USB Console Port
Fan Quantity
Fanless
Power Supply
100-240 V AC50/60 Hz
Mounting
Rack Mountable / Desktop
Max Power Consumption
6.8 W
Max Heat Dissipation
23.3 BTU/h
PERFORMANCE
Switching Capacity
20 Gbps
Packet Forwarding Rate
14.89 Mpps
MAC Address Table
8K
Jumbo Frame
9 KB
SOFTWARE FEATURES
Quality of Service
8 priority queues
802.1p CoS/DSCP priority
Queue scheduling
- SP (Strict Priority)
- WRR (Weighted Round Robin)
- SP+WRR
Bandwidth Control
- Port/Flow based Rating Limiting
Smoother Performance
Action for Flows
- Mirror (to supported interface)
- Redirect (to supported interface)
- Rate Limit
- QoS Remark
L2 and L2+ Features
Link Aggregation
- Static link aggregation
- 802.3ad LACP
- Up to 8 aggregation groups and up to 8 ports per group
Spanning Tree Protocol
- 802.1d STP
- 802.1w RSTP
- 802.1s MSTP
- STP Security: TC Protect, BPDU Filter, BPDU Protect, Root
Protect, Loop Protect
Loopback Detection
- Port-based
- VLAN based
Flow Control
- 802.3x Flow Control
- HOL Blocking Prevention
Mirroring
- Port Mirroring
- CPU Mirroring
- One-to-One
- Many-to-One
- Tx/Rx/Both
L2 Multicast
Supports 511 (IPv4, IPv6) IGMP groups
IGMP Snooping
- IGMP v1/v2/v3 Snooping
- Fast Leave
- IGMP Snooping Querier
- IGMP Authentication
IGMP Authentication
MVR
MLD Snooping
- MLD v1/v2 Snooping
- Fast Leave
- MLD Snooping Querier
- Static Group Config
- Limited IP Multicast
Multicast Filtering: 256 profiles and 16 entries per profile
VLAN
VLAN Group
- Max 4K VLAN Groups
802.1q Tagged VLAN
MAC VLAN: 12 Entries
Protocol VLAN: Protocol Template 16, Protocol VLAN 16
GVRP
VLAN VPN (QinQ)
- Port-Based QinQ
- Selective QinQ
Voice VLAN
Access Control List
Time-based ACL
MAC ACL
- Source MAC
- Destination MAC
- VLAN ID
- User Priority
- Ether Type
IP ACL
- Source IP
- Destination IP
- Fragment
- IP Protocol
- TCP Flag
- TCP/UDP Port
- DSCP/IP TOS
- User Priority
Combined ACL
Packet Content ACL
IPv6 ACL
Policy
- Mirroring
- Redirect
- Rate Limit
- QoS Remark
ACL apply to Port/VLAN
Security
IP-MAC-Port Binding
- DHCP Snooping
- ARP Inspection
- IPv4 Source Guard
IPv6-MAC-Port Binding
- DHCPv6 Snooping
- ND Detection
- IPv6 Source Guard
DoS Defend
Static/Dynamic Port Security
- Up to 64 MAC addresses per port
Broadcast/Multicast/Unicast Storm Control
- kbps/ratio/pps control mode
IP/Port/MAC based access control
802.1X
- Port based authentication
- Mac based authentication
- VLAN Assignment
- MAB
- Guest VLAN
- Support Radius authentication and
accountability
AAA (including TACACS+)
Port Isolation
Secure web management through HTTPS with SSLv3/TLS 1.2
Secure Command Line Interface (CLI) management with
SSHv1/SSHv2
IPv6
IPv6 Dual IPv4/IPv6
Multicast Listener Discovery (MLD) Snooping
IPv6 ACL
IPv6 Interface
Static IPv6 Routing
IPv6 neighbor discovery (ND)
Path maximum transmission unit (MTU) discovery
Internet Control Message Protocol (ICMP) version 6
TCPv6/UDPv6
IPv6 applications
- DHCPv6 Client
- Ping6
- Tracert6
- Telnet (v6)
- IPv6 SNMP
- IPv6 SSH
- IPv6 SSL
- Http/Https
- IPv6 TFTP
L3 Features
16 IPv4/IPv6 Interfaces
Static Routing
- 48 static routes
Static ARP
316 ARP Entries
Proxy ARP
Gratuitous ARP
DHCP Server
DHCP Relay
DHCP L2 Relay
Management
Web-based GUI
Command Line Interface (CLI) through console port, telnet
SNMPv1/v2c/v3
- Trap/Inform
- RMON (1, 2, 3, 9 groups)
SDM Template
DHCP/BOOTP Client
802.1ab LLDP/LLDP-MED
DHCP AutoInstall
Dual Image, Dual Configuration
CPU Monitoring
Cable Diagnostics
EEE
Password Recovery
SNTP
System Log
Advanced Features
Support Omada Hardware Controller (OC200/OC300), Software Controller, Cloud-Based Controller
Automatic Device Discovery
Batch Configuration
Batch Firmware Upgrading
Intelligent Network Monitoring
Abnormal Event Warnings
Unified Configuration
Reboot Schedule
ZTP (Zero-Touch Provisioning)
OTHERS
Certification
CE, FCC, RoHS
Package Contents
TL-SG3210 Switch
Power Cord
Quick Installation Guide
Rackmount Kit
Rubber Feet
Environment
Operating Temperature: 0-45 ^oC (32-113 ^oF),
Storage Temperature: -40-70 ^oC (-40-158 ^oF)
Operating Humidity: 10-90% RH non-condensing
Storage Humidity: 5-90% RH non-condensing
Item Dimension (L"x W"x H")
12 x 8 x 2
Weight
3.80 LB
Warranty Information
Limited Lifetime Warranty


Package Contents:

• JetStream 8-Port Gigabit L2+ Managed Switch with 2 SFP Slots
• Power Cord
• Quick Installation Guide
• Rackmount Kit
• Rubber Feet
