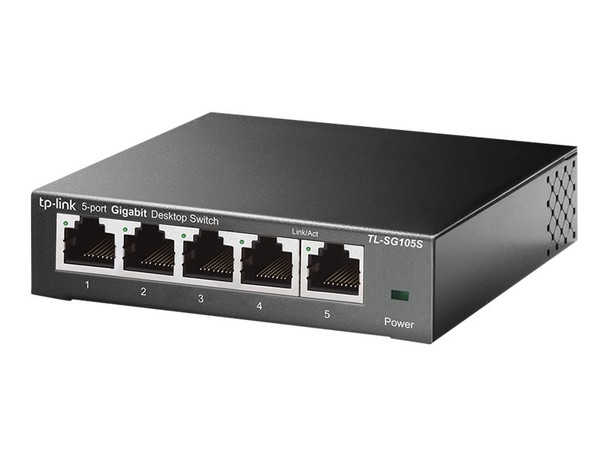

TP-Link TL-SG105S - 5 Port Gigabit Ethernet Switch - Limited Lifetime Protection
(No reviews yet)
Write a Review
- SKU:
- 18561635
- MPN:
- 259810
- Availability:
- Usually ships the same or next business day. In stock at our CA, NJ warehouses.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 12/27/2025 11:52:38 PM PST
Bulk discount rates
Below are the available bulk discount rates for each individual item when you purchase a certain amount
| Buy 2 | and pay only $24.41 each 24.41 |
| Buy 3 | and pay only $22.45 each 22.45 |
| Buy 4 | and pay only $21.01 each 21.01 |
| Buy 5 - 9 | and pay only $20.45 each 20.45 |
| Buy 10 or above | and pay only $19.99 each 19.99 |
- Stock Update:
- 12/27/2025 11:52:38 PM PST
Description
This item is brand-new, factory sealed.
TL-SG105S5-Port 10/100/1000Mbps Desktop Switch
5 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
Green Ethernet technology saves power consumption
IEEE 802.3x flow control provides reliable data transfer

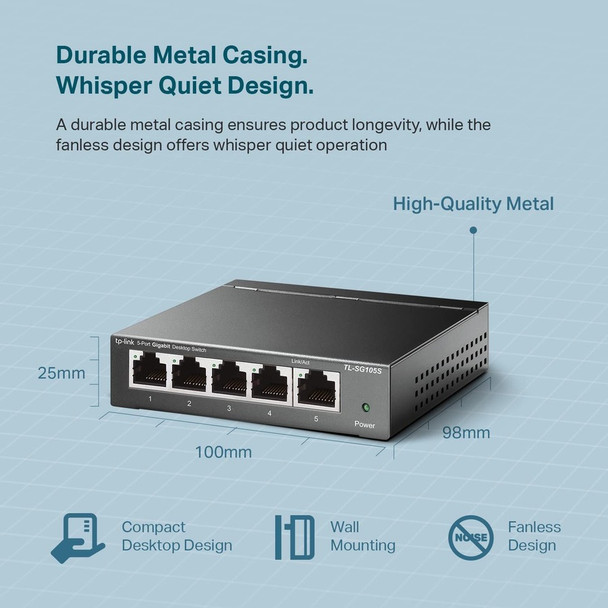

Steel housing, desktop or wall-mounting design
Support 802.1p/DSCP QoS and IGMP Snooping function

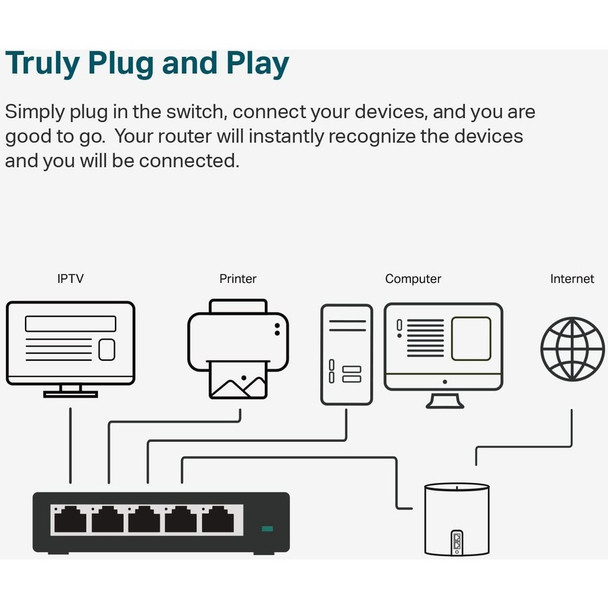

Plug and play, no configuration needed
What This Product Does
The TP-Link 5-Port 10/100/1000Mbps Desktop Switch provides you an easy way to make the transition to Gigabit Ethernet. Increase the speed of your network server and backbone connections, or make Gigabit to the desktop a reality. Plug and Play design, with no configuration required, makes the product easy to use. Moreover, TL-SG105S adopts lower power consumption design. With the innovative energy-efficient technology, the TL-SG105S can save power consumption, making it an eco-friendly solution for your home or office network.

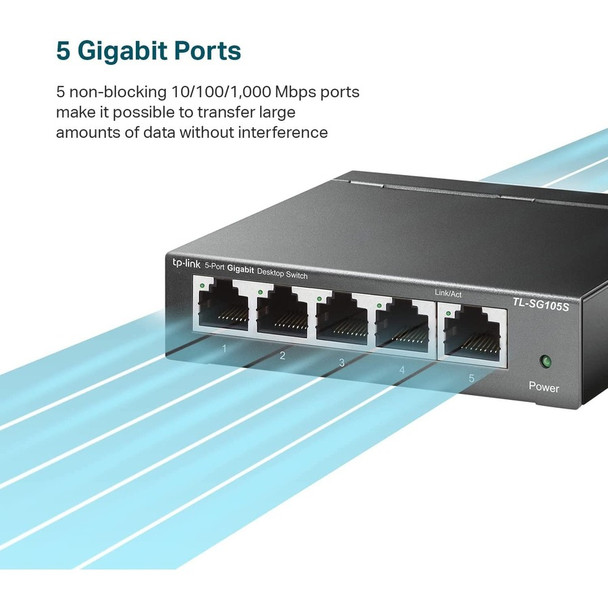

Gigabit Switch
Featured with 5 10/100/1000Mbps ports, TL-SG105S greatly expands your network capacity, enabling instant large files transferring. So, power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network instantly.
Go Green With Your Ethernet
You now have the choice to go green when upgrading to a gigabit network This new generation TL-SG105S 5-Port 10/100/1000Mbps Desktop Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.
Traffic Optimization
802.1p and DSCP QoS enable smooth latency-sensitive traffic such as voice and video, and IGMP Snooping optimizes the Multicast data stream.HARDWARE FEATURES
Standards and Protocols
IEEE 802.3i/802.3u/ 802.3ab/802.3x, IEEE 802.1p
Interface
5 10/100/1000Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports
Fan Quantity
Fanless
Power Consumption
Maximum: 2.3W (220V/50Hz)
External Power Supply
External Power Adapter (Output: 5VDC / 0.6A)
LED Indicator
System Power
Link/Act indicators per port built into each RJ-45 port
Max Heat Dissipation
7.83 BTU/hPERFORMANCE
Packet Forwarding Rate
7.4Mpps
MAC Address Table
2K
Packet Buffer Memory
1Mb
Jumbo Frame
16KBSOFTWARE FEATURES
Advanced Features
Green Technology
802.3X Flow Control
802.1P/DSCP QoS (for V2 and later version)
IGMP Snooping
Transfer Method
Store and ForwardOTHERS
Certification
CE, FCC, RoHS
Package Contents
5-Port 10/100/1000Mbps Desktop Switch
Power Adapter
Installation Guide
Rubber Feet
Environment
Operating Temperature: 0oC-40oC (32oF-104oF)
Storage Temperature: -40oC-70oC (-40oF-158oF)
Operating Humidity: 10% - 90% non-condensing
Storage Humidity: 5%-90% non-condensingItem Dimension (L"xW"xH")
6 x 5 x 4
Weight
1 lb
Warranty Information
Limited Lifetime Warranty
Features
Package Contents:
Yes
Restriction of Hazardous Substances (RoHS)
Vietnam
- 5-Port 10/100/1000Mbps Desktop Switch
- Power Adapter
- Installation Guide
- Rubber Feet
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Country of Origin:
Vietnam
Specs
| Management & Protocols | |
| Manageable | No |
| Power Description | |
| Redundant Power Supply Supported | No |
| Power Source | Power Adapter |
| Power Consumption | 2.40 W |
| Physical Characteristics | |
| Product Material | Metal |
| Form Factor |
|
| Height | 1" |
| Width | 3.9" |
| Depth | 3.9" |
| Warranty | |
| Limited Warranty | 3 Year |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Uplink Port | No |
| Stack Port | No |
| Port/Expansion Slot Details | 5 x Gigabit Ethernet Network |
| Total Number of Network Ports | 5 |
| Modular | No |
| General Information | |
| Brand Name | TP-Link |
| Manufacturer Website Address | http://www.tp-link.com/us |
| Marketing Information | What This Product Does The TP-Link 5-Port 10/100/1000Mbps Desktop Switch provides you an easy way to make the transition to Gigabit Ethernet. Increase the speed of your network server and backbone connections, or make Gigabit to the desktop a reality. Plug and Play design, with no configuration required, makes the product easy to use. Moreover, TL-SG105S adopts lower power consumption design. With the innovative energy-efficient technology, the TL-SG105S can save power consumption, making it an eco-friendly solution for your home or office network. Gigabit Switch Featured with 5 10/100/1000Mbps ports, TL-SG105S greatly expands your network capacity, enabling instant large files transferring. So, power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network instantly. Go Green With Your Ethernet You now have the choice to go green when upgrading to a gigabit network! This new generation TL-SG105S 5-Port 10/100/1000Mbps Desktop Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network. Traffic Optimization 802.1p and DSCP QoS enable smooth latency-sensitive traffic such as voice and video, and IGMP Snooping optimizes the Multicast data stream. Easy to use The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminate the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance. Moreover, fanless design ensures quiet operation. More from the Manufacturer |
| Product Type | Ethernet Switch |
| Product Name | 5-Port 10/100/1000Mbps Desktop Switch |
| Manufacturer | TP-LINK Technologies Co., Ltd |
| Manufacturer Part Number | TL-SG105S |
| Product Model | TL-SG105S |
| Media & Performance | |
| Ethernet Technology | Gigabit Ethernet |
| Media Type Supported | Twisted Pair |
| Network Technology | 10/100/1000Base-T |
| Network & Communication | |
| Layer Supported | 2 |
| Networking Standards |
|
