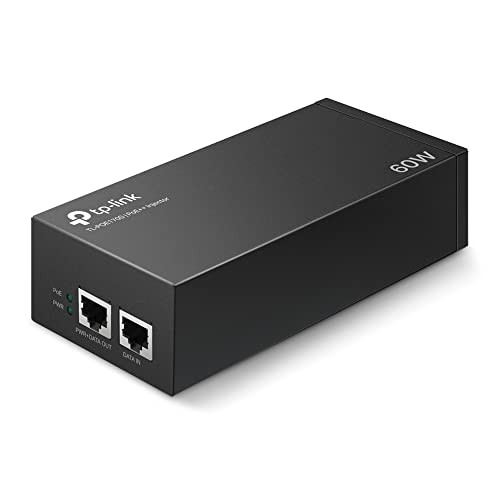

TP-Link TL-PoE170S - 802.3at/af/bt Gigabit PoE Injector

This item is brand-new, factory sealed.

2 Gigabit ports ensure faster transmission

Complies with IEEE802.3af/at/bt* standards, supplies up to 60 W

Reduces infrastructure costs by transmitting data and power simultaneously via an Ethernet cable

Automatically determines and supplies the exact power to meet the device's need

Wall-mounting and desktop design accommodates most installation scenarios

Plug & Play installation, requires no configuration

Integrated power supply

Durable metal casing


What This Product Does

The PoE++ Injector TL-POE170S fully complies with IEEE 802.3af/at/bt* standards with up to 60 W power supply. It can easily expand your network to where there are no power line or outlet, where you wish to fix devices such as PTZ IP Cameras, LED, etc. NETWORK
Standards and Protocols
IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at, IEEE802.3bt^Notr GENERAL
Certification
FCC, CE, RoHS Environment
Operating Temperature: 0^oC to 45^oC (32^oF to 113^oF)
Storage Temperature: -40^oC to 70^oC (-40^oF to 158^oF)
Operating Humidity: 10% to 90%RH non-condensing
Storage Humidity: 5% to 90%RH non-condensing Material
Metal Casing PACKAGE CONTENTS
Package Contents
PoE++ Injector TL-POE170S
Installation Guide
Power Cord
RJ45 Cable HARDWARE FEATURES
Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100 m)
EIA/TIA-568 100 Ohm STP (maximum 100 m)
100BASE-TX: UTP category 5, 5e cable (maximum 100 m)
EIA/TIA-568 100 Ohm STP (maximum 100 m)
1000BASE-T: UTP category 5, 5e, 6 cable(maximum 100 m) Ports

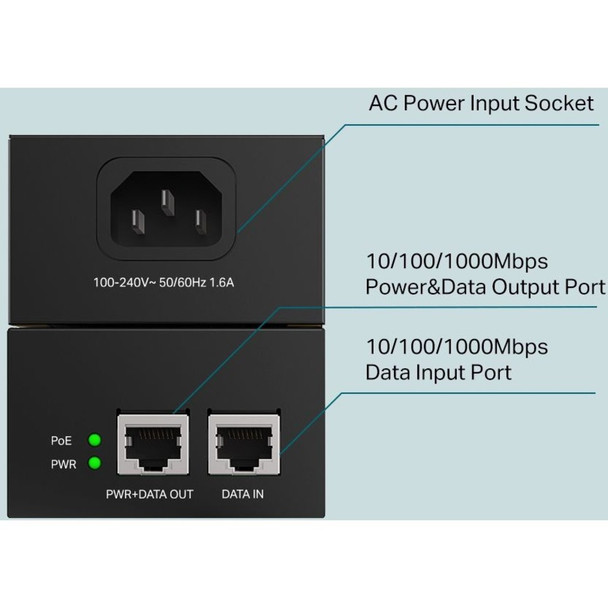

1 10/100/1000Mbps RJ45 data-in port
1 10/100/1000Mbps RJ45 power+data-out port
1 AC socket Power Consumption
Input: 100-240 V, 50/60 Hz, 1.6A
vOutput: Auto-determine the necessary power requirements (max. 60 W) Basic Function
Auto-Sensing Algorithm enables providing power with 802.3af/at/bt^Note PD
Auto-determine the necessary power requirements
Wall-mounting and desktop installation supported
Plug-and-PlayNote
TL-POE170S is incompatible with EAP235, EAP225, and EAP225-Outdoor. To power up these EAPs, TL-POE160S is recommended to use.Item Dimension (L inchxW inchxH inch)
10 x 8 x 4

Weight
3.00 lb

Warranty Information
2-year
