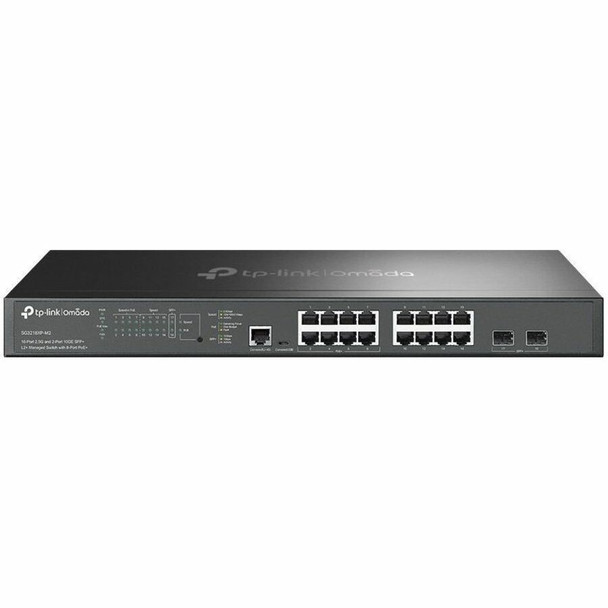

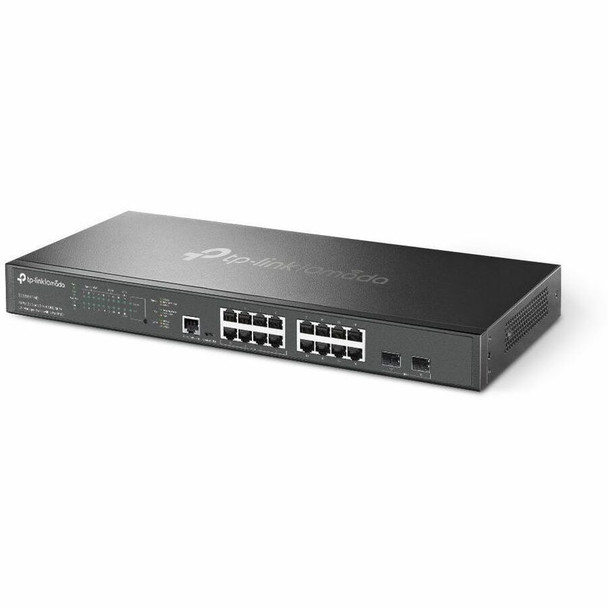

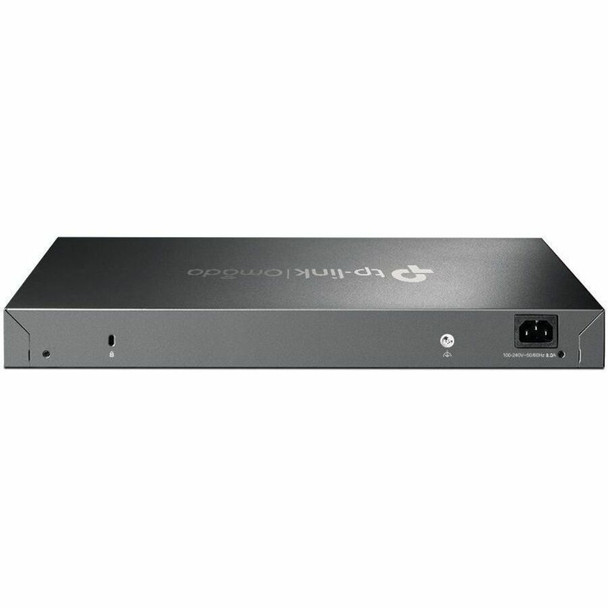

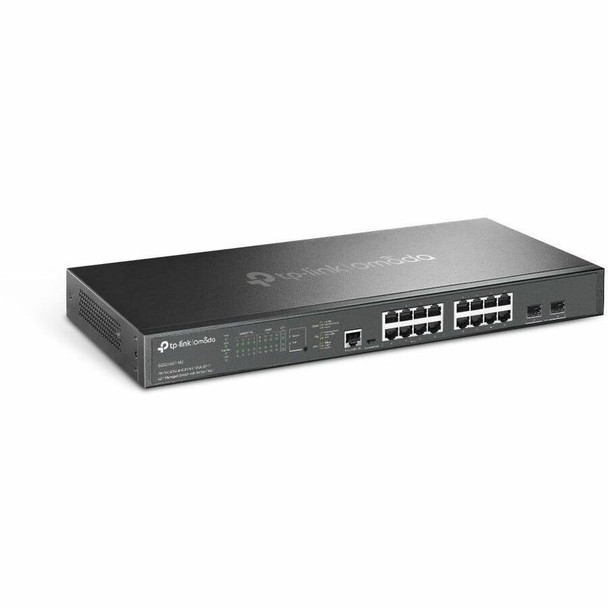

TP Link 279752 Tp-link Swt Sg3218xp-m2 Omada 16-port 2.5g & 2-port 10ge Sfp+ L2+ Managed Swt
- SKU:
- 20689362
- MPN:
- 279752
- Availability:
- Usually ships the same or next business day. In stock at our IL warehouse.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 04/26/2024 03:25:14 PM PST
- Stock Update:
- 04/26/2024 03:25:14 PM PST
Description
This item is brand-new, factory sealed.
2.5G Ports for WiFi 7/6E/6
16 2.5 Gbps Ports Unlock the Full Potential of WiFi 7/6E/6 APs
10G -Fast Uplink Connection
2 10 Gbps SFP+ Slots for High-Bandwidth Connectivity
250W PoE Budget
8 PoE+ Ports with Total 250 W Power Budget*
Centralized Cloud Management
SDN Solutions Integration for a Highly Efficient Network
Unlock the Full Potential of WiFi 7/6E/6 with Multi-Gigabit PoE+ Ports
Featuring 8x PoE+ 2.5G ports, the switch is capable of future network expansion and deployment, providing sufficient bandwidth for incoming WiFi 7/6E/6 APs. Designed to use a single Ethernet cable for both data and power transmission, it supports up to 250W total PoE power budget* and flexible installation to fit in various application scenarios.
Enterprise Switch with 10G Uplink
2 10 Gbps SFP+ slots provide non-blocking switching performance and ultra-low latency, so reliable and -fast connections to server and other switches are easily built.
Software Defined Networking (SDN) with Cloud Access
Omada's Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network-all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.
Advanced L3 Features
An abundance of L2+ and L3 features are supported to help build a highly scalable and robust network, providing a reliable and efficient solution for enterprises, campuses and ISPs.
Secure Networking
Security features include IP-MAC-Port-VID Binding, Port Security, Storm Control and DHCP Snooping to defend against a range of network threats. An integrated list of common DoS attacks is available, making it easier than ever to prevent them. In addition, the Access Control Lists (ACL, L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports or VLAN ID. Users' network access can be controlled via 802.1X authentication, which works with a RADIUS/Tacacs+ server to grant access only when valid user credentials are provided.
Enterprise Level Features
A complete lineup of L2+ features are supported, including 802.1Q VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol, and 802.3x Flow Control. Advanced IGMP Snooping ensures the switch intelligently forwards multicast streams to only the appropriate subscribers, cutting out unnecessary traffic, while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access. Static Routing is a simple way of segmenting the network and internally routs traffic through the switch for improved efficiency.
Advanced QoS
Voice and video traffic can be prioritized based on IP address, MAC address, TCP port number, UDP port number, and more. With QoS (Quality of Service), voice and video services remain smooth, even when bandwidth is in short supply.
ISP Features
QinQ, L2PT PPPoE ID Insertion and IGMP authentication features are provided, developed with service providers in mind. 802.3ah OAM and Device Link Detection Protocol (DLDP) offer easy monitoring and troubleshooting of Ethernet links.
IPv6 Support
IPv6 functions such as Dual IPv4/IPv6 Stack, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, IPv6 Interface, Path Maximum Transmission Unit (PMTU) Discovery and IPv6 Neighbor Discover guarantee your network is ready for the Next Ge
Features
Office
Network
Enterprise
Campus
Wireless Access Point
IP Camera
Specs
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| Power Source |
|
| PoE Budget | 240 W |
| Frequency |
|
| Input Voltage |
|
| PoE (RJ-45) Port | Yes |
| Power Consumption | 299.40 W |
| Physical Characteristics | |
| Form Factor |
|
| Height | 1.7" |
| Width | 17.3" |
| Depth | 7.1" |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Uplink Port | Yes |
| Stack Port | Yes |
| Port/Expansion Slot Details |
|
| Total Number of Network Ports | 16 |
| I/O Expansions | |
| Number of Total Expansion Slots | 2 |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 2 |
| General Information | |
| Brand Name | TP-Link |
| Manufacturer Website Address | http://www.tp-link.com/us |
| Marketing Information | 2.5G Ports for WiFi 7/6E/6 16× 2.5 Gbps Ports Unlock the Full Potential of WiFi 7/6E/6 APs 10G Lightning-Fast Uplink Connection 2× 10 Gbps SFP+ Slots for High-Bandwidth Connectivity 250W PoE Budget 8× PoE+ Ports with Total 250 W Power Budget* Centralized Cloud Management SDN Solutions Integration for a Highly Efficient Network Unlock the Full Potential of WiFi 7/6E/6 with Multi-Gigabit PoE+ Ports Featuring 8x PoE+ 2.5G ports, the switch is capable of future network expansion and deployment, providing sufficient bandwidth for incoming WiFi 7/6E/6 APs. Designed to use a single Ethernet cable for both data and power transmission, it supports up to 250W total PoE power budget* and flexible installation to fit in various application scenarios. Enterprise Switch with 10G Uplink 2× 10 Gbps SFP+ slots provide non-blocking switching performance and ultra-low latency, so reliable and lightning-fast connections to server and other switches are easily built. Software Defined Networking (SDN) with Cloud Access Omada's Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network-all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more. Advanced L3 Features An abundance of L2+ and L3 features are supported to help build a highly scalable and robust network, providing a reliable and efficient solution for enterprises, campuses and ISPs. Secure Networking Security features include IP-MAC-Port-VID Binding, Port Security, Storm Control and DHCP Snooping to defend against a range of network threats. An integrated list of common DoS attacks is available, making it easier than ever to prevent them. In addition, the Access Control Lists (ACL, L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports or VLAN ID. Users' network access can be controlled via 802.1X authentication, which works with a RADIUS/Tacacs+ server to grant access only when valid user credentials are provided. Enterprise Level Features A complete lineup of L2+ features are supported, including 802.1Q VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol, and 802.3x Flow Control. Advanced IGMP Snooping ensures the switch intelligently forwards multicast streams to only the appropriate subscribers, cutting out unnecessary traffic, while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access. Static Routing is a simple way of segmenting the network and internally routs traffic through the switch for improved efficiency. Advanced QoS Voice and video traffic can be prioritized based on IP address, MAC address, TCP port number, UDP port number, and more. With QoS (Quality of Service), voice and video services remain smooth, even when bandwidth is in short supply. ISP Features QinQ, L2PT PPPoE ID Insertion and IGMP authentication features are provided, developed with service providers in mind. 802.3ah OAM and Device Link Detection Protocol (DLDP) offer easy monitoring and troubleshooting of Ethernet links. IPv6 Support IPv6 functions such as Dual IPv4/IPv6 Stack, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, IPv6 Interface, Path Maximum Transmission Unit (PMTU) Discovery and IPv6 Neighbor Discover guarantee your network is ready for the Next Ge |
| Product Type | Ethernet Switch |
| Product Name | Omada 16-Port 2.5G and 2-Port 10GE SFP+ L2+ Managed Switch with 8 Port PoE+ |
| Manufacturer | TP-LINK Technologies Co., Ltd |
| Manufacturer Part Number | SG3218XPM2 |
| Product Line | Omada |
| Media & Performance | |
| Ethernet Technology |
|
| Media Type Supported |
|
| Network Technology |
|
| Network & Communication | |
| Layer Supported | 3 |
| Networking Standards |
|
