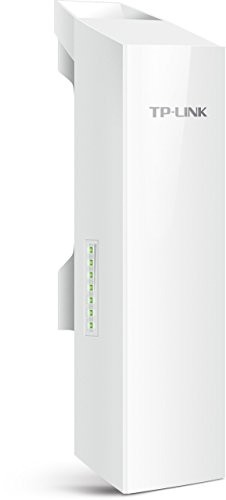

Tp-link Cpe510 Ieee 802.11n 300 Mbps Wireless Access Point - Ism Band - Unii Band - 9.3 Mile Maximum Outdoor Range - 2 X Network [rj-45] - Poe Ports (cpe510)

This item is brand-new, factory sealed.

TP-LINKs 5GHz 300Mbps 13dBi Outdoor CPE, the CPE510 is dedicated to cost effective solutions for outdoor wireless networking applications. With its centralized management application, it is ideal for point-to-point, point-to-multipoint and outdoor Wi-Fi coverage applications. Professional performance, coupled with user-friendly design, makes CPE510 an ideal choice for both business and home users.

Enterprise Hardware Design
With Qualcomm Atheros enterprise level chipsets, high gain antennas and high quality material, specially designed enclosure, and PoE power supply, CPE510 is specially designed for outdoor use and can operate flawlessly in almost any climate, with operating temperatures ranging from -30 (-22) to +70 (158).

Advanced Antenna System
Built-in High Gain Dual-Polarized Antenna and dedicated metal reflection ensures higher gain and lower noise interference.

High Power High Sensitivity
In advanced, high power Tx (up to 27dBm/500mw) and high sensitivity Rx (up to -95dBm) radio front-end design breaks down the barriers of traditional Wi-Fi transmission range, making CPE510 an ideal product for outdoor wireless networking applications. HARDWARE FEATURES
Processor:Qualcomm Atheros Enterprise AR9350B 560MHz CPU, MIPS 74Kc
Memory:64MB DDR2 RAM, 8MB Flash
Interface:
1 10/100Mbps Shielded Ethernet Port (LAN0,Passive PoE in)
1 10/100Mbps Shielded Ethernet Port (LAN1, Passive PoE Passthrough)
1 Grounding Terminal
1 Reset Button

Dimensions ( W x D x H ):224 x 79 x 60 mmAntenna Type:
Built-in 13dBi 2x2 Dual-polarized Directional Antenna
Beam Width: 45 (H-Plane) / 30 (E-Plane)
Note: For more details, please refer to datasheet

Protection:
15KV ESD Protection
6000V Protection

Power Consumption:
13 Watts Max
Note: When deployed using Passive PoE, the power drawn from the power source will be higher by some amount depending on the length of the connecting cable.Power Supply:
Passive Power over Ethernet via LAN0 (+4,5pins -7,8pins)
Voltage range: 16-27VDC

Enclosure:
Outdoor ASA stabilized plastic material
IPX5 waterproof Certification WIRELESS FEATURES
Wireless Standards:IEEE 802.11a/n (with Pharos MAXtream disabled)
Proprietary Protocol:TDMA Mode (with Pharos MAXtream enabled)

Wireless Speeds:
Up to 300Mbps (40MHz,Dynamic)
Up to 144.4Mbps (20MHz,Dynamic)
Up to 72.2Mbps (10MHz,Dynamic)
Up to 36.1Mbps (5MHz,Dynamic)Frequency:
5.15-5.85GHz
Note: Available operating frequency may vary depending on the limitations of the countries or regions in which the device is used.

Reception Sensitivity:
802.11a: 54M: -75dBm, 48M: -76dBm, 36M: -83dBm, 6-24M: -95dBm

802.11n:
MCS15: -73dBm, MCS14: -74dBm, MCS13: -76dBm,
MCS12: -80dBm, MCS11: -83dBm, MCS10: -88dBm,
MCS9: -90dBm, MCS8: -93dBm, MCS7: -73dBm,
MCS6: -74dBm, MCS5: -76dBm, MCS4: -80dBm,
MCS3: -83dBm, MCS2: -88dBm, MCS1: -90dBm, MCS0: -93dBm

Transmission Power:
27dBm/500mw (Adjustable power by 1dBm)
Note: Maximum transmission power may vary across different channels depending on the limitations of the countries or regions in which the device is used. SOFTWARE FEATURES
Wireless Configurations:
Pharos MAXtream TDMA Technology
802.11a/n Modes
Selectable Channel Width: 5/10/20/40MHz
Automatic Channel Selection
Transmission Power Control
Dynamic Frequency Selection (DFS)
WDS Enable/Disable
Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption
SSID Broadcast Enable/Disable
Multi-SSID with VLAN Tagging (AP mode only)
Distance/ACK Timeout Setting
Wireless MAC Address Filter

Wireless Advanced:
> Beacon Interval/RTS Threshold/Fragmentation
>Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi MultimediaManagement:
Discovery and Remote Management via Pharos Control application
HTTP/HTTPS Web-based management
System Log
SNMP Agent(v2c)
Ping Watch Dog
Dynamic DDNS
SSH ServerSystem Tools:
Wireless Signal Quality Indicators:
Signal Strength/Noise/Transmit CCQ/CPU/Memory
Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCPSpectrum Analyzer
Speed Test
Ping
Traceroute

System-level Optimizations:
Optimized IGMP Snooping/Proxy for multicast applications
Hardware watch dog OTHERS
Certification:CE, FCC, RoHS, IPX5

Package Contents:
Outdoor Wireless CPE
24V 1A Passive PoE Adapter
Pole Mounting Straps
AC Power Cord
Installation GuideSystem Requirements:
Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.
Note: We recommend you to use one of following Web browsers for an improved user experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended.Environment:
Operating Temperature: -30C-70C (-22-158)
Storage Temperature: -40-70 (-40-158)
Operating Humidity: 10%-90% non-condensing
Storage Humidity: 5%-95% non-condensing POE ADAPTER FEATURES
Button:Remote Reset Button
Certifications:CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark
Dimensions(W x D x H):1105733.5mm
Efficiency:>80%
Input:100-240VAC, 50/60Hz
Input Current:0.8A Max at 100VAC
Input Voltage:100VA-240VAC at 50Hz-60HzInterfaces:
1 AC Jack with Earth Ground
1 10/100Mbps Shielded Ethernet Port (Power + Data)
1 10/100Mbps Shielded Ethernet Port (Data)

Output:
24VDC, 1.0A Max
+4, 5pins -7, 8pins. (Support up to 60m Power over Ethernet)

Output Voltage:24VDC(+4,5pins -7,8pins)
Power Status LEDs:
0-0.8A: Green
0.8A-1.0A: Red Item Dimension (L"xW"xH"):
11 x 6 x 5

Weight:
1.99 lb

Warranty Information:
2 years
