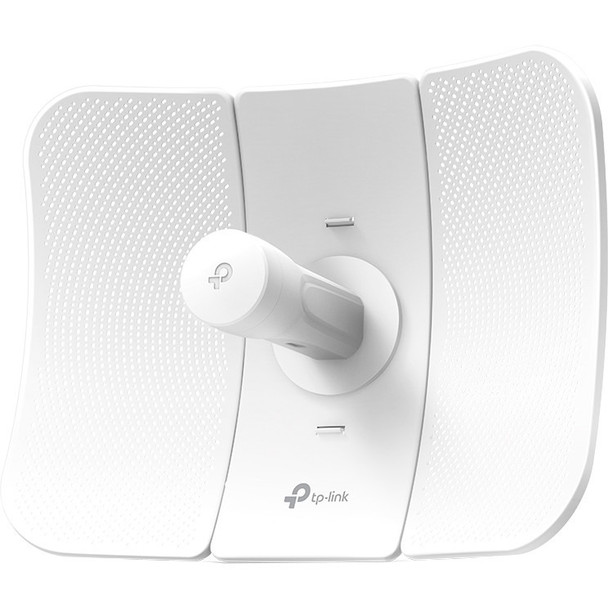

TP-Link CPE710 - 5GHz AC867 Long Range Outdoor CPE for PtP and PtMP Transmission

This item is brand-new, factory sealed.

802.11ac for up to 867Mbps on 5GHz wireless data rate

23dBi high-gain directional 22 MIMO, ideal for long-distance application

Excellent beam directivity, improved latency and noise cancellation

Innovative snap-lock parts make for fast assembly and a sturdy structural design keeps CPE710 stable even in strong winds

Durable IP65 weatherproof enclosure along with 15kV ESD and 6kV protection ensures all-weather suitability

Pharos Control gives administrators a free, centralized management system

Passive PoE supports to allow flexible deployment and convenient installation


Blazing Speed without Wait

256 QAM and an 80 MHz bandwidth boosts overall speeds up to 867 Mbps, 3 faster than 802.11n Wi-Fi.


Professional-Standard 23 dBi Directional Antenna for Long-range Wireless Transmission

With 23 dBi high-gain directional Cassegrain antenna and dedicated metal reflector, the CPE710 provides excellent beam directivity, improved latency, and noise immunity. Professional performance, coupled with user-friendly design, makes the 5 GHz 867 Mbps 23 dBi Outdoor CPE710 an ideal choice and cost-effective solution for outdoor long-distance wireless networking applications. HARDWARE FEATURES
Processor
Qualcomm 750MHz CPU, MIPS 74Kc
Memory
128 MB DDR2 RAM, 16 MB Flash
Interface
1 10/100/1000 Mbps Shielded Ethernet Port (LAN/POE)
1 Reset Button
Power Supply
Passive Power over Ethernet via LAN (+4,5pins, -7,8pins)
Voltage range: 16-27V DC
Antenna Gain
23 dBi
Antenna Beamwidth
9^o (Azimuth)/7^o (Elevation)
Protection
15 KV ESD Protection
6 KV Protection
Enclosure
Material: Outdoor PC stabilized plastic
Weatherproof: IP65 water and dust proof design

WIRELESS FEATURES
Wireless Standards
IEEE 802.11a/n/ac
Wireless Speeds
Up to 867 Mbps (80 MHz, Dynamic)
Up to 400 Mbps (40 MHz, Dynamic)
Up to 173.4 Mbps (20 MHz, Dynamic)
Frequency
5.15-5.85 GHz
Transmit Power
Max. 27 dBm (Adjustable power by 1dBm)

SOFTWARE FEATURES
Network Configuration
WAN: Static/ Dynamic/ PPPoE
LAN: Static/ Dynamic/ DHCP
Forwarding: ALG/ UPnP/ Virtual Server/ Port Trigger
Security: SPI Firewall/ Ping Forbidden/ DoS Protection
Access Control
Static Routing
Bandwidth Control
IP and MAC Binding Wireless Configurations
Selectable Channel Width: 20/40/80MHz
Auto Channel Selection
Transmit Power Control
Dynamic Frequency Selection(DFS)
WDS Enable/ Disable
Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption,
SSID Broadcast Enable/ Disable
Multi-SSID with VLAN Tagging(AP Mode only)
Distance/ ACK Timeout Setting
Wireless MAC Address Filter
Wireless Advanced:
Beacon Interval/ RTS Threshold/ Fragmentation Threshold/ DTIM
Interval/ AP Isolation/ Short GI/ Wi-Fi Multimedia
Long Range PtP Management
Discovery and Remote Management via Pharos Control application
HTTP/ HTTPS Web-based management
System log
SNMP Agent(v2c)
Ping Watch Dog
Dynamic DDNS
SSH Server
System Tools
Indicators:Signal Strength/ Noise/ Transmit CCQ/ CPU/ Memory
Monitors: Throughput/ Stations/ Interfaces/ ARP/ Routes/ WAN/ DHCP
Spectrum Analyzer
Speed Test
Ping
Traceroute
Antenna Alignment
System-level Optimizations
Optimized IGMP Snooping / Proxy for multicast applications

POE ADAPTER FEATURES
Interfaces
1 AC Jack with Earth Ground
1x 10/100/1000 Mbps Shielded Ethernet Port (Power + Data)
1x 10/100/1000 Mbps Shielded Ethernet Port (Data)
Button
Remote Reset Button
Power Status LEDs
Green
Input
100-240VAC, 50/60Hz
Output
24VDC, 0.6A Max
+4, 5pins, -7, 8pins. (Support up to 60m Power over Ethernet)
Efficiency
>84.29%
Certifications
CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark

OTHERS
Certification
CE, FCC, RoHS, IP65, IC
Package Contents
Outdoor Wireless CPE
24V 0.5A Passive PoE Adapter
Pole Mounting Kits
AC Power Cord
Installation Guide System Requirements
Microsoft Windows 98SE, NT, 2000, XP, Vista^TM or Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.
Note: We recommend you to use one of following Web browsers for an improved user experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended.
Environment
Operating Temperature: -40^oC-70^oC (-40^oF-158^oF)
Storage Temperature: -40^oC-70^oC (-40^oF-158^oF)
Operating Humidity: 10%-90% non-condensing
Storage Humidity: 5%-95% non-condensing

Item Dimension (L inchxW inchxH inch)
13 x 7 x 6

Weight
4.00lb

Warranty Information
2 years

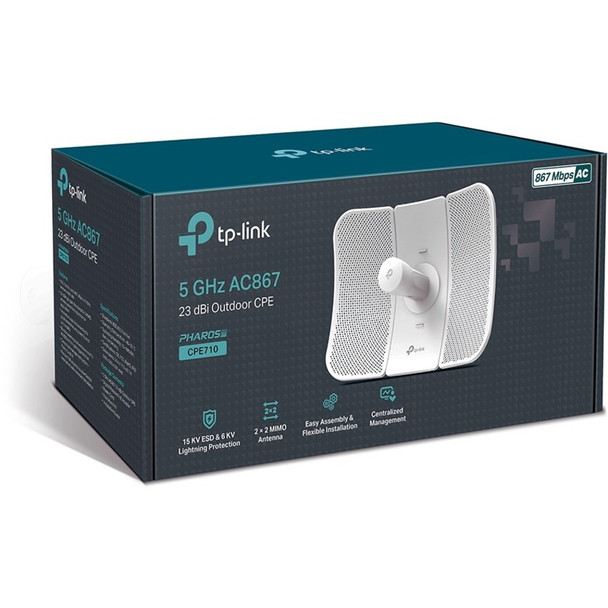

Package Contents:

• 5GHz AC 867Mbps 23dBi Outdoor CPE
• 24V 0.5A Passive PoE Adapter
• Pole Mounting Kits
• AC Power Cord
• Installation Guide
