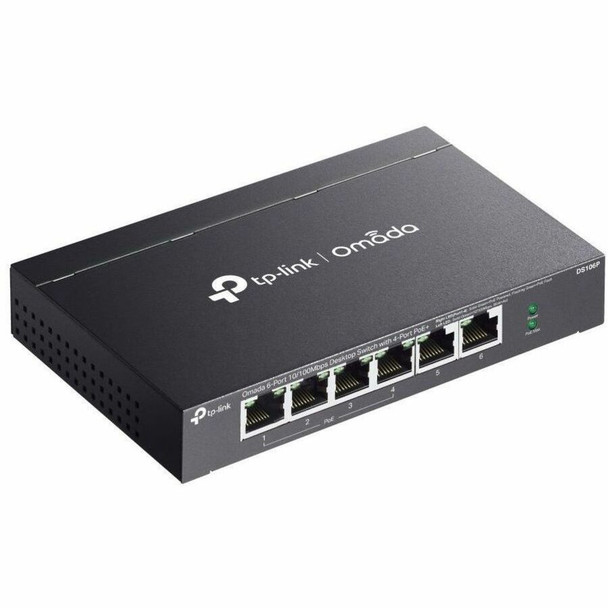

TP-Link Omada 6-Port 10/100Mbps Unmanaged Desktop Switch with 4-Port PoE+ (ds106p)
- SKU:
- 20905569
- MPN:
- ds106p
- Availability:
- Usually ships the same or next business day. In stock at our IL warehouse.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 08/11/2026 02:40:43 AM PST
Bulk discount rates
Below are the available bulk discount rates for each individual item when you purchase a certain amount
| Buy 2 | and pay only $49.36 each 49.36 |
| Buy 3 | and pay only $46.06 each 46.06 |
| Buy 4 - 5 | and pay only $44.98 each 44.98 |
| Buy 6 or above | and pay only $44.00 each 44 |
- Stock Update:
- 08/11/2026 02:40:43 AM PST
Description
This item is brand-new, factory sealed.
- 67 W PoE Budget
- Long-Range PoE+ (250m)
- One-Click Priority Mode
- PoE Auto Recovery
- Desktop or Wall-Mounting
- Plug and Play
- Fanless Design for Silent Operation
- Durable Metal Casing
Power over Ethernet, Flexible Network Deployment
Compliant with the IEEE 802.3af/at PoE standards, the switch supports a total PoE power budget of 67 W with 30 W max per PoE+ port. When total power consumption exceeds 67 W, the intelligent power management will cut the lower priority ports power to protect devices from damage.

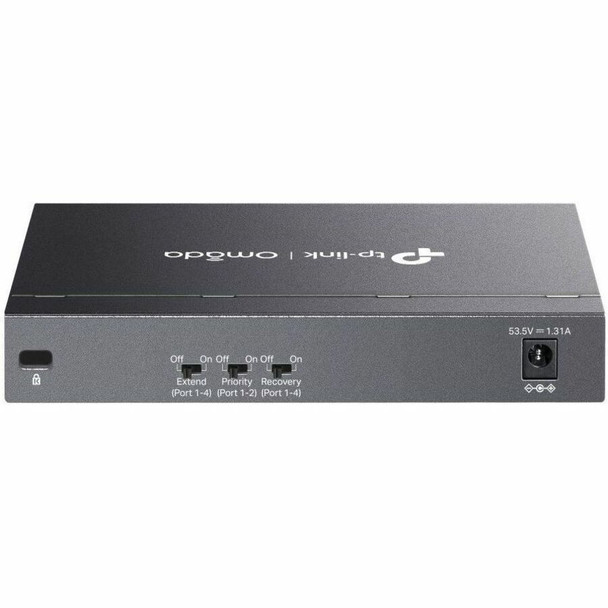

Instantaneous Multi-mode Toggles | Extend Mode | Up to 250m Transmissions
With extend mode, the PoE transmission distance reaches up to 250 m -perfect for IP Camera deployment in large areas.
Priority Mode | One-click Port Priority
Priority mode guarantees the quality of sensitive applications like video and voice in critical business areas by prioritizing the data of ports.
Recovery Mode | PoE Auto Recovery
Recovery mode helps automatically detect and reboot PD devices, such as cameras and APs, when they fall offline or go unresponsive-all without needing manual monitoring and restarts.
Package Contents:
- Omada 6-Port 10/100Mbps Unmanaged Desktop Switch with 4-Port PoE+
- Power Adapter
- Installation Guide
Features
- Omada 6-Port 10/100Mbps Unmanaged Desktop Switch with 4-Port PoE+
- Power Adapter
- Installation Guide
Application/Usage:
Network
Wireless Access Point
IP Phone
IP Camera
PC
Network Video Recorder
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Specs
| Management & Protocols | |
| Manageable | No |
| Power Description | |
| Power Source | Power Adapter |
| PoE Budget | 67 W |
| Frequency | 50 Hz |
| PoE (RJ-45) Port | Yes |
| Power Consumption | 2.52 W |
| Physical Characteristics | |
| Product Material | Metal |
| Form Factor |
|
| Height | 1" |
| Width | 6.2" |
| Depth | 4" |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Port/Expansion Slot Details |
|
| Total Number of Network Ports | 10 |
| General Information | |
| Brand Name | TP-Link |
| Manufacturer Website Address | http://www.tp-link.com/us |
| Marketing Information | 67 W PoE Budget Long-Range PoE+ (250m) One-Click Priority Mode PoE Auto Recovery Desktop or Wall-Mounting Plug and Play Fanless Design for Silent Operation Durable Metal Casing Power over Ethernet, Flexible Network Deployment Compliant with the IEEE 802.3af/at PoE standards, the switch supports a total PoE power budget of 67 W with 30 W max per PoE+ port. When total power consumption exceeds 67 W, the intelligent power management will cut the lower priority ports power to protect devices from damage. Instantaneous Multi-mode Toggles | Extend Mode | Up to 250m Transmissions With extend mode, the PoE transmission distance reaches up to 250 m -perfect for IP Camera deployment in large areas. Priority Mode | One-click Port Priority Priority mode guarantees the quality of sensitive applications like video and voice in critical business areas by prioritizing the data of ports. Recovery Mode | PoE Auto Recovery Recovery mode helps automatically detect and reboot PD devices, such as cameras and APs, when they fall offline or go unresponsive-all without needing manual monitoring and restarts. |
| Product Type | Ethernet Switch |
| Product Name | Omada 6-Port 10/100Mbps Unmanaged Desktop Switch with 4-Port PoE+ |
| Manufacturer | TP-LINK Technologies Co., Ltd |
| Manufacturer Part Number | DS106P |
| Product Model | DS106P |
| Product Line | Omada |
| Media & Performance | |
| Ethernet Technology |
|
| Media Type Supported | Twisted Pair |
| Network Technology |
|
| Network & Communication | |
| Layer Supported | 2 |
| Networking Standards |
|
| Technical Information | |
| Features |
|
