TP-Link EAP620 HD - Omada WiFi 6 AX1800 Wireless Gigabit Access Point for High-Density Deployment - Limited Lifetime Warranty

This item is brand-new, factory sealed.

AX1800 Wireless Dual Band Ceiling Mount Access Point

Ultra-Fast Wi-Fi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz totals 1775 Mbps Wi-Fi speeds.

High-Density Connectivity: 4 increased capacity to connect more devices simultaneously.

Integrated into Omada SDN: Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring.

Centralized Management: Cloud access and Omada app for ultra convenience and easy management.

Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.?

PoE+ Support: Supports Power over Ethernet (802.3at) for convenient deployment and installation.

Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.


High-Density Connectivity with 4 Increased Capacity

OFDMA* and Uplink & Downlink MU-MIMO** increase network capacity by up to 4 versus Wi-Fi 5 (802.11ac) in high-density environments to connect more devices simultaneously. Leverage multi-user capabilities and upgrade your business like never before.



Advanced Wi-Fi Speed with 4 Spatial Streams

The Omada Wi-Fi 6 Access Point features the latest 802.11ax technologies like 1024 QAM and Long OFDM Symbol, which allows the EAP to boost overall speeds up to 1775 Mbps (1201 Mbps on a 5 GHz band and 574 Mbps on a 2.4 GHz band). With 4 spatial streams, multi-user throughput is incredibly increased to drive more applications. HARDWARE FEATURES

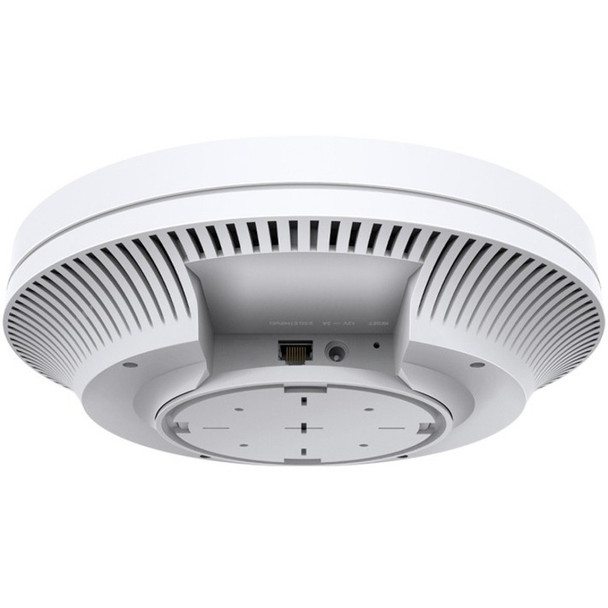

Interface
1x Gigabit Ethernet (RJ-45) Port
(supports IEEE802.3at PoE) Button
ResetPower Supply
802.3at PoE or 12 V DC (Power adapter included) Power Consumption
13.5 W Antenna Type
Omni directional internal antennas
2.4 GHz: 2x 4 dBi
5 GHz: 2x 5 dBi Mounting
Ceiling /Wall Mounting
(Mounting kit included) WIRELESS FEATURES
Wireless Standards
IEEE 802.11ax/ac/n/g/b/a Frequency
2.4 GHz and 5 GHz Signal Rate
5 GHz: Up to 1201 Mbps
2.4 GHz: Up to 574 Mbps Wireless Functions
1024-QAM
4x Longer OFDM Symbol
OFDMA
Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS(WMM)
MU-MIMO
Seamless Roaming
Band Steering
Load Balance
Airtime Fairness
Beamforming
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client Wireless Security
Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise Transmission Power
25 dBm max. (2.4 GHz)
25 dBm max. (5 GHz) MANAGEMENT
Omada App
Yes Centralized Management
Omada Cloud-Based Controller
Omada Hardware Controller (OC300)
Omada Hardware Controller (OC200)
Omada Software Controller Cloud Access
Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller) Email Alerts
Yes LED ON/OFF Control
Yes Management MAC Access Control
Yes SNMP
v1, v2c, v3 System Logging Local/Remote Syslog
Local/Remote Syslog

Package Contents:

• AX1800 Wireless Dual Band Ceiling Mount Access Point
• Power Adapter
• Ceiling/Wall Mounting Kits
• Installation Guide
