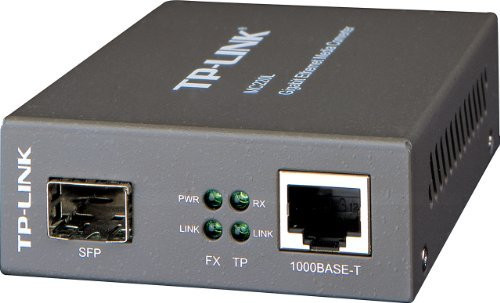

Tp-Link MC220L Gigabit Ethernet Media Converter - 1 x RJ-45 Network - 1000Base-T - 1 x SFP (mini-GBIC) - External

This item is brand-new, factory sealed.

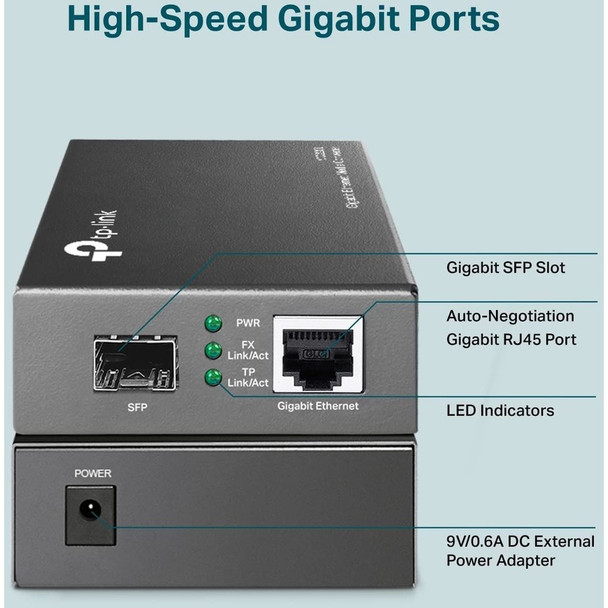

The MC220L is a media converter designed to convert 1000BASE-SX/LX/LH fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-SX/LX/LH standards, the MC220L is designed for use with multi-mode/single-mode fiber cable utilizing the SC/LC-Type connector. It works at 850nm on both transmitting and receiving data when adopting multi-mode fiber and 1310nm on both transmitting and receiving data when adopting single-mode.Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINKs 19system chassis, Auto MDI/MDI-X for TX port, and front panel status LEDs. The MC220L will transmit at extended fiber optic distances utilizing multi-mode fiber up to 0.55 kilometers and 10 kilometers when utilizing single-mode fiber. Standards and ProtocolsIEEE 802.3ab, IEEE 802.3z, IEEE 802.3x Basic FunctionFull Duplex Flow Control (IEEE 802.3x)Extends fiber distance up to 0.5km using 50/125um fiber, 0.22km using 62.5/125um fiber)Link Fault Passthrough and Far End Fault minimize the loss caused by link failure timely Ports1 Gigabit SFP Slot1 1000M RJ45 port (Auto MDI/MDIX) Network Media1000BASE-T : UTP category 5, 5e cable (maximum 100m) , EIA/TIA-568 100 STP (maximum 100m)1000BASE-FX : Multi-mode Fiber LED IndicatorsPWR, LINK, RX Safety EmissionFCC, CE DimensionsLxWxH:8x3x7 inch EnvironmentOperating Temperature: 0C - 40C (32F - 104F)

Features

Package Contents:

• MC220L Gigabit Ethernet Media Converter
• Power Adapter
• Installation Guide



Additional Information:

FX Port Supports hot-swappable (LC/SC)



Environmentally Friendly:
Yes



Specs

Power Description
Power Source	Power Adapter
Power Consumption	1.70 W
Physical Characteristics
Form Factor	External
Height	1.1"
Width	3.7"
Depth	2.9"
Interfaces/Ports
Network (RJ-45)	Yes
Total Number of Ports	1
Number of Network (RJ-45) Ports	1
I/O Expansions
Total Number of Expansion Slots	1
Number of SFP Slots	1
Expansion Slot Type	SFP
General Information
Brand Name	TP-Link
Manufacturer Website Address	http://www.tp-link.com/us
Marketing Information	The MC220L is a media converter designed to convert 1000BASE-SX/LX/LH fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-SX/LX/LH standards, the MC220L is designed for use with multi-mode/single-mode fiber cable utilizing the SC/LC-Type connector. It works at 850nm on both transmitting and receiving data when adopting multi-mode fiber and 1310nm on both transmitting and receiving data when adopting single-mode. More from the Manufacturer
Product Type	Transceiver/Media Converter
Product Name	MC220L Gigabit Ethernet Media Converter
Manufacturer	TP-LINK Technologies Co., Ltd
Manufacturer Part Number	MC220L
Product Model	MC220L
Network & Communication
Ethernet Technology	Gigabit Ethernet
Network Technology	1000Base-T
