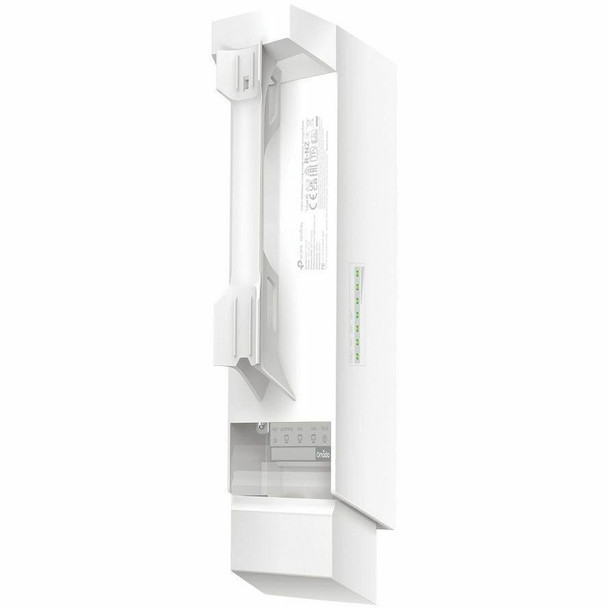

TP-Link Omada Single Band IEEE 802.11a/b/g/n 300 Mbit/s Wireless Bridge - Indoor/Outdoor (eap115-bridgekit)

This item is brand-new, factory sealed.

EAP115-Bridge KIT

Omada Wireless Bridge 5 GHz 300 Mbps Long-Range Indoor/Outdoor Access Point

802.11n for up to 300 Mbps on the 5 GHz wireless data rate.v
Ideal for long-range wireless transmission up to 5 km.

Auto-pairing and agile LEDs for efficient deployment.

3x 10/100 Mbps Ethernet ports for more high-speed IP camera connections.

Supports Omada SDN for remote and centralized management.

IP65 weatherproof enclosure and 6kV protection ensure all-weather suitability.

Supports Passive PoE for flexible deployment (adapter included).

Long-Distance PtMP & PtP Wi-Fi Transmission, Perfect for Multiple Scenarios

Omada Professional Outdoor Wireless Bridge Solution

Up to 3.1mi (5km) Distance

Ideal for setting up networks in remote locations.

*EAP215-Bridge Kit &

EAP115-Bridge Kit: 3.1mi (5km);

EAP211-Bridge Kit: 0.62mi (1km)

Up to 70^o Beamwidth for Wider Deployment

One central AP covers more distributed APs and cameras, eliminating the need for multiple central APs.

*EAP211-Bridge: 70^o x 70^o beamwidth; EAP215-Bridge & EAP115-Bridge: 35^o x 35^o


Three Ports for More Devices

Connect more cameras and devices without an extra switch.

IP65 Weatherproof for Outdoor Use

Durable performance with IP65 rating and operating range of -40^oF to 158^oF (-40^oC to 70^oC).

Standalone or Omada SDN Mode

Flexible dual modes for batch deployment and remote management via the Omada app or Web UI.HARDWARE FEATURES
Interface
3x 10/100 Mbps Ethernet Ports
Button
Reset
Power Supply
12V DC / 24V Passive PoE (Passive PoE adapter included.)
Max. Power Consumption
6.5W
Antenna
Internal 2x2 Dual-polarized directional MIMO antennas 5 GHz: 11.0 dBi
Horizontal:35^o, Vertical: 35^o
Weatherproof Enclosure
IP65
Mounting
Pole mounting (Accessories included)WIRELESS FEATURES
Coverage
5000m(16400ft)
Wireless Standards
IEEE 802.11 a/b/g/n
Frequency
5 GHz
Signal Rate
5 GHz: Up to 300 Mbps
Wireless Functions
Mesh
Load Balance
Beamforming
Airtime Fairness
Seamless Roaming(802.11r)
Multiple SSIDs:8
Wireless Statistics
Wireless Schedule
Reboot Schedule
RADIUS Accounting
MAC Authentication
Static IP/Dynamic IP
Wireless Security
VLAN
Access Control
Rogue AP Detection
Captive Portal Authentication
Maximum number of MAC Filter: 4,000
WPA-Personal/Enterprise, WPA2-Personal/Enterprise
Transmission Power
CE:
<23dBm (5 GHz, band 1/2, EIRP)
<30dBm (5 GHz band3, EIRP)
FCC:
<22dBm (5 GHz band1/4)Management Features
Omada App
Yes
Restore and Backup
Yes
Firmware update via Web
Yes
NTP
Yes
Centralized Management
Omada Hardware Controller (OC300)
Omada Hardware Controller (OC200)
Omada Software Controller
Omada Cloud-Based Controller
Cloud Access
Yes. Require the use of OC300, OC200, the Omada Software Controller, or Omada Cloud-Based Controller.
LED ON/OFF Control
Yes
Management MAC Access Control
Yes
SNMP
v1, v2c, v3
SSH
Yes
Web-based Management
YesOTHERS
Certification
CE, FCC, RoHS
Package Content
EAP115-Bridge KIT
Passive PoE Adapter
Power Cord
Installation Guide
Mounting Kit
Environment
Operating Temperature: -40 ^oC-70 ^oC (-40 ^oF-158 ^oF)
Storage Temperature: -40 ^oC-70 ^oC (-40 ^oF-158 ^oF)
Operating Humidity: 10%-90% non-condensing
Storage Humidity: 5%-90% non-condensingItem Dimension (L"xW"xH")
11 x 10 x 4

Weight
4 lbs

Warranty Information
2-year
