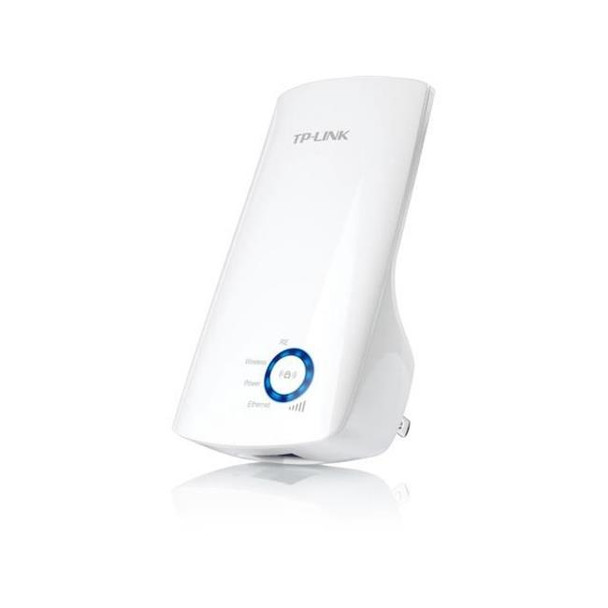

TP-Link RE105 - IEEE 802.11n 300 Mbit/s Wireless Range Extender

This item is brand-new, factory sealed.

300Mbps Wi-Fi Range Extender


Boosts your existing Wi-Fi coverage to deliver fast and reliable wired and wireless connectivity

External antennas for faster and more reliable Wi-Fi

Supports AP mode which creates a new Wi-Fi Access point

Easily expand wireless coverage at a push of the Range Extender button

Set the Power Schedule for the range extender for power-saving

Works with Any Wi-Fi Router


Compact. Strong.

Despite its compact size, it may be hard to ignore the RE105 due to the truly impressive way that it projects Wi-Fi access into the areas of your home that your standard router simply cannot reach. The RE105 supports wireless speeds of up to 300Mbps and keeps all of your favorite devices running as fast as possible.


As Powerful As You Expect

The two external antennas with MIMO technology help set the RE105 apart from the rest. MIMO technology enhances your network by dramatically increasing wireless speeds and the two external antennas ensure that a stable wireless signal reaches you where you need it most.


Effortless Network Expansion

Two Simple Taps and You are Ready to Connect

Just press the WPS button on your router, then press the Range Extender button on RE105 to begin enjoying simple, expanded Wi-Fi. HARDWARE FEATURES
Plug Type
EU, UK, US Interface
1 x 10/100M Ethernet Port (RJ45) Button
WPS Button, Reset Button Power Consumption
3.6W Antenna
2 x external WIRELESS FEATURES
Wireless Standards
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b Frequency
2.4 to 2.4835GHz Signal Rate
11n: Up to 300Mbps (dynamic)
11g: Up to 54Mbps (dynamic)
11b: Up to 11Mbps (dynamic) Reception Sensitivity
270M: less than -68dBm at 10% PER
130M: less than -68dBm at 10% PER
108M: less than -68dBm at 10% PER
54M: less than -68dBm at 10% PER
11M: less than -68dBm at 8% PER
6M: less than -68dBm at 10% PER
1M: less than -68dBm at 8% PER Transmit Power
less than 20 dBm (EIRP) Wireless Modes
Range Extender/Access Point Wireless Functions
Wireless MAC Address Filtering
Domain Login Function
Transmit Power Control Wireless Security
64/128/152-bit WEP
WPA-PSK / WPA2-PSK OTHERS
Certification
CE, RoHS Package Contents
300Mbps Wi-Fi Range Extender RE105
Quick Installation Guide System Requirements
Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, 8, 8.1, 10, Mac OS, NetWare, UNIX or Linux. Environment
Operating Temperature: 0^oC to 40^oC (32^oF to 104^oF)
Storage Temperature: -40^oC to 70^oC (-40^oF to 158^oF)
Operating Humidity: 10% to 90% non-condensing
Storage Humidity: 5% to 90% non-condensingItem Dimension (L inchxW inchxH inch)
7 x 4 x 4

Weight
1.00 lb

Warranty Information
2-year

Package Contents:

• RE105 Wireless Range Extender
• Quick Installation Guide
