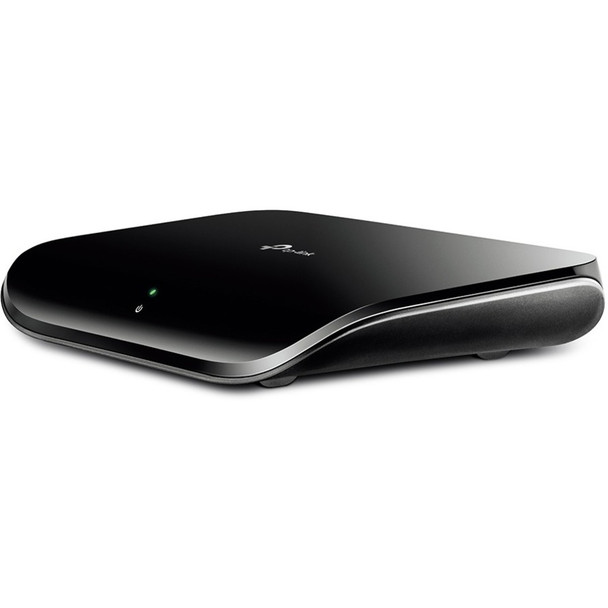

Tp-Link TL-SG1005D 5-port Unmanaged Gigabit Switch - 5 Port - 5 x 10/100/1000Base-T
- SKU:
- 18141157
- MPN:
- tl-sg1005d
- Availability:
- Usually ships the same or next business day. In stock at our TX warehouse.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 05/02/2024 05:10:58 AM PST
Bulk discount rates
Below are the available bulk discount rates for each individual item when you purchase a certain amount
Buy 2 | and pay only $26.88 each 26.88 |
Buy 3 | and pay only $24.46 each 24.46 |
Buy 4 | and pay only $23.61 each 23.61 |
Buy 5 - 9 | and pay only $23.01 each 23.01 |
Buy 10 or above | and pay only $21.22 each 21.22 |
- Stock Update:
- 05/02/2024 05:10:58 AM PST
Description
This item is brand-new, factory sealed.
Specifications
- Mfr Part Number: TL-SG1005D
- Features:
- Innovative energy-efficient technology saves power up to 85%
- Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
- Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput
- 10Gbps Switching Capacity
- 15K Jumbo frame improves performance of large data transfers
- Auto-MDI/MDIX eliminates the need for crossover cables
- Supports MAC address auto-learning and auto-aging
- Auto-negotiation ports provide smart integration between 10Mbps, 100Mbps and 1000Mbps hardware
- Fanless design ensures quiet operation
- Desktop or wall-mounting design
- Plug and Play design simplifies installation
- Hardware Features:
- Interface: 5x 10/100/1000Mbps RJ45 Ports; AUTO Negotiation, Auto MDI/ MDIX
- Fan Quantity: Fanless
- Power Consumption: Maximum - 3W (220V/50Hz)
- External Power Supply: 100-240VAC, 50/60Hz
- Dimensions (WxDxH ): 5.5 x 3.5 x 0.9 inch / 140.0 x 88.0 x 23.0 mm
- Software Features:
- Transmission Method: Store and Forward
- Advanced Functions:
- Green Technology, Saving power up to 85%
- 802.3X Flow Control, Back Pressure
- Others:
- Certification: FCC, CE, RoHs
- System Requirements: Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 8/7, MAC OS, NetWare, UNIX or Linux
- Package Contents:
- 5-Port Gigabit Desktop Switch TL-SG1005D
- Power Adapter
- Installation Guide
- Environment:
- Operating Temperature: 0C~40C (32F~104F)
- Storage Temperature: -40C~70C (-40F~158F)
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing
Features
Package Contents:
- TL-SG1005D 5-port Unmanaged Gigabit Switch
- Power Adapter
- Installation Guide
Additional Information:
Transfer Method:
- Store-and-Forward
Specs
Management & Protocols | |
Manageable | No |
Power Description | |
Power Source | Power Adapter |
Power Consumption | 2.40 W |
Physical Characteristics | |
Product Material | Plastic |
Form Factor |
|
Height | 0.9" |
Width | 5.5" |
Depth | 3.5" |
Interfaces/Ports | |
Network (RJ-45) | Yes |
Port/Expansion Slot Details | 5 x Gigabit Ethernet Network |
Total Number of Network Ports | 5 |
Number of Network (RJ-45) Ports | 5 |
General Information | |
Brand Name | TP-Link |
Manufacturer Website Address | http://www.tp-link.com/us |
Marketing Information | The TL-SG1005D 5-port Gigabit Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 1000Mbps network. Increase the speed of your network server and backbone connections, or make Gigabit to the desktop a reality. More from the Manufacturer |
Product Type | Ethernet Switch |
Product Name | TL-SG1005D 5-port Unmanaged Gigabit Switch |
Manufacturer | TP-LINK Technologies Co., Ltd |
Manufacturer Part Number | TL-SG1005D |
Product Model | TL-SG1005D |
Media & Performance | |
Ethernet Technology | Gigabit Ethernet |
Media Type Supported | Twisted Pair |
Network Technology | 10/100/1000Base-T |
Network & Communication | |
Layer Supported | 2 |
Networking Standards |
|
