tp-link

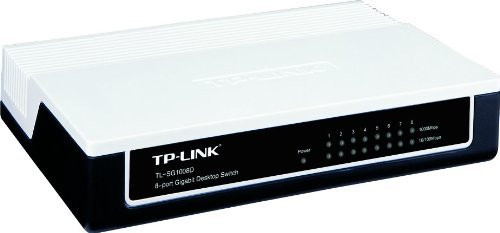

TP-LINK TL-SG1008D - 8 Port Gigabit Ethernet Network Switch
(No reviews yet)
Write a Review
- SKU:
- 18061647
- MPN:
- tl-sg1008d
- Availability:
- Usually ships the same or next business day. In stock at our CA, IL, NJ warehouses.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 12/12/2025 04:40:41 PM PST
Bulk discount rates
Below are the available bulk discount rates for each individual item when you purchase a certain amount
| Buy 2 | and pay only $33.42 each 33.42 |
| Buy 3 - 4 | and pay only $30.83 each 30.83 |
| Buy 5 - 9 | and pay only $28.49 each 28.49 |
| Buy 10 - 39 | and pay only $27.32 each 27.32 |
| Buy 40 or above | and pay only $26.31 each 26.31 |
- Stock Update:
- 12/12/2025 04:40:41 PM PST
Description
This item is brand-new, factory sealed.
Specifications
- Mfr Part Number: TL-SG1008D
- Features:
- Innovative energy-efficient technology saves power up to 80%
- Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
- Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput
- 16Gbps Switching Capacity
- 15KByte Jumbo frame improves performance of large data transfers
- Auto-MDI/MDIX eliminates the need for crossover cables
- Supports MAC address auto-learning and auto-aging
- Auto-negotiation ports provide smart integration between 10Mbps, 100Mbps and 1000Mbps hardware
- Fanless design ensures quiet operation
- Desktop or wall-mounting design
- Plug and Play design simplifies installation
- Hardware Features:
- Standards and Protocols: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
- Interface: 8x 10/100/1000Mbps RJ45 Ports; AUTO Negotiation, Auto MDI/ MDIX
- Fan Quantity: Fanless
- Power Consumption: Maximum - 4.63W (220V/50Hz)
- External Power Supply: 100-240VAC, 50/60Hz
- Buffer Size: 2Mbit
- Jumbo Frame: 15 KB
- Switching Capacity: 16 Gbps
- Dimensions (WxDxH ): 7.1 x 3.5 x 1.0 inch / 180.0 x 90.0 x 25.5 mm
- Software Features:
- Transmission Method: Store and Forward
- MAC Address Table: 8K
- Advanced Functions:
- Green Technology, Saving power up to 80%
- 802.3X Flow Control, Back Pressure
- Others:
- Certification: FCC, CE, RoHs
- Package Contents:
- 8-Port Gigabit Desktop Switch TL-SG1008D
- Power Adapter
- Installation Guide
- Environment:
- Operating Temperature: 0C~40C (32F~104F)
- Storage Temperature: -40C~70C (-40F~158F)
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing
Features
Additional Information:
Yes
Transfer Method:
- Store-and-Forward
Environmentally Friendly:
Yes
Specs
| Management & Protocols | |
| Manageable | No |
| Power Description | |
| Power Source | Power Adapter |
| Power Consumption | 4.60 W |
| Physical Characteristics | |
| Form Factor |
|
| Height | 1" |
| Width | 7.1" |
| Depth | 3.5" |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Port/Expansion Slot Details | 8 x Gigabit Ethernet Network |
| Total Number of Network Ports | 8 |
| Number of Network (RJ-45) Ports | 8 |
| General Information | |
| Brand Name | TP-Link |
| Manufacturer Website Address | http://www.tp-link.com/us |
| Marketing Information | The TL-SG1008D 8-port Gigabit Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 1000Mbps network. Increase the speed of your network server and backbone connections, or make Gigabit to the desktop a reality. More from the Manufacturer |
| Product Type | Ethernet Switch |
| Product Name | TL-SG1008D 8-port Unmanaged Gigabit Switch |
| Manufacturer | TP-LINK Technologies Co., Ltd |
| Manufacturer Part Number | TL-SG1008D |
| Product Model | TL-SG1008D |
| Media & Performance | |
| Ethernet Technology | Gigabit Ethernet |
| Media Type Supported | Twisted Pair |
| Network Technology | 10/100/1000Base-T |
| Network & Communication | |
| Layer Supported | 2 |
| Networking Standards |
|
Warranty Information
All Items are Brand New, Factory Sealed and come with a standard warranty. [Read our policies]
