TRENDnet 5-Port Industrial Gigabit PoE+ Switch, Wide Temperature Range -20° - 65°C [-4° - 149°F], DIN-Rail Switch, 50-55V DC, 4 x Gigabit PoE+ Ports, 1 x Gigabit SFP Slot, TI-PGM541,
- SKU:
- 20067186
- MPN:
- ti-pgm541
- Availability:
- Usually ships the same or next business day. In stock at our FL warehouse.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 10/18/2026 12:52:31 AM PST
Bulk discount rates
Below are the available bulk discount rates for each individual item when you purchase a certain amount
| Buy 2 or above | and pay only $119.05 each 119.05 |
- Stock Update:
- 10/18/2026 12:52:31 AM PST
Description
This item is brand-new, factory sealed.

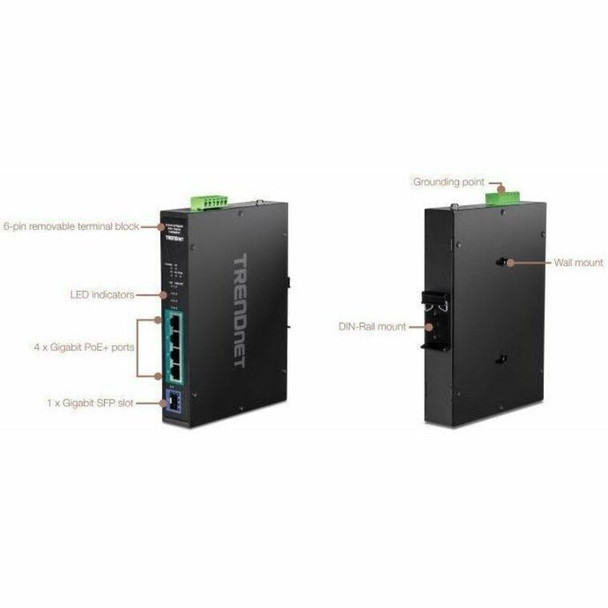

- DEVICE INTERFACE: 4 x Gigabit PoE+ Ports; 1 Gigabit SFP Slot; 6-Pin Removable Terminal Block; DIN-Rail Mount; LED Indicators; Wall Mount; Grounding Point
- POE+ POWER & SWITCHING CAPACITY: The industrial PoE+ switch is equipped with 10Gbps switching capacity, and a 120W @56V DC PoE power budget supplies up to four Power over Ethernet devices with PoE+ power.
- DIN-RAIL & WALL MOUNT KIT: This 5-Port Gigabit PoE+ switch comes with an integrated DIN-Rail mount and mounting hardware brackets.
- WIDE TEMPERATURE SWITCH: The metal hardened IP30 rated DIN-Rail Gigabit PoE+ switch is equipped with a rugged IP30 rated enclosure and designed to withstand a wide temperature range 20° - 65°C (-4° - 149°F) for harsh environments.
- REDUNDANT POWER: The 5-port network switch has dual redundant power inputs with overload current protection (powersupply sold separately: models:TI-S12048 / 48VDC3000)
- ALARM RELAY: The DIN-Rail switch alarm output is triggered by power failure of primary and/or redundant power
- TRENDnet LIFETIME PROTECTION: The TI-PGM541 Industrial Gigabit PoE+ Switch comes with Lifetime TRENDnet Manufacturer Protection.
- NDAA / TAA compliant (U.S. and Canada only)

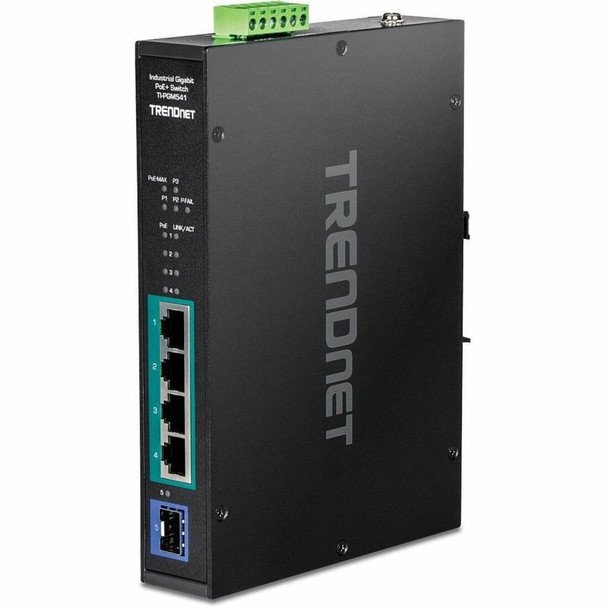

TRENDnet's 5-Port Industrial Gigabit PoE+ DIN-Rail Switch -20° - 65°C (-4° - 149°F), model TI-PGM541, has four gigabit PoE+ ports with a 120W PoE power budget, plus one gigabit SFP slot for long distance fiber applications. Users are able to connect four PoE+ devices to the switch, while still providing one gigabit SFP slot for an additional network connection. This switch is equipped with an IP30 rated metal enclosure, designed to operate within a wide temperature range of -20° - 65°C (-4° - 149°F) for harsh, industrial environments.
PoE Power
A 120W PoE+ power budget supplies up to four Power over Ethernet devices with PoE+ power.
Fault Tolerance
Features redundant power inputs with overload current protection and output alarm relay.
Industrial Hardened Design
Rugged IP30 rated housing is designed to operate within a wide temperature range of -20° - 65°C (-4° - 149°F).
NETWORKING SOLUTION | FEATURES | Full PoE+ Power Budget
Supplies up to 30W of PoE/PoE+ power per port with a 120W PoE power budget
Switching Capacity
10Gbps switching capacity
Jumbo Frame
Sends larger packets, or Jumbo Frames (up to 9KB), for increased performance
Network Ports
4 x Gigabit PoE+ ports and 1 x Gigabit SFP slot
Redundant Power
Redundant power inputs with overload current protection (power supply sold separately, models: TI-S24048, 48VDC3000)
Wide Operating Temperature
Rated for an operating temperature range of -20° - 65°C (-4° - 149°F)
DIN-Rail/Wall Mounts
IP30 rated metal enclosure with included DIN-Rail and wall-mount hardware
Alarm Relay
Alarm relay triggered by power failure of primary and/or redundant power
Grounding Point
Grounding point protects equipment from external electrical surges
Package Contents:
- 5-port Industrial Gigabit PoE+ DIN-Rail Switch -20° - 65°C (-4° - 149°F)
- Quick Installation Guide
- Removable Terminal Block
- DIN-Rail and Wall-mount Hardware
Features
- 5-port Industrial Gigabit PoE+ DIN-Rail Switch -20° - 65°C (-4° - 149°F)
- Quick Installation Guide
- Removable Terminal Block
- DIN-Rail and Wall-mount Hardware
TAA Compliant:
Yes
Country of Origin:
Taiwan
Specs
| Power Description | |
| Plug/Connector Type | Terminal Block |
| Power Source | AC/DC |
| PoE Budget | 120 W |
| Frequency |
|
| PoE (RJ-45) Port | Yes |
| Power Consumption | 5 W |
| Physical Characteristics | |
| Product Material | Metal |
| Form Factor |
|
| Weight (Approximate) | 1.47 lb |
| Height | 1.1" |
| Width | 5.1" |
| Depth | 7.1" |
| Warranty | |
| Limited Warranty | Lifetime |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Port/Expansion Slot Details |
|
| Total Number of Network Ports | 5 |
| I/O Expansions | |
| Total Number of Expansion Slots | 1 |
| Number of SFP Slots | 1 |
| Expansion Slot Type | SFP (mini-GBIC) |
| General Information | |
| Brand Name | TRENDnet |
| Manufacturer Website Address | http://www.trendnet.com |
| Marketing Information | TRENDnet's 5-Port Industrial Gigabit PoE+ DIN-Rail Switch -20° - 65°C (-4° - 149°F), model TI-PGM541, has four gigabit PoE+ ports with a 120W PoE power budget, plus one gigabit SFP slot for long distance fiber applications. Users are able to connect four PoE+ devices to the switch, while still providing one gigabit SFP slot for an additional network connection. This switch is equipped with an IP30 rated metal enclosure, designed to operate within a wide temperature range of -20° - 65°C (-4° - 149°F) for harsh, industrial environments. DEVICE INTERFACE: 4 x Gigabit PoE+ Ports; 1 Gigabit SFP Slot; 6-Pin Removable Terminal Block; DIN-Rail Mount; LED Indicators; Wall Mount; Grounding Point LIFETIME PROTECTION -We stand by the quality of our products. The TI-PGM541 5-Port Industrial Gigabit PoE+ Switch is secured with Lifetime Manufacturer Protection from TRENDnet. (U.S. and Canada Only) NDAA + TAA COMPLIANT: With our NDAA and TAA compliant network switches, you can plan and install networking solutions that Government customers demand today (U.S. and Canada Only) POE+ POWER & SWITCHING CAPACITY: The industrial PoE+ switch is equipped with 10Gbps switching capacity, and a 120W @56V DC PoE power budget supplies up to four Power over Ethernet devices with PoE+ power. REDUNDANT POWER: The 5-port network switch has dual redundant power inputs with overload current protection (powersupply sold separately: models:TI-S15052/TI-S24052, TI-S12048) WIDE TEMPERATURE SWITCH: The metal hardened IP30 rated DIN-Rail Gigabit PoE+ switch is equipped with a rugged IP30 rated enclosure and designed to withstand a wide temperature range 20° - 65°C (-4° - 149°F) for harsh environments. DIN-RAIL & WALL MOUNT KIT: This 5-Port Gigabit PoE+ switch comes with an integrated DIN-Rail mount and mounting hardware brackets. ALARM RELAY: The DIN-Rail switch alarm output is triggered by power failure of primary and/or redundant power More from the Manufacturer |
| Product Type | Ethernet Switch |
| Product Name | 5-port Industrial Gigabit PoE+ DIN-Rail Switch -20° - 65°C (-4° - 149°F) |
| Manufacturer | TRENDnet |
| Manufacturer Part Number | TI-PGM541 |
| Product Model | TI-PGM541 |
| Media & Performance | |
| Ethernet Technology | Gigabit Ethernet |
| Media Type Supported |
|
| Network Technology |
|
| Network & Communication | |
| Layer Supported | 2 |
| Networking Standards |
|
