Trendnet
TRENDnet 500Mbps Compact Powerline AV Adapter Kit - 1 x Network (RJ-45) - 62.50 MBps Powerline - 984 ft Distance Supported - HomePlug AV - Fast Ethernet TPL406E2K
(No reviews yet)
Write a Review
- SKU:
- 18145580
- MPN:
- tpl-406e2k
- Availability:
- Out of stock
- Stock Update:
- 10/23/2023 10:48:05 AM PST
- Stock Update:
- 10/23/2023 10:48:05 AM PST
Description
This item is brand-new, factory sealed.
Specifications
- Mfr Part Number: TPL-406E2K
- Features:
- Includes two TPL-406E adapters
- High speed networking over an existing electrical system
- Adapters automatically connect using an encrypted Powerline signal
- One-touch Sync button changes encryption keys
- Share data intensive files, play games, download music and more at faster data transfer rates
- Advanced 128-bit AES encryption to ensure total network security
- Support for IPv6
- Supports up to 16 IGMP based IPTV streams
- Power Save mode reduces electrical consumption by up to 80%
- Neighbor network support for up to 4 overlapping networks
- Network signal transmits up to 300 meters (984 ft.)
- Auto QoS support through traffic classification and multiple priority queuing
- Optional management utility compatible with Windows 7 (32/64-bit), Vista (32/64-bit), and XP (32/64-bit) operating systems
- Standards: IEEE 1901, HomePlug AV, IEEE 802.3, IEEE 802.3x, IEEE 802.3u
- Interface:
- 1x 10/100Mbps Auto-MDIX RJ45 Port
- Power Prong: North America Type B (NEMA 5-15)
- Frequency Band: 2 ~ 68 MHz
- Modulation: OFDM Symbol Modulation on link synchronization, 1024/ 256/ 64/ 8 - QAM, QPSK, BPSK, ROBO Carrier
- Protocols: TDMA and CSMA/CA
- Speed:
- Powerline: Up to 500 Mbps
- Ethernet: Up to 200 Mbps (Full Duplex mode)
- Utility OS Compatibility: Windows 7 (32/64-bit), Vista (32/64-bit), XP (32/64-bit)
- Nodes: Up to 8 (max)
- Overlapping Powerline Networks: Up to 4 (per electrical system)
- Coverage: Up to 300 m (984 ft)
- Security: 128-Bit AES (Advanced Encryption Standard)

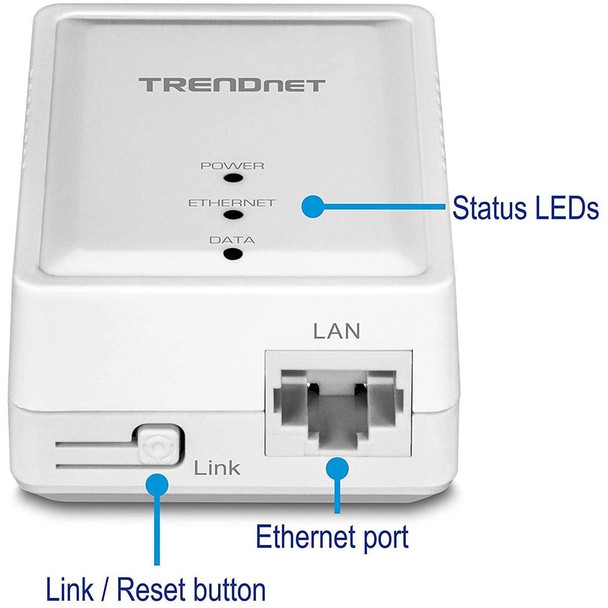

- LED:
- Power (PWR)
- Powerline (PL) Connection: Best (Green), Better (Amber), Good (Red), No Connection (Off)
- Ethernet (ETH) Connection: Solid, Blinking, Off
- Buttons: Sync (3 sec.) / Reset (20 sec.)
- Power Source: 100 ~ 240V AC, 50 ~ 60Hz
- Consumption:
- Active Mode: 2.2 Watts (max)
- Standby Mode: 0.5 Watts (max)
- Certifications: CE, FCC
- Dimensions (WxLxH): 1.97 x 2.76 x 1.69 inch / 50.0 x 70.0 x 43.0 mm (per unit)
- Weight: 1.8 oz / 51.0 g (per unit)
- RoHS Compliant
Features
Package Contents:
Yes
China
- 500Mbps Compact Powerline AV Adapter Kit
- Quick Installation Guide
- CD-ROM (Utility & User's Guide)
- 2 x Network Cables (1.5 m / 5 ft)
Certifications & Standards:
- IEEE 1901
- IEEE 802.3
- IEEE 802.3x
- IEEE 802.3u
- CE
- FCC
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Waste Electrical and Electronic Equipment Directive (WEEE)
Country of Origin:
China
Specs
| Wireless Specifications | |
| Wireless LAN | No |
| Power Description | |
| Input Voltage |
|
| Physical Characteristics | |
| Weight (Approximate) | 12.83 lb |
| Height | 4" |
| Width | 15" |
| Depth | 21" |
| Warranty | |
| Limited Warranty | 3 Year |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 1 |
| General Information | |
| Brand Name | TRENDnet |
| Manufacturer Website Address | http://www.trendnet.com |
| Marketing Information | ADAPTERS: Includes two TPL-406E adapters. Two adapters are needed to start a network. Use up to 8 adapters to network devices in different rooms without running new cabling. EXPAND YOUR NETWORK: Connect one adapter to your router and plug another adapter into an outlet on your electrical system for instant high-speed network access. ETHERNET PORT: The Powerline 500 AV adapters have an Ethernet Port that extends high performance wired connections. Convenient Ethernet port that allows you to hardwire a computer, smart TV, or other network enabled device. QUICK SETUP: Get up and running in minutes with the intuitive guided setup. Simply plug in the TRENDnet powerline Ethernet adapters! The encrypted Powerline signal auto-connects over an existing electrical system. Easy no-CD installation SMALL PROFILE: The compact form factor of the powerline adapter kit stays off the ground by plugging directly into an outlet. NDAA compliant TRENDnet’s Powerline 500 AV Nano Adapter Kit, model TPL-406E2K, uses an electrical outlet to create a high speed network. Two adapters are needed to start a network. Connect one adapter to your router and plug another adapter into an outlet on your electrical system for instant high-speed network access. The compact form factor saves space around crowded electrical outlets. Use up to 8 adapters to network devices in different rooms without running new cabling. Plug In Install Simply plug in TRENDnet adapters! The encrypted Powerline signal auto-connects over an existing electrical system. No Clutter The compact form factor stays off the ground by plugging directly into an outlet. Ethernet Port Ethernet port extends high performance wired connections. PACKAGE CONTENTS - 2 x TPL-406E - Quick Installation Guide - 2 x Network cable (1.5 m / 5 ft.) More from the Manufacturer |
| Product Condition | New |
| Product Type | Powerline Network Adapter |
| Product Name | #N/A |
| Manufacturer | TRENDnet |
| Manufacturer Part Number | TPL-406E2K |
| Product Model | TPL-406E2K |
| Packaged Quantity | 2 |
| Media & Performance | |
| Powerline Data Transfer Rate | 500 Mbit/s |
| Maximum Distance Supported | 984.25 ft |
| Network & Communication | |
| Ethernet Technology | Fast Ethernet |
| Powerline Transmission Standard | HomePlug AV |
| Technical Information | |
| Minimum Operating Frequency | 2 MHz |
| Modulation |
|
| Maximum Operating Frequency | 68 MHz |
Warranty Information
All Items are Brand New, Factory Sealed and come with a standard warranty. [Read our policies]
