TRENDnet 6-Port Industrial Gigabit PoE+ DIN-Rail Switch 12 - 56 V (ti-pg62b)
(No reviews yet)
Write a Review
- SKU:
- 18322286
- MPN:
- ti-pg62b
- Availability:
- Out of stock
- Stock Update:
- 02/14/2025 08:28:14 AM PST
- Stock Update:
- 02/14/2025 08:28:14 AM PST
Description
This item is brand-new, factory sealed.

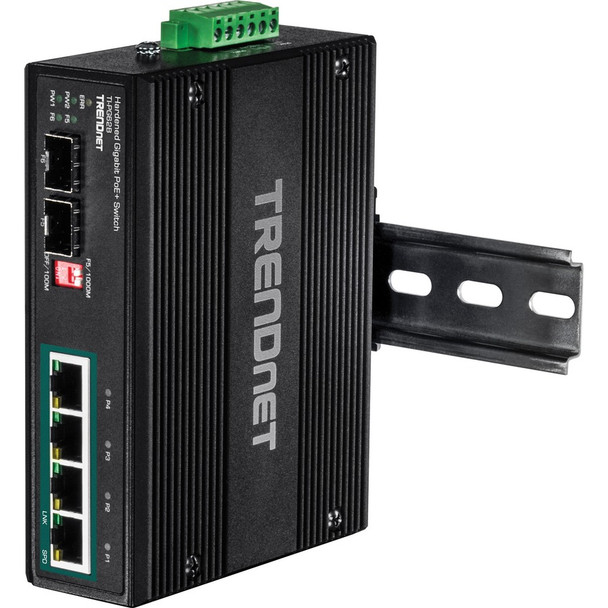

TRENDnet's TI-PG62B is a reliable IP30 unmanaged hardened DIN-rail PoE+ switch with a rugged housing rated for extreme industrial environments. It offers 4 Gigabit PoE+ ports, two dedicated SFP slots and a 12 Gbps switching capacity. Dual redundant 12 - 56 VDC power inputs and a power failure alarm relay.PoE Power
A 60 - 120 W PoE+ power budget supplies up to four Power over Ethernet devices.
Fault Tolerance
Features dual redundant 12 - 56 VDC power inputs with output alarm relay.
Industrial Hardened Design
Equipped with a rugged IP30 rated housing designed to withstand a high degree of vibration, shock, protection against ESD / EMI / surge, and operate within a wide temperature range of -40 - 75° C (-40 - 167° F).
Network Ports
4 x Gigabit PoE+ ports and 2 x dedicated SFP slots
DIN-Rail / Wall Mounts
IP30 rated metal enclosure with included DIN-rail and wall mount hardware
Switching Capacity
12 Gbps switching capacity
Redundant Power
Dual redundant power inputs with overload current protection (power supply sold separately models: (model: TI-S12048)
Alarm Relay
Alarm relay triggered by power failure of primary and/or redundant power
Jumbo Frame
Sends larger packets, or Jumbo Frames (up to 9 KB), for increased performance
Extreme Temperatures
Industrial switch is rated for an operating temperature range of -40 - 75 °C (-40 - 167 °F)
Shock and Vibration Resistant
Rated for shock (EN 60068-2-27), freefall (EN 60068-2-32), and vibration (EN 60068-2-6)
Grounding Point
Grounding point protects equipment from external electrical surges

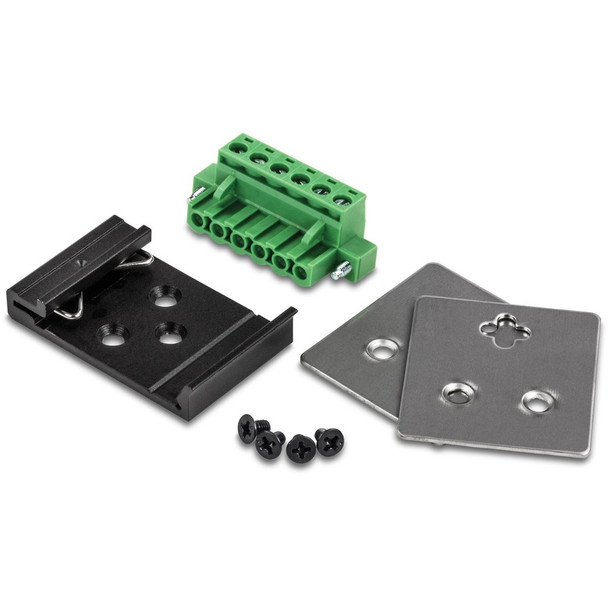

Package Contents:
- 6-Port Industrial Gigabit PoE+ DIN-Rail Switch 12 - 56 V
- Quick Installation Guide
- Removable terminal block
- DIN-rail and wall mount kit
Features
NDAA Compliant:
Yes
Yes
Yes
Taiwan
Yes
Package Contents:
- 6-Port Industrial Gigabit PoE+ DIN-Rail Switch 12 - 56 V
- Quick Installation Guide
- Removable Terminal Block
- DIN-rail and Wall Mount Kit
TAA Compliant:
Yes
Environmentally Friendly:
Yes
Environmental Compliance:
Waste Electrical and Electronic Equipment Directive (WEEE)
Restriction of Hazardous Substances (RoHS)
Country of Origin:
Taiwan
Specs
| Management & Protocols | |
| Manageable | No |
| Physical Characteristics | |
| Form Factor |
|
| Weight (Approximate) | 2.09 lb |
| Length | 5.6" |
| Height | 3" |
| Width | 7" |
| Depth | 9" |
| Warranty | |
| Limited Warranty | Lifetime |
| Interfaces/Ports | |
| Uplink Port | No |
| Stack Port | No |
| Port/Expansion Slot Details |
|
| Total Number of Network Ports | 6 |
| Modular | Yes |
| I/O Expansions | |
| Total Number of Expansion Slots | 2 |
| Shared SFP Slot | No |
| Number of SFP Slots | 2 |
| Expansion Slot Type | SFP |
| General Information | |
| Brand Name | TRENDnet |
| Manufacturer Website Address | http://www.trendnet.com |
| Marketing Information | TRENDnet's 6-Port Industrial Gigabit PoE+ DIN-Rail Switch, model TI-PG62B, is an industrial variable voltage switch with four gigabit PoE+ ports and a 120W PoE power budget. Users are able to connect four PoE+ devices, and two dedicated SFP slots w/12 Gbps switching capacity to this industrial variable voltage PoE+ switch for high-speed connectivity to the network. The industrial variable voltage PoE+ switch is equipped with a rugged IP30 rated metal enclosure, and designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° - 75° C (-40° - 167° F) for industrial environments. Dual 12 - 55V DC power inputs on the industrial variable voltage switch provide redundancy with power failure alarm relay. DEVICE INTERFACE: 4 x Gigabit PoE+ Ports; 2 x 100/1000Mbps SFP slots; 6-Pin Removable Terminal Block; LED Indicators; DIN-Rail Mount; Wall Mount; DIP Switch; Grounding Point LIFETIME PROTECTION -We stand by the quality of our products. The TI-PG62B 6-Port Industrial Gigabit PoE+ Solar DIN-Rail Switch is secured with Lifetime Manufacturer Protection from TRENDnet. (U.S. and Canada Only) NDAA + TAA COMPLIANT: With our NDAA and TAA compliant Industrial switches, you can plan and install networking solutions that Government customers demand today (U.S. and Canada Only) POWER SUPPLY SOLD SEPARATELY: Compatible power supplies sold separately, Models: TI-S15052, TI-S24052, TI-S12024, TI-S12048, TI-S24048, TI-M6024 POE+ POWER & SWITCHING CAPACITY: The industrial unmanaged switch is equipped with 12Gbps switching capacity, and a 120W PoE power budget supplies up to four Power over Ethernet devices with PoE+ power. DIN-RAIL & WALL MOUNT KIT: This 6-Port Gigabit PoE+ switch comes with an integrated DIN-Rail mount and wall mounting hardware; REDUNDANT POWER: The 6-port network switch has Dual 12V - 55V DC power inputs with overload current protection SHOCK AND VIBRATION RESISTANT: Rated for shock (EN 60068-2-27), freefall (EN 60068-2-32), and vibration (EN 60068-2-6) SOLAR READY SWITCH: Ideal for solar power with an power input voltage of 12V-55V. (Converter NOT included) EXTREME TEMPERATURE SWITCH: The IP30 rated switch is designed to withstand high degree of vibration, shock, protection against ESD/EMI/surge, and operate with a wide temperature range (- 40 - 75 °C (- 40 - 167 °F)) for harsh environments. More from the Manufacturer |
| Product Condition | New |
| Product Type | Ethernet Switch |
| Product Name | 6-Port Industrial Gigabit PoE+ DIN-Rail Switch 12 - 56 V |
| Manufacturer | TRENDnet |
| Manufacturer Part Number | TIPG62B |
| Product Model | TI-PG62B |
| Media & Performance | |
| Ethernet Technology | Gigabit Ethernet |
| Media Type Supported |
|
| Network Technology |
|
| Network & Communication | |
| Layer Supported | 2 |
